Excavators

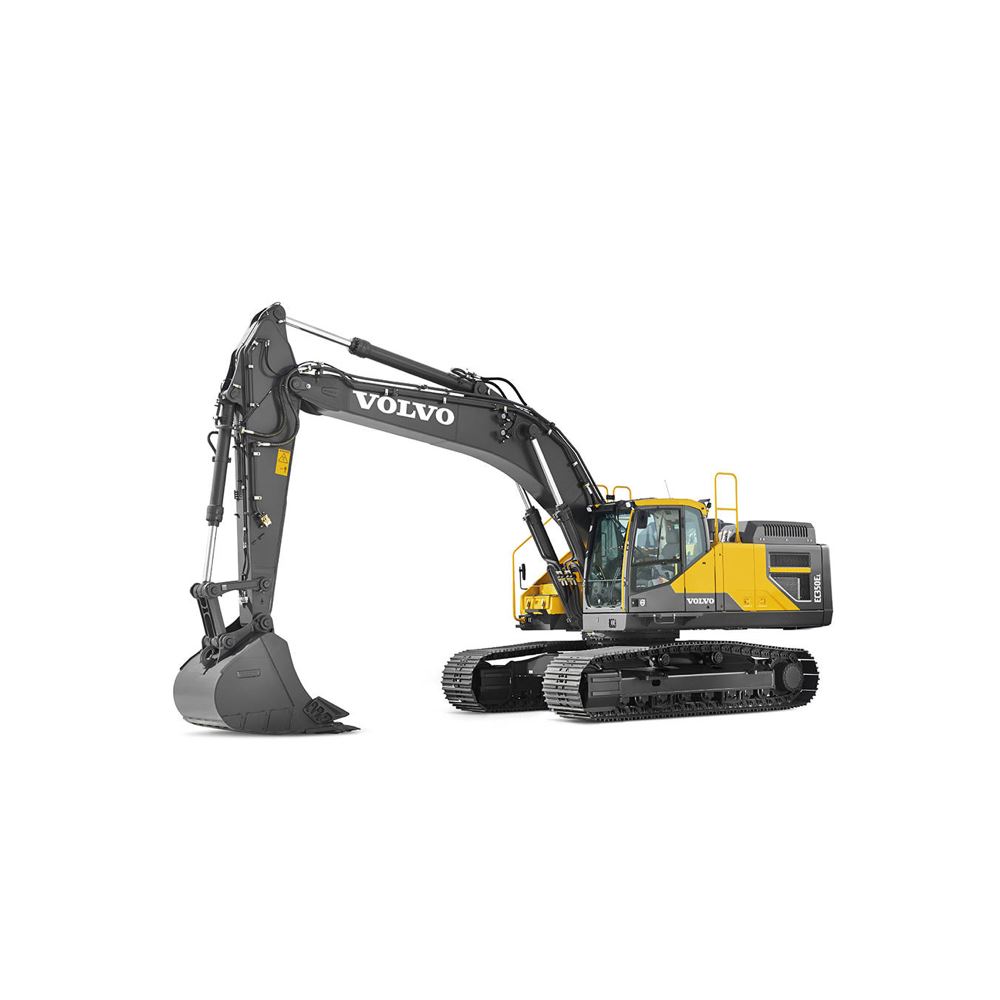

Volvo EC350E
The new EC350E delivers up to 9% greater fuel efficiency and features a robust D13 Tier 4 Final engine, new electro-hydraulic control system and Volvos unique ECO mode.
Features and Benefits
Volvo EC350E Excavator - BOOST YOUR EFFICIENCY
ActiveCare Direct
Fast cycle times

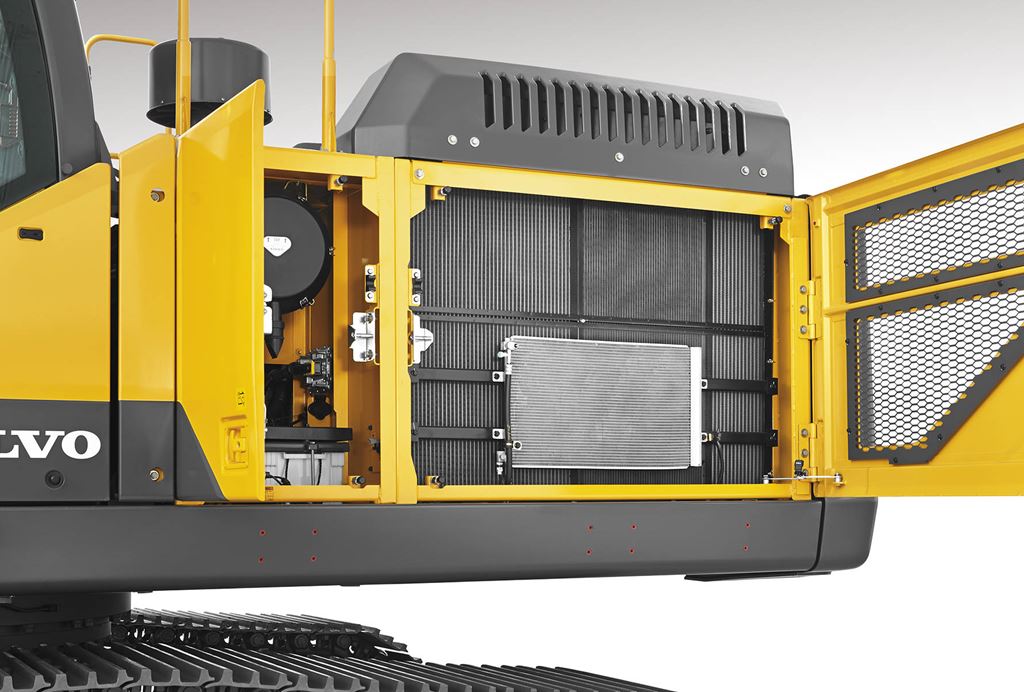

Easy Service Access

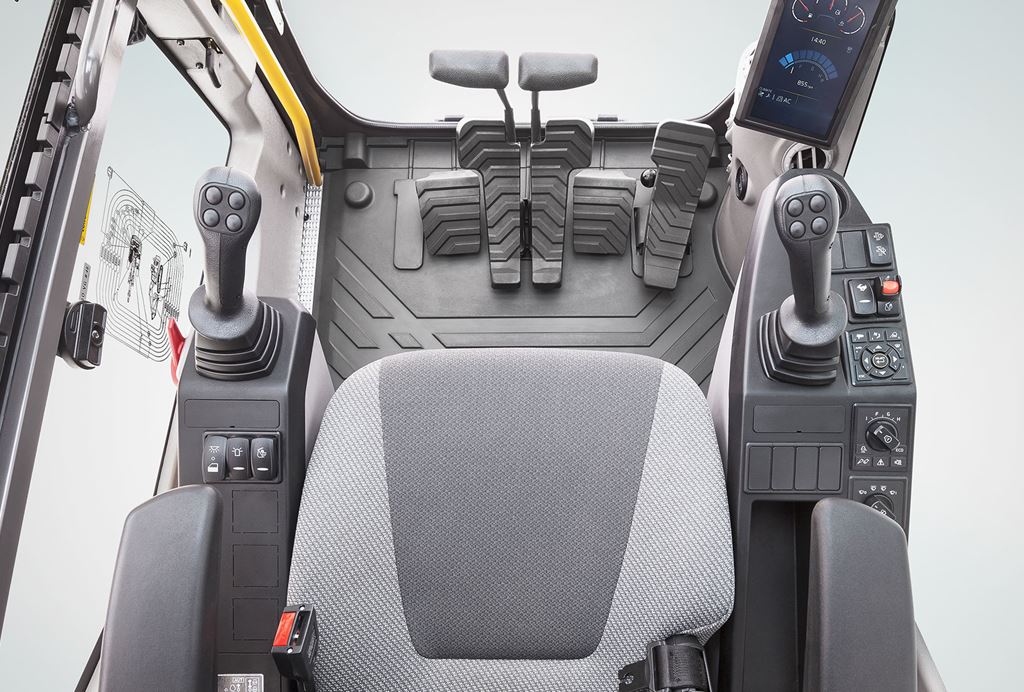

Comfort Cab

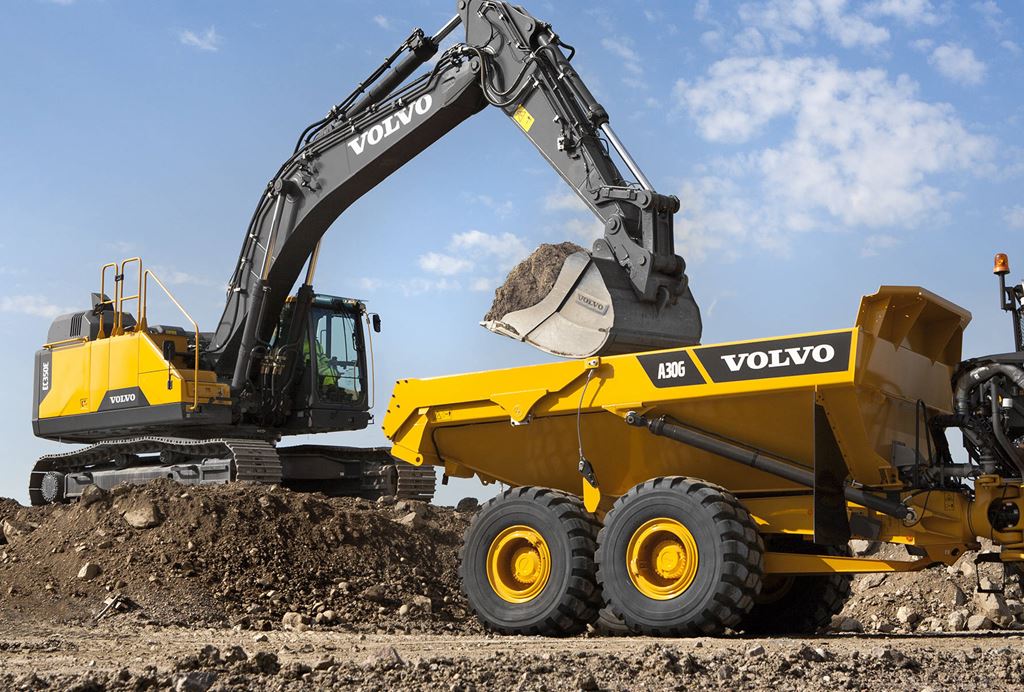

Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
DRIVELINE
| Aspiration | Turbo intercooled |
| Displacement | 781 Inches³ (12.8 ltr) |
| Engine Output - Gross | 303 hp (226 kW) |
| Engine Model | D 13J |
| Rated speed | 1,700 |
| Emission Rating | Tier 4 |
| Number Of Track Rollers - Each Side | 8 |
| Engine Output - Net | 302 hp (225 kW) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Track Shoe Width | 32 inches (800 mm) |
PERFORMANCE
| Dipper Tearout | 40,690 lbf (181 kN) |
| Main Pump | Variable axial piston |
| Total Flow | 158 gallons (US) / min (600 lt/min) |
| Bucket Breakout | 54,560 lbf (242.7 kN) |
| End lift - Max Reach | 17,570 lbs (7970 kg) |
| Ground Bearing Pressure | 7 PSI (51 kPa) |
| Standard Shoe Width | 32 inches (800 mm) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Side lift - Max Reach | 12,040 lbs (5460 kg) |
DIMENSIONS
| Capacity Standard | - |
| Mono Boom - Size | 21 ft 2 in ft/in (6.45 m) |
| Standard Dipper | 10 ft 6 in ft/in (3200 mm) |
| Longest Dipper | 12 ft 10 in ft/in (3900 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | 48 inches (1200 mm) |
| Track Length On Ground | 13 ft 2 in ft/in (4020 mm) |
| Ground Clearance | 20 inches (500 mm) |
| Bucket Weight - Standard | 3,554 lbs (1612 kg) |
| Ground Level Reach - Mono Boom | 36 ft 2 in ft/in (11010 mm) |
| Overall Undercarriage Width | 11 ft 1 in ft/in (3390 mm) |
| Heaped Bucket Capacity - Standard | 2 yd³ (1.42 m³) |
| Dig Depth - Mono Boom | 24 ft 11 in ft/in (7585 mm) |
| Transport Height - Maximum | 12 ft 4 in ft/in (3756 mm) |
| Transport Length Mono Boom | 36 ft 10 in ft/in (11226 mm) |
| Width over fixed tracks | 11 ft 1 in ft/in (3390 mm) |
| Digging Reach - Mono Boom | 36 ft 10 in ft/in (11220 mm) |
| Dump Height - Mono Boom | 23 ft 5 in ft/in (7145 mm) |
| Dig Height - Mono Boom | 34 ft 1 in ft/in (10380 mm) |
| Vertical Wall - Mono Boom | 18 ft 1 in ft/in (5510 mm) |
| Track Gauge - Standard | 8 ft 6 in ft/in (2590 mm) |
DESCRIPTION
| Dipper Length - Standard | 10 ft 6 in ft/in (3200 mm) |
| Telematics Available | Optional |
CAPACITIES
| Hydraulic Tank | 59 gallons (US) (225 ltr) |
| Fuel Tank | 164 gallons (US) (620 ltr) |
WEIGHTS
| Operating Weight | 82,180 lbs (37270 kg) |
