Excavators

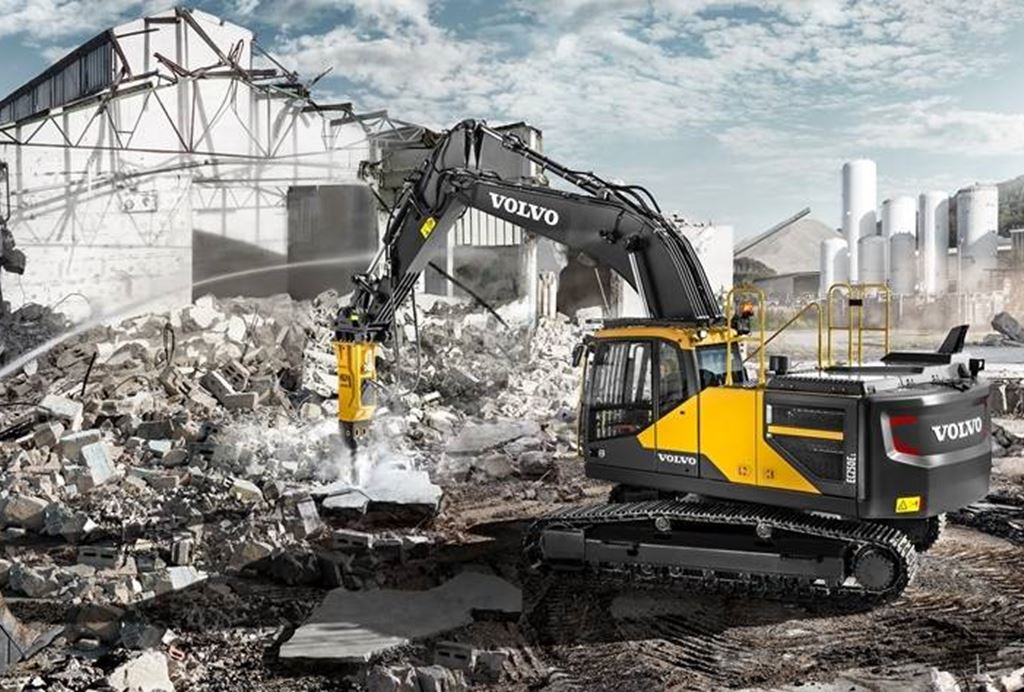

Volvo EC300E
Volvos EC250E/EC300E Tier 4F crawler excavators are powerful and efficient machines designed to reduce fuel consumption and increase your productivity. Benefit from Volvos signature high torque at low rpm and experience superior performance and reduced fuel consumption.
Features and Benefits
Volvo EC300E Excavator -
ActiveCare Direct
Fast cycle times
Easy Service Access

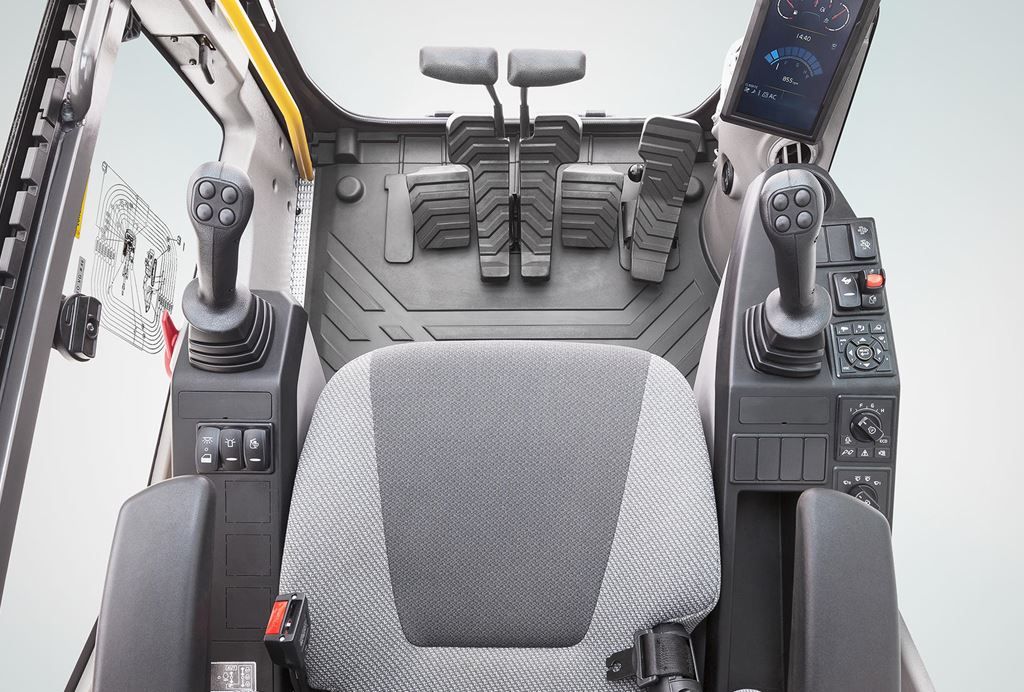

Comfort Cab

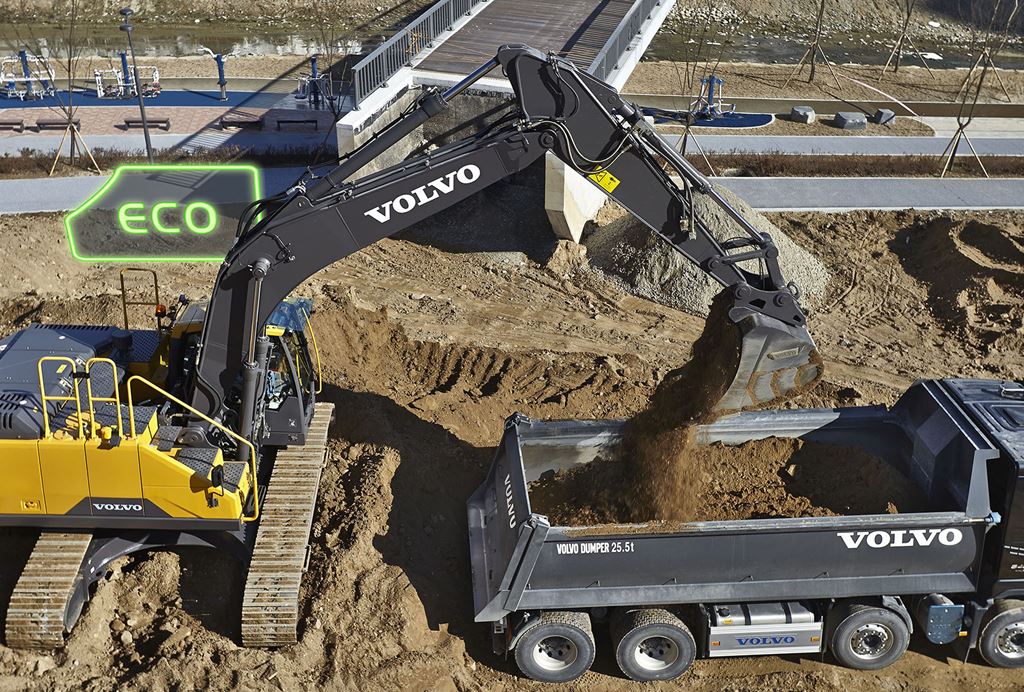

Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
DIMENSIONS
| Capacity Standard | - |
| Mono Boom - Size | 20 ft 4 in ft/in (6.2 m) |
| Standard Dipper | 10 ft 3 in ft/in (3050 mm) |
| Longest Dipper | 12 ft 2 in ft/in (3700 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | 59 inches (1500 mm) |
| Ground Clearance | 19 inches (480 mm) |
| Bucket Weight - Standard | 2,910 lbs (1320 kg) |
| Heaped Bucket Capacity - Standard | 2 yd³ (1.51 m³) |
| Dig Depth - Mono Boom | 24 ft 1 in ft/in (7340 mm) |
| Width over fixed tracks | 11 ft 1 in ft/in (3390 mm) |
| Digging Reach - Mono Boom | 35 ft 2 in ft/in (10710 mm) |
| Track Gauge - Standard | 8 ft 6 in ft/in (2590 mm) |
| Vertical Wall - Mono Boom | 20 ft ft/in (6080 mm) |
| Dig Height - Mono Boom | 32 ft 9 in ft/in (9980 mm) |
| Dump Height - Mono Boom | 23 ft 2 in ft/in (7040 mm) |
| Transport Length Mono Boom | 34 ft 6 in ft/in (10510 mm) |
| Transport Height - Maximum | 11 ft 9 in ft/in (3580 mm) |
| Overall Undercarriage Width | 11 ft 1 in ft/in (3390 mm) |
| Ground Level Reach - Mono Boom | 34 ft 7 in ft/in (10520 mm) |
| Track Length On Ground | 13 ft 3 in ft/in (4015 mm) |
DRIVELINE
| Engine Output - Gross | 241 hp (180 kW) |
| Rated speed | 1,800 |
| Number Of Track Rollers - Each Side | 9 |
| Engine Output - Net | 240 hp (179 kW) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Track Shoe Width | 32 inches (800 mm) |
| Emission Rating | Tier 4 |
| Engine Model | D 8J |
| Displacement | 473 Inches³ (7.8 ltr) |
| Aspiration | Turbo, charge air cooled |
PERFORMANCE
| Total Flow | 138 gallons (US) / min (526 lt/min) |
| Bucket Breakout | 45,970 lbf (205 kN) |
| Ground Bearing Pressure | 7 PSI (44.8 kPa) |
| Side lift - Max Reach | 8,790 lbs (3990 kg) |
| Boom Pressure | 4,840 PSI (333 bar) |
| Standard Shoe Width | 32 inches (800 mm) |
| End lift - Max Reach | 14,280 lbs (6480 kg) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 32,960 lbf (147 kN) |
CAPACITIES
| Fuel Tank | 124 gallons (US) (470 ltr) |
| Hydraulic Tank | 55 gallons (US) (207 ltr) |
WEIGHTS
| Operating Weight | 68,330 lbs (30990 kg) |
DESCRIPTION
| Telematics Available | Yes |
| Dipper Length - Standard | 10 ft ft/in (3050 mm) |
