Excavators

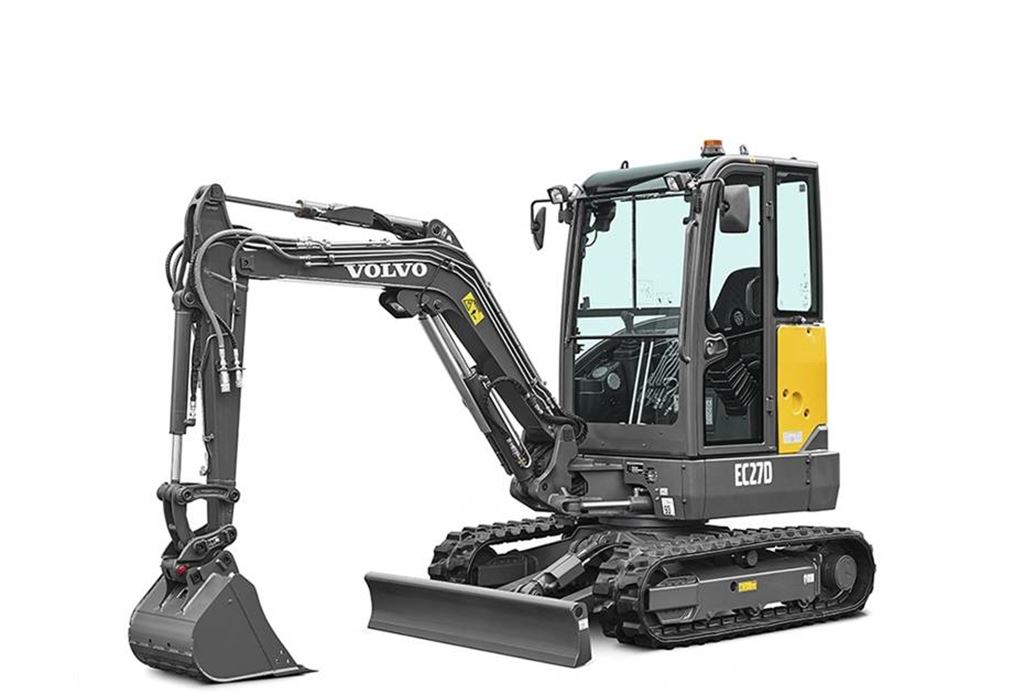

Volvo EC27D
Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging forces, this rock-solid machine can handle a variety of jobs. Combining durability and ease of operation with serviceability and versatility, the EC27D is designed to stretch further, dig deeper, and reach higher.
Features and Benefits
Volvo EC27D Excavator - DO MORE, EVERYWHERE
Lifetime Frame & Structure Guarantee (Frame, Boom & Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | - |
| Track Shoe Width | 12 inches (300 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 21 hp (15.6 kW) |
| Number Of Track Rollers - Each Side | 3 |
| Emission Rating | Tier 4 |
| Rated speed | 2,400 |
| Engine Model | D 1.1A |
| Displacement | 69 Inches³ (1.123 ltr) |
| Aspiration | Naturally Aspirated |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 0 yd³ (0.074 m³) |
| Vertical Wall - Mono Boom | 6 ft 5 in ft/in (1959 mm) |
| Dig Height - Mono Boom | 14 ft 3 in ft/in (4333 mm) |
| Dump Height - Mono Boom | 10 ft 2 in ft/in (3092 mm) |
| Digging Reach - Mono Boom | 14 ft 6 in ft/in (4427 mm) |
| Width over fixed tracks | 5 ft 1 in ft/in (1550 mm) |
| Transport Length Mono Boom | 14 ft 5 in ft/in (4400 mm) |
| Transport Height - Maximum | 8 ft 4 in ft/in (2535 mm) |
| Dig Depth - Mono Boom | 8 ft 2 in ft/in (2486 mm) |
| Overall Undercarriage Width | 5 ft 1 in ft/in (1550 mm) |
| Ground Level Reach - Mono Boom | 14 ft 1 in ft/in (4295 mm) |
| Bucket Weight - Standard | 130 lbs (59 kg) |
| Ground Clearance | 11 inches (290 mm) |
| Track Length On Ground | 4 ft 8 in ft/in (1440 mm) |
| Overall Bucket Width - Standard | 20 inches (500 mm) |
| Zero Tailswing? | Conventional |
| Zero Tailswing | Conventional |
| Longest Dipper | 4 ft 11 in ft/in (1500 mm) |
| Standard Dipper | 3 ft 11 in ft/in (1200 mm) |
| Mono Boom - Size | - |
| Capacity Standard | - |
| Track Gauge - Standard | 4 ft 1 in ft/in (1250 mm) |
WEIGHTS
| Operating Weight | 6,019 lbs (2730 kg) |
PERFORMANCE
| Side lift - Max Reach | 922 lbs (418 kg) |
| Boom Pressure | 3,626 PSI (250 bar) |
| Standard Shoe Width | 12 inches (300 mm) |
| Ground Bearing Pressure | 4 PSI (27.8 kPa) |
| End lift - Max Reach | 1,640 * lbs (744 * kg) |
| Bucket Breakout | 5,528 lbf (24.59 kN) |
| Total Flow | - |
| Main Pump | Variable axial piston |
| Dipper Tearout | 4,060 lbf (18.06 kN) |
CAPACITIES
| Fuel Tank | 7 gallons (US) (28 ltr) |
| Hydraulic Tank | 6 gallons (US) (23 ltr) |
DESCRIPTION
| Telematics Available | Optional |
| Dipper Length - Standard | 3 ft 11 in ft/in (1200 mm) |
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
