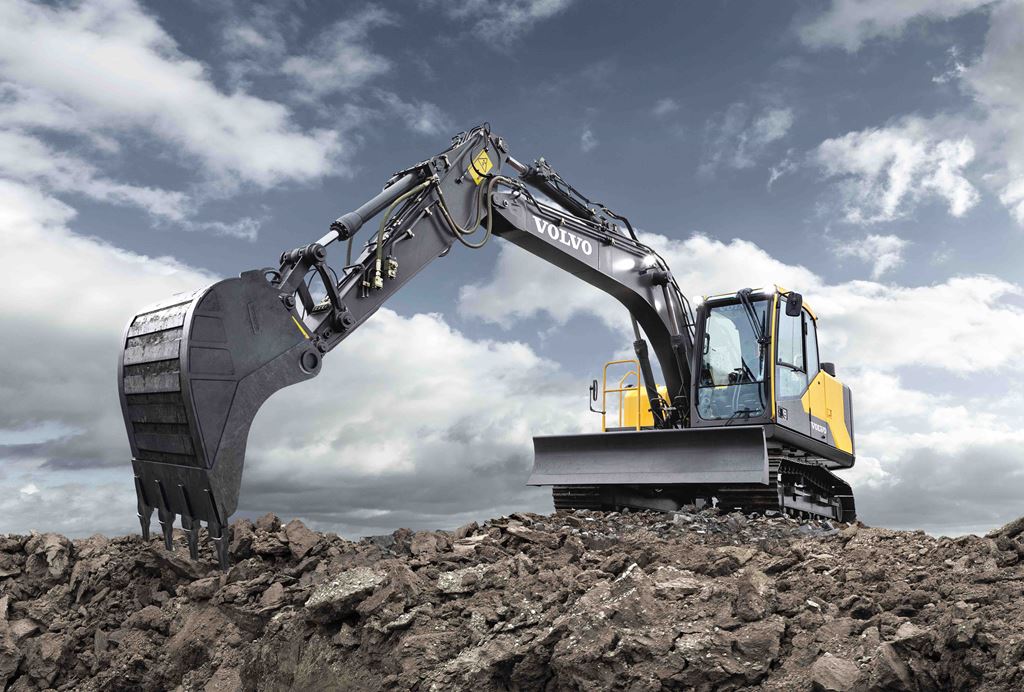

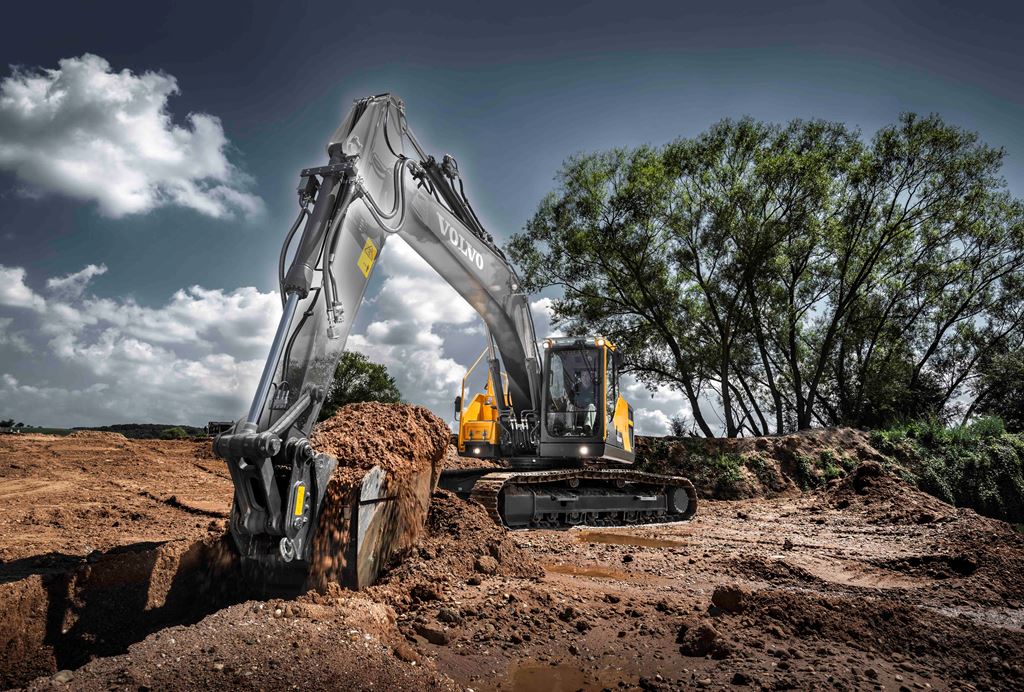

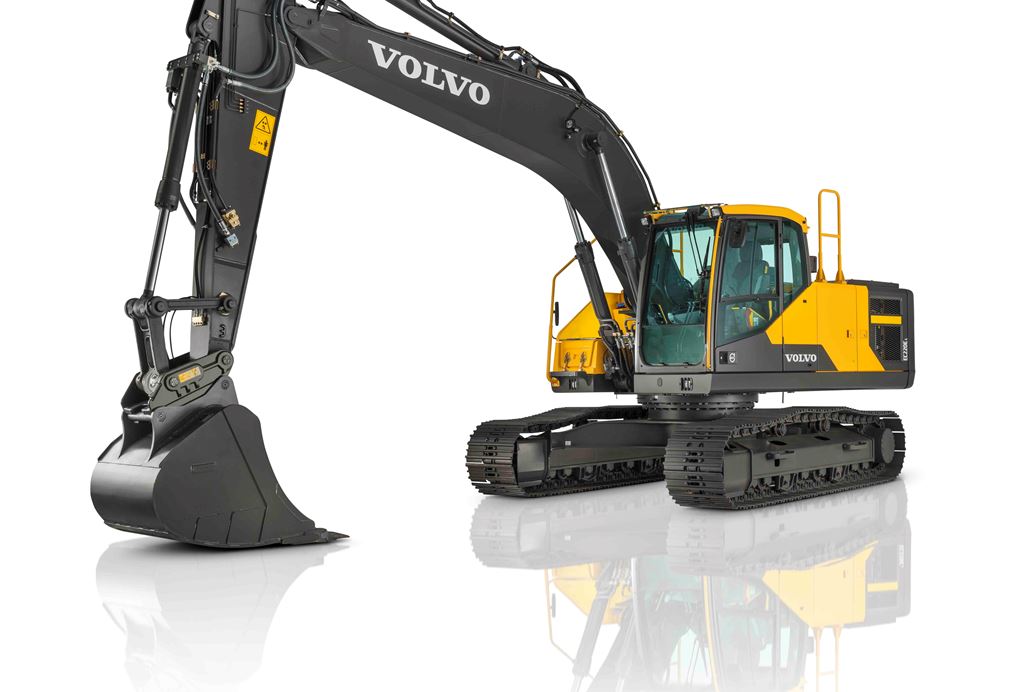

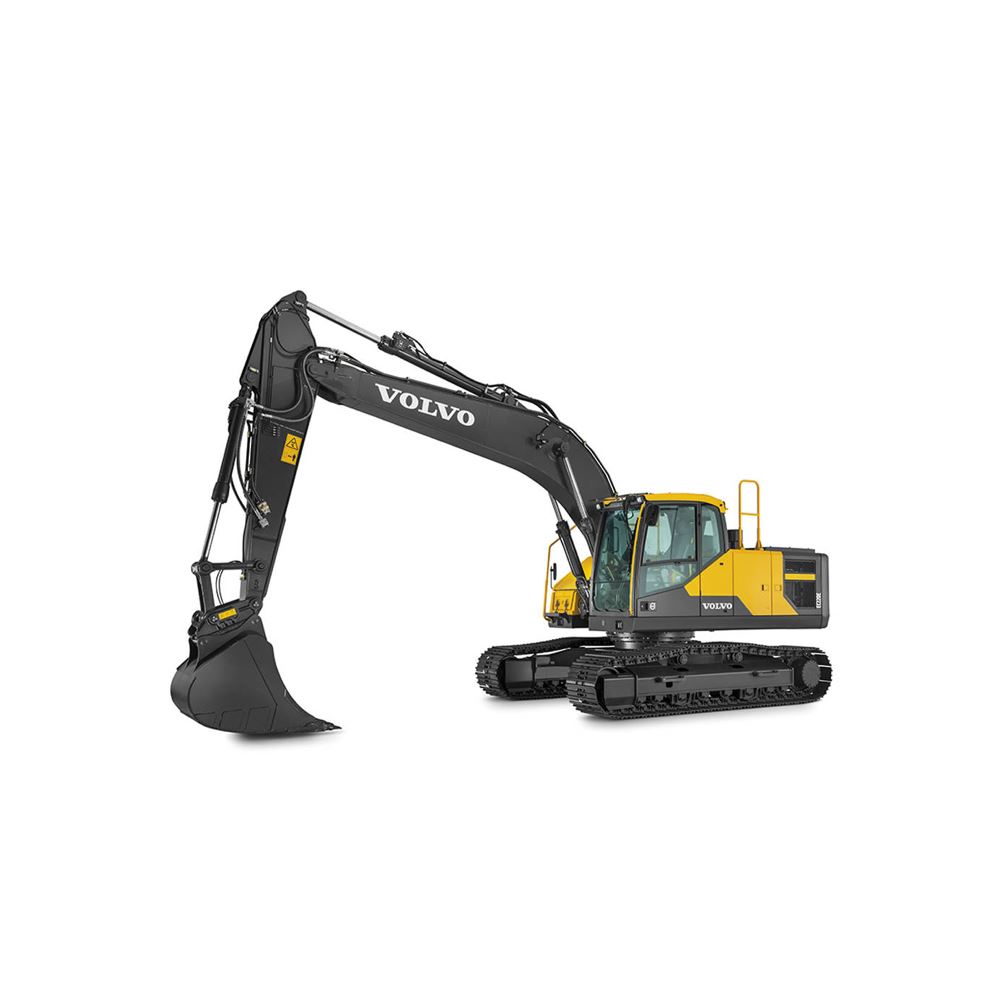

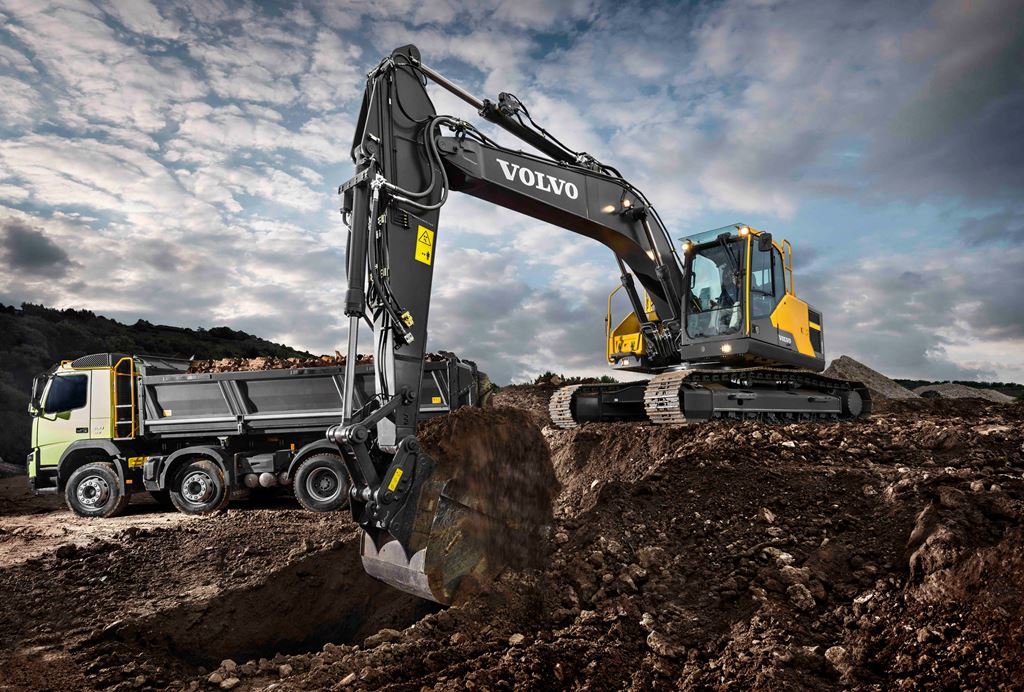

Volvo EC220EL
The EC220E Excavator from Volvo builds on its reputation of efficiency by ensuring all components work together and complement each other. The enhancements deliver the best in class fuel efficiency while not compromising on power – reducing emissions and consumption, while increasing productivity.
Features and Benefits
Volvo EC220EL Excavator - FIRST CHOICE FOR COMFORT
Proven low fuel consumption
World-class Volvo Care Cab
Smooth performance and control
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 173 hp (129 kW) |
| Rated speed | 1,800 |
| Track Shoe Width | 32 inches (800 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 172 hp (128 kW) |
| Number Of Track Rollers - Each Side | 8 |
| Emission Rating | Tier 4 / Stage IV |
| Engine Model | D 6J |
| Displacement | 348 Inches³ (5.7 ltr) |
| Aspiration | Turbo |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 1 yd³ (0.92 m³) |
| Track Gauge - Standard | - |
| Vertical Wall - Mono Boom | 20 ft ft/in (6090 mm) |
| Dig Height - Mono Boom | 31 ft ft/in (9450 mm) |
| Dump Height - Mono Boom | 21 ft 10 in ft/in (6650 mm) |
| Digging Reach - Mono Boom | 32 ft 7 in ft/in (9930 mm) |
| Width over fixed tracks | 10 ft 6 in ft/in (3190 mm) |
| Transport Length Mono Boom | 31 ft 9 in ft/in (9690 mm) |
| Transport Height - Maximum | 10 ft 1 in ft/in (3075 mm) |
| Dig Depth - Mono Boom | 22 ft 1 in ft/in (6730 mm) |
| Overall Undercarriage Width | 10 ft 6 in ft/in (3190 mm) |
| Ground Level Reach - Mono Boom | 32 ft 1 in ft/in (9770 mm) |
| Bucket Weight - Standard | 1,900 lbs (862 kg) |
| Ground Clearance | 18 inches (460 mm) |
| Track Length On Ground | 12 ft ft/in (3660 mm) |
| Overall Bucket Width - Standard | - |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 11 ft 6 in ft/in (3500 mm) |
| Standard Dipper | 9 ft 6 in ft/in (2900 mm) |
| Mono Boom - Size | 18 ft 8 in ft/in (5.7 m) |
| Capacity Standard | - |
WEIGHTS
| Operating Weight | 49,580 lbs (22485 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 7,150 lbs (3200 kg) |
| Boom Pressure | 4,980 PSI (343 bar) |
| Standard Shoe Width | 32 inches (800 mm) |
| Ground Bearing Pressure | 5 PSI (35.3 kPa) |
| End lift - Max Reach | 11,090 lbs (5000 kg) |
| Bucket Breakout | 33,500 lbf (149 kN) |
| Total Flow | 110 gallons (US) / min (414 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 24,730 lbf (110 kN) |
CAPACITIES
| Fuel Tank | 85 gallons (US) (320 ltr) |
| Hydraulic Tank | 37 gallons (US) (140 ltr) |
DESCRIPTION
| Telematics Available | Yes |
| Dipper Length - Standard | 9 ft 6 in ft/in (2900 mm) |
