Excavators

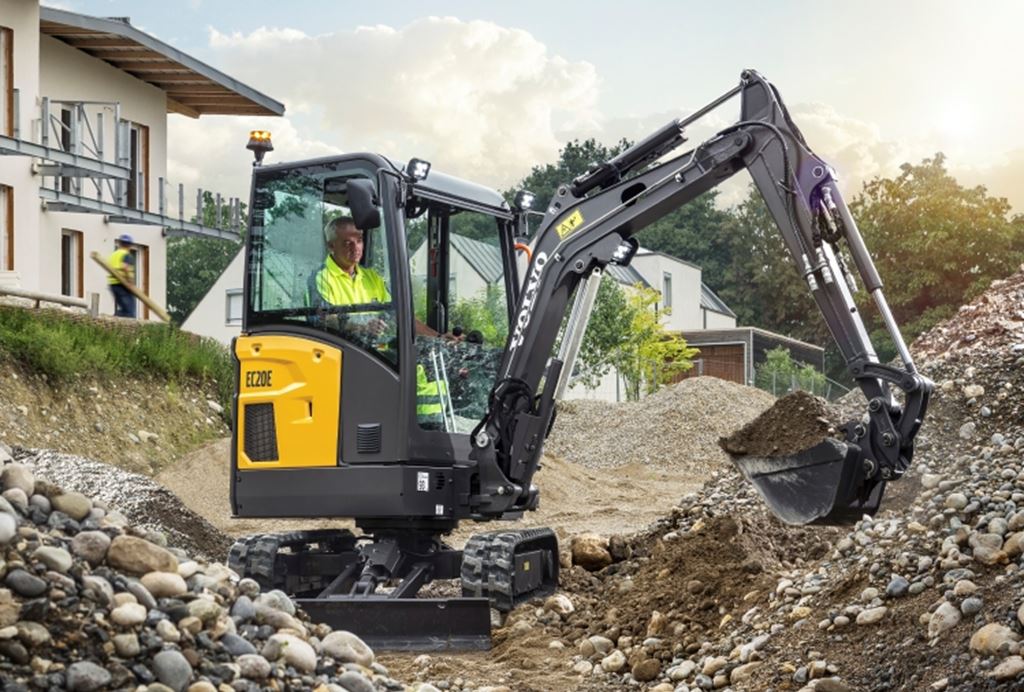

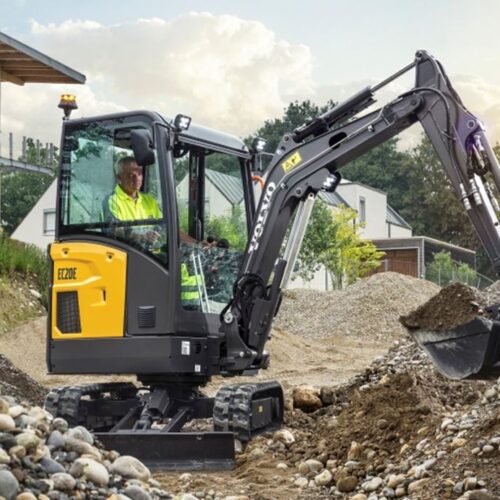

Volvo EC20E
The EC20E compact excavator packs lifting power and stability to handle jobs from backyard landscaping to small utility projects.
Downloads
Features and Benefits
Volvo EC20E Excavator - COMPACT VERSATILITY
Lifetime Frame & Structure Guarantee (Frame, Boom & Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
DRIVELINE
| Aspiration | Naturally Aspirated |
| Displacement | 55 Inches³ (0.898 ltr) |
| Engine Output - Gross | 16 hp (12 kW) |
| Engine Model | D 0.9A |
| Rated speed | 2,300 |
| Emission Rating | Tier 4 |
| Number Of Track Rollers - Each Side | 3 |
| Engine Output - Net | - |
| Track Shoe Width | 9 inches (230 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
PERFORMANCE
| Dipper Tearout | 2,763 lbf (12.29 kN) |
| Main Pump | Variable axial piston |
| Total Flow | 13 gallons (US) / min (48 lt/min) |
| Standard Shoe Width | 9 inches (230 mm) |
| Side lift - Max Reach | 619 lbs (281 kg) |
| Boom Pressure | 3,046 PSI (210 bar) |
| Ground Bearing Pressure | 4 PSI (30.4 kPa) |
| End lift - Max Reach | 1,025 * lbs (465 * kg) |
| Bucket Breakout | 4,107 lbf (18.27 kN) |
DIMENSIONS
| Capacity Standard | - |
| Mono Boom - Size | - |
| Standard Dipper | 3 ft 5 in ft/in (1050 mm) |
| Longest Dipper | 4 ft 5 in ft/in (1350 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | 20 inches (500 mm) |
| Track Length On Ground | - |
| Ground Level Reach - Mono Boom | 13 ft 1 in ft/in (3976 mm) |
| Overall Undercarriage Width | 3 ft 3 in ft/in (995 mm) |
| Heaped Bucket Capacity - Standard | 0 yd³ (0.063 m³) |
| Dig Depth - Mono Boom | 7 ft 6 in ft/in (2279 mm) |
| Track Gauge - Standard | - |
| Vertical Wall - Mono Boom | 5 ft 7 in ft/in (1713 mm) |
| Dig Height - Mono Boom | 12 ft 5 in ft/in (3793 mm) |
| Dump Height - Mono Boom | 9 ft ft/in (2733 mm) |
| Digging Reach - Mono Boom | - |
| Width over fixed tracks | - |
| Transport Length Mono Boom | 13 ft 7 in ft/in (4145 mm) |
| Transport Height - Maximum | 7 ft 8 in ft/in (2334 mm) |
| Bucket Weight - Standard | 106 lbs (48 kg) |
| Ground Clearance | - |
DESCRIPTION
| Dipper Length - Standard | 3 ft 5 in ft/in (1050 mm) |
| Telematics Available | - |
WEIGHTS
| Operating Weight | 4,332 lbs (1965 kg) |
CAPACITIES
| Fuel Tank | 6 gallons (US) (21 ltr) |
| Hydraulic Tank | 4 gallons (US) (15 ltr) |
