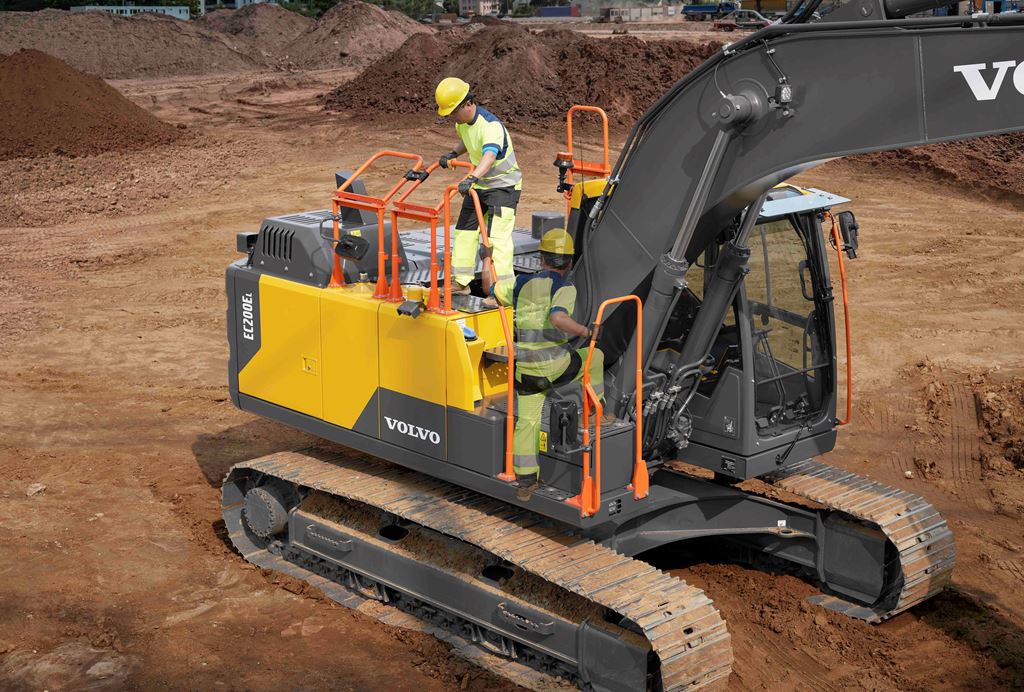

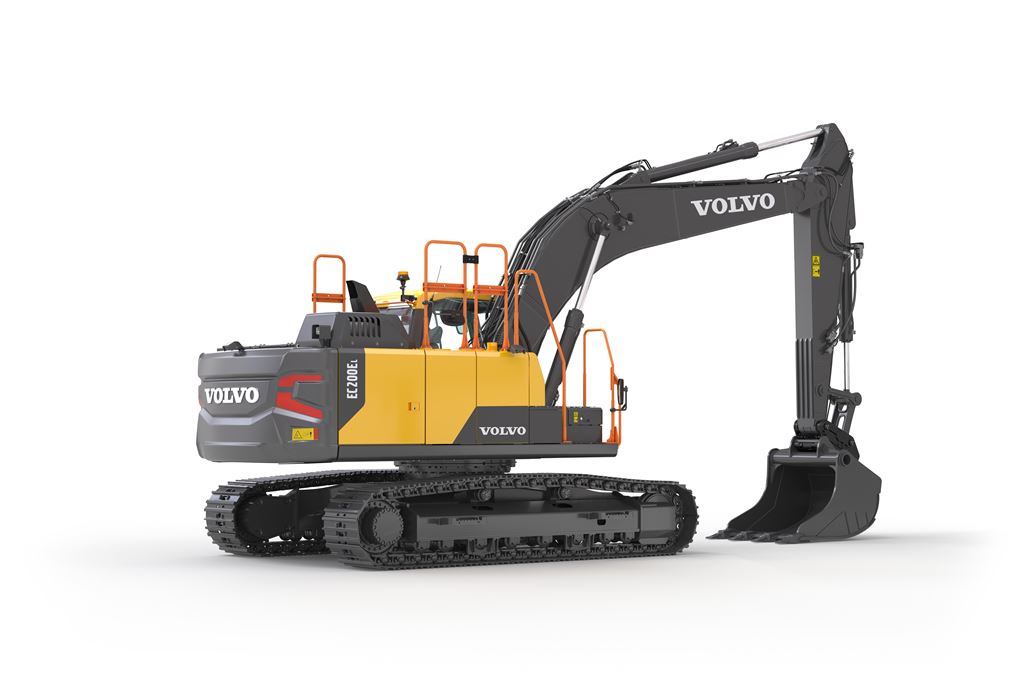

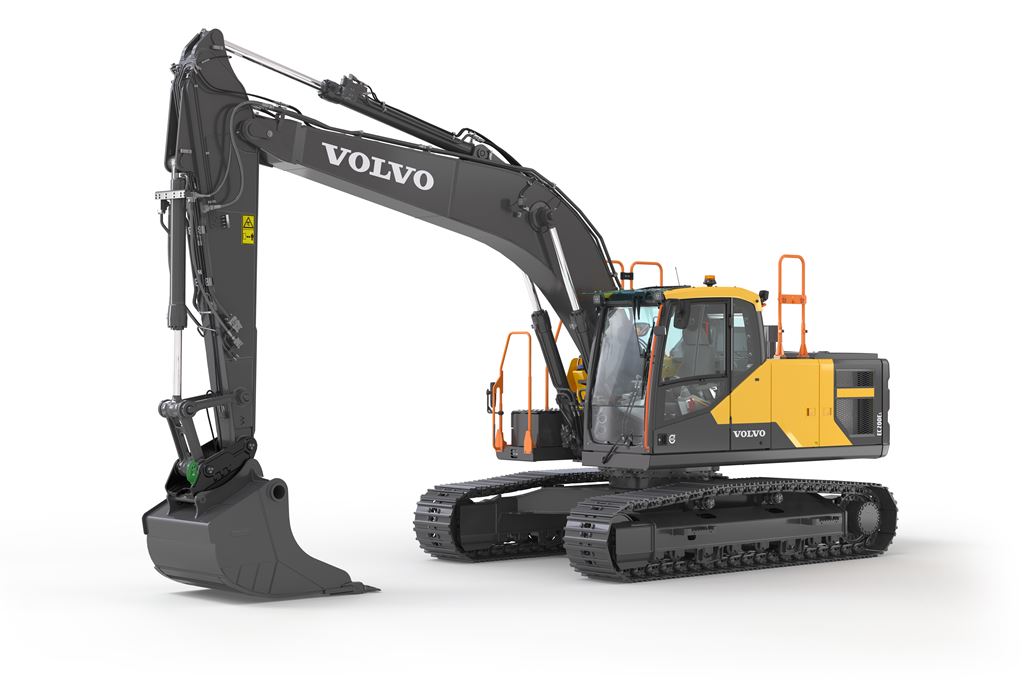

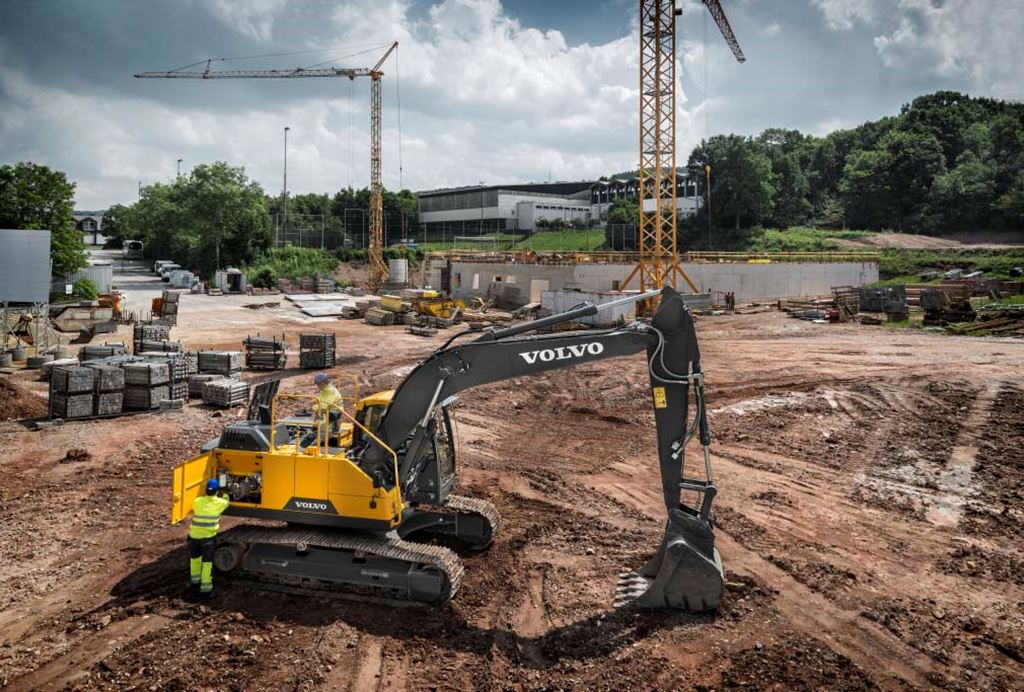

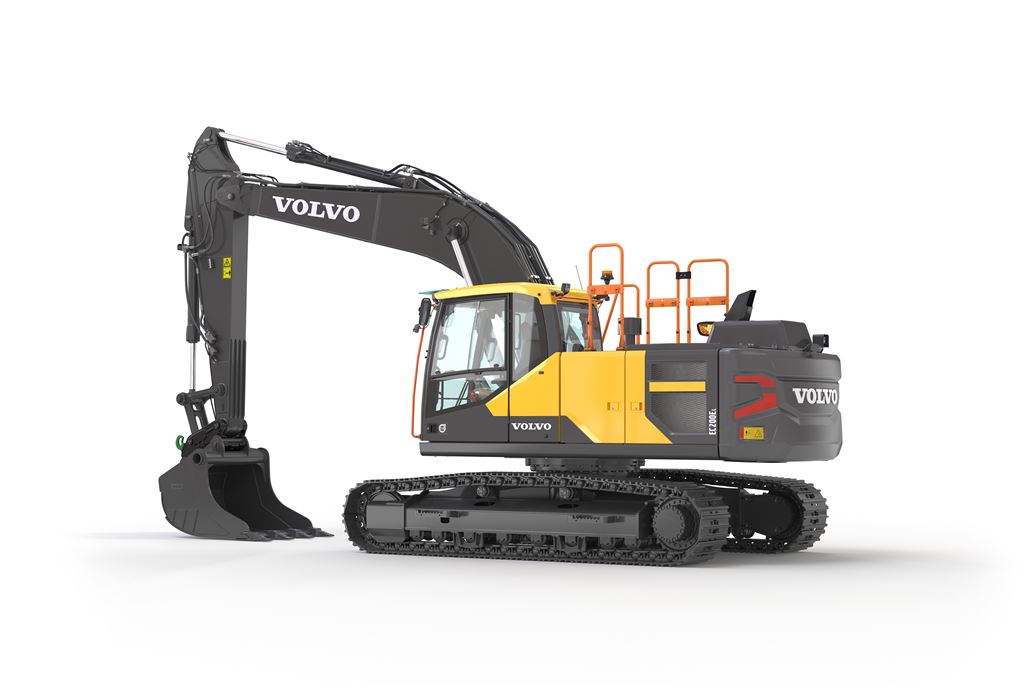

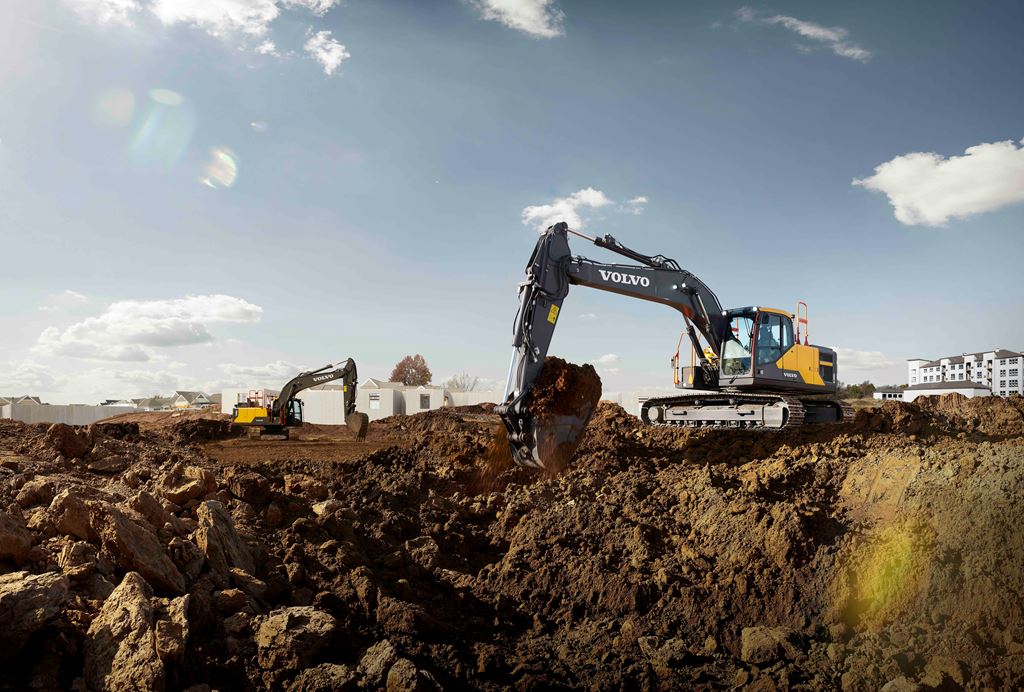

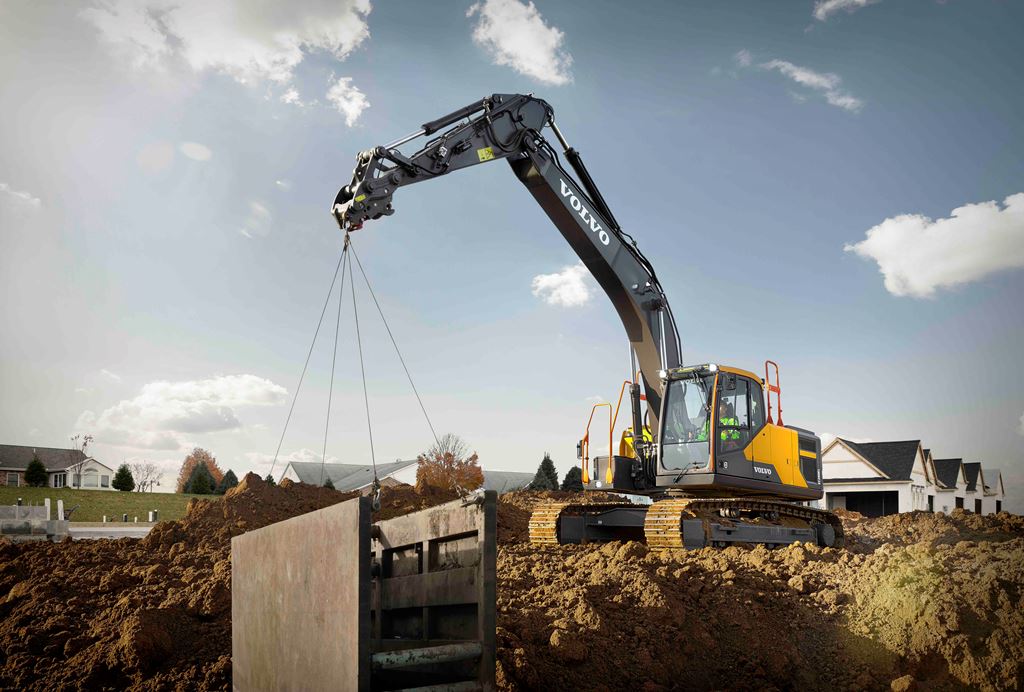

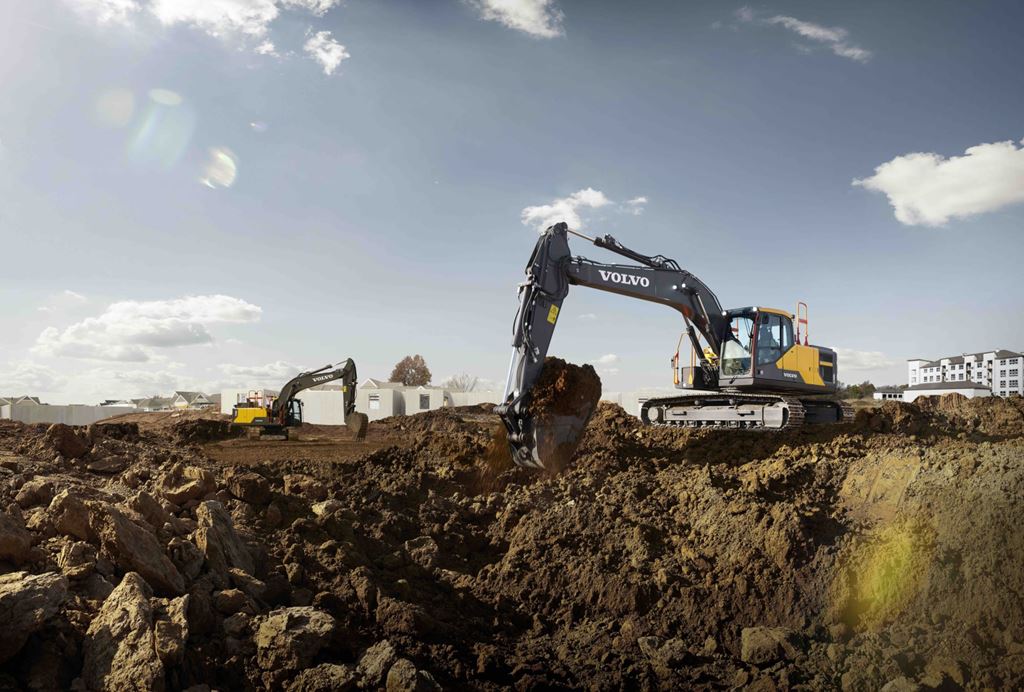

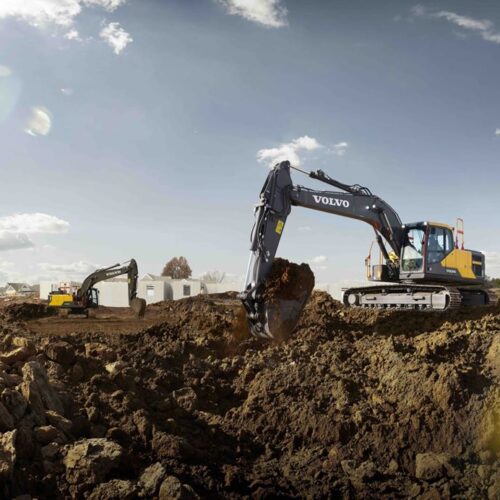

Volvo EC200E
The EC200E is a 20 ton size class excavator, purpose built to deliver outstanding results in medium duty applications. All the reliability and engineering excellence you expect from Volvo is built in to the EC200E and a durable design, long service intervals and easy routine maintenance help maximize uptime and keep your machines on site and working their best. Available with a range of durable Volvo attachments, whether you are working in building, utilities, road construction and more, the EC200E will be the perfect addition to your in-house operation or as part of a rental fleet.
Features and Benefits
Volvo EC200E Excavator - PURPOSE BUILT PERFORMANCE WITH THE EC200E EXCAVATOR
Proven low fuel consumption
World-class Volvo Care Cab
Smooth performance and control
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 154 hp (115 kW) |
| Track Shoe Width | 32 inches (800 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 154 hp (115 kW) |
| Number Of Track Rollers - Each Side | 8 |
| Emission Rating | Tier 4 |
| Rated speed | 2,000 |
| Engine Model | D4J |
| Displacement | 247 Inches³ (4.04 ltr) |
| Aspiration | Turbo, charge air cooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 1 yd³ (0.92 m³) |
| Track Gauge - Standard | 7 ft 10 in ft/in (2390 mm) |
| Vertical Wall - Mono Boom | 18 ft 3 in ft/in (5560 mm) |
| Dig Height - Mono Boom | 31 ft 2 in ft/in (9488 mm) |
| Dump Height - Mono Boom | 21 ft 8 in ft/in (6600 mm) |
| Digging Reach - Mono Boom | 32 ft 9 in ft/in (9993 mm) |
| Width over fixed tracks | 9 ft 10 in ft/in (2990 mm) |
| Transport Length Mono Boom | 31 ft 9 in ft/in (9687 mm) |
| Transport Height - Maximum | 9 ft 8 in ft/in (2950 mm) |
| Dig Depth - Mono Boom | 22 ft 3 in ft/in (6781 mm) |
| Overall Undercarriage Width | 9 ft 10 in ft/in (2990 mm) |
| Ground Level Reach - Mono Boom | 32 ft 3 in ft/in (9829 mm) |
| Bucket Weight - Standard | 1,901 lbs (862 kg) |
| Ground Clearance | 18 inches (460 mm) |
| Track Length On Ground | 12 ft ft/in (3660 mm) |
| Overall Bucket Width - Standard | 41 inches (1050 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 9 ft 6 in ft/in (2900 mm) |
| Standard Dipper | 9 ft 6 in ft/in (2900 mm) |
| Mono Boom - Size | 18 ft 8 in ft/in (5.7 m) |
| Capacity Standard | ISO 7,451 |
WEIGHTS
| Operating Weight | 49,080 lbs (22257 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 6,460 lbs (2930 kg) |
| Boom Pressure | 4,975 PSI (343 bar) |
| Standard Shoe Width | 32 inches (800 mm) |
| Ground Bearing Pressure | 5 PSI (34.3 kPa) |
| End lift - Max Reach | 10,180 lbs (4618 kg) |
| Bucket Breakout | 33,500 lbf (149 kN) |
| Total Flow | 106 gallons (US) / min (400 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 24,730 lbf (110 kN) |
CAPACITIES
| Fuel Tank | 87 gallons (US) (330 ltr) |
| Hydraulic Tank | 37 gallons (US) (140 ltr) |
DESCRIPTION
| Telematics Available | Standard |
| Dipper Length - Standard | 9 ft 6 in ft/in (2900 mm) |
