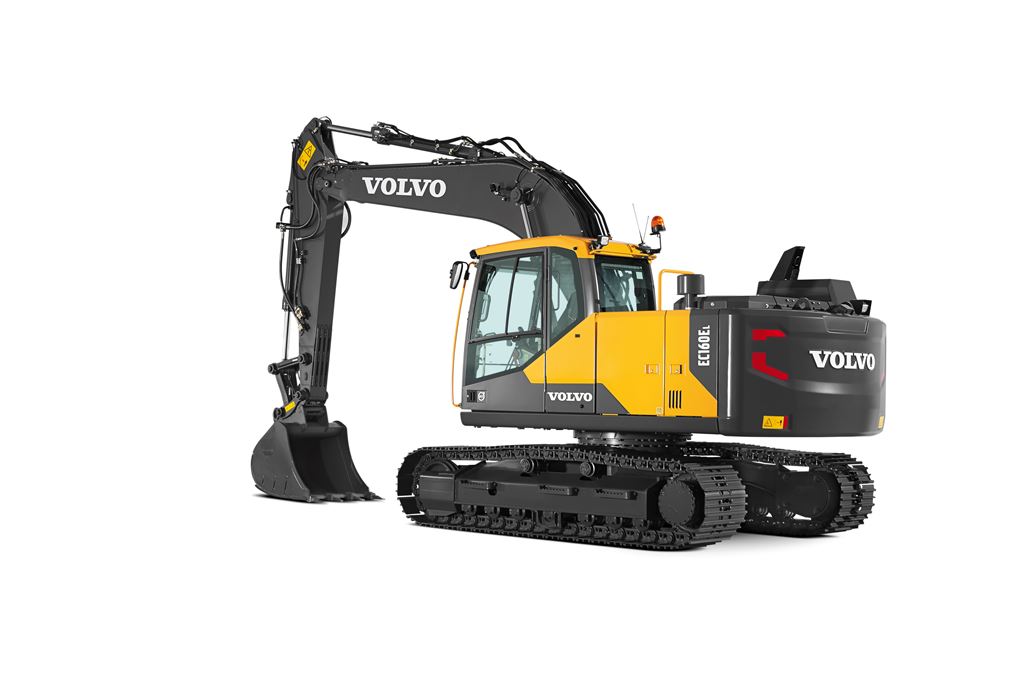

Volvo EC160E
The Volvo EC160E excavator provides a range of new features to ensure efficiency is a key priority. By carefully considering every application and component, a machine has been produced that incorporates maximum uptime while also reducing fuel consumption and cycle times all while delivering elite performance.
Features and Benefits
Volvo EC160E Excavator - Making hard work easy
Volvo D4J Tier 4 Final engine
8% improvement in fuel efficiency
Lifetime warranty on arm, boom and frame
Optional automatic engine shutoff

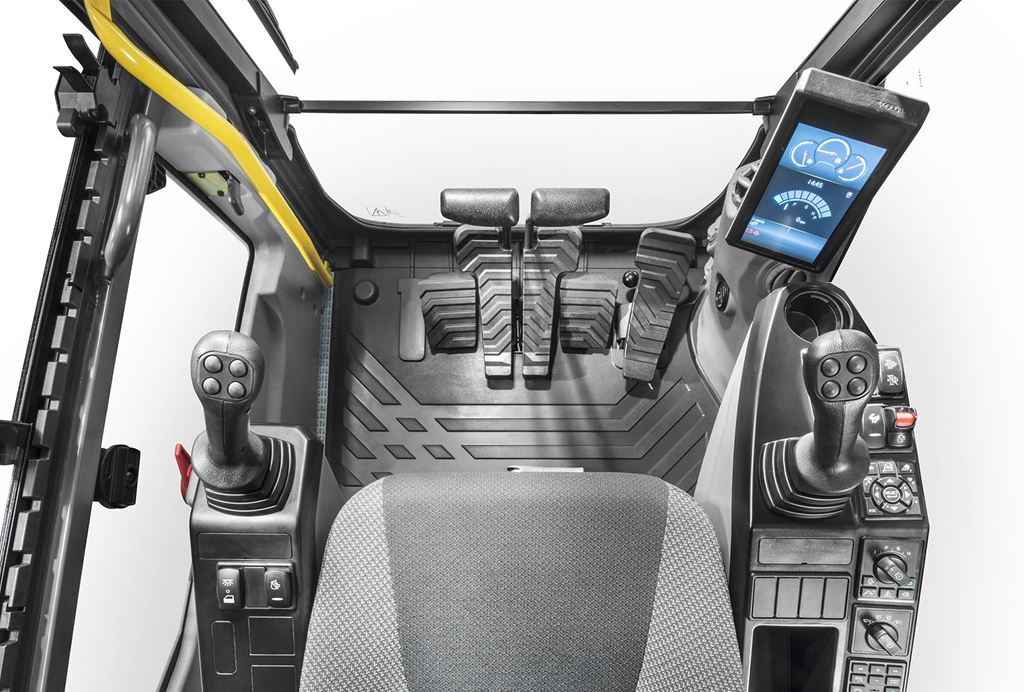

Bluetooth enabled
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
DRIVELINE
| Aspiration | Turbo, charge air cooled |
| Displacement | 247 Inches³ (4.04 ltr) |
| Engine Output - Gross | 148 hp (110 kW) |
| Engine Model | D4J |
| Rated speed | 2,000 |
| Emission Rating | Tier 4 |
| Number Of Track Rollers - Each Side | 7 |
| Engine Output - Net | 146 hp (109 kW) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Track Shoe Width | 24 inches (600 mm) |
PERFORMANCE
| Dipper Tearout | 17,550 lbf (78.1 kN) |
| Main Pump | Variable axial piston |
| Total Flow | 80 gallons (US) / min (304 lt/min) |
| Bucket Breakout | 27,410 lbf (121.9 kN) |
| End lift - Max Reach | 7,480 lbs (3390 kg) |
| Ground Bearing Pressure | 6 PSI (42.2 kPa) |
| Standard Shoe Width | 24 inches (600 mm) |
| Boom Pressure | 4,980 PSI (343 bar) |
| Side lift - Max Reach | 4,660 lbs (2110 kg) |
DIMENSIONS
| Capacity Standard | - |
| Mono Boom - Size | 17 ft 1 in ft/in (5.2 m) |
| Standard Dipper | 9 ft 10 in ft/in (3000 mm) |
| Longest Dipper | 9 ft 10 in ft/in (3000 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | 41 inches (1050 mm) |
| Track Length On Ground | 10 ft 5 in ft/in (3180 mm) |
| Ground Clearance | 18 inches (460 mm) |
| Bucket Weight - Standard | 1,213 lbs (550 kg) |
| Ground Level Reach - Mono Boom | 30 ft 2 in ft/in (9200 mm) |
| Overall Undercarriage Width | 8 ft 6 in ft/in (2590 mm) |
| Heaped Bucket Capacity - Standard | 1 yd³ (0.7 m³) |
| Dig Depth - Mono Boom | 21 ft 3 in ft/in (6470 mm) |
| Transport Height - Maximum | 9 ft 11 in ft/in (3020 mm) |
| Transport Length Mono Boom | 28 ft 11 in ft/in (8810 mm) |
| Width over fixed tracks | 8 ft 6 in ft/in (2590 mm) |
| Digging Reach - Mono Boom | 30 ft 8 in ft/in (9350 mm) |
| Dump Height - Mono Boom | 21 ft 4 in ft/in (6510 mm) |
| Dig Height - Mono Boom | 29 ft 8 in ft/in (9030 mm) |
| Vertical Wall - Mono Boom | 17 ft 9 in ft/in (5410 mm) |
| Track Gauge - Standard | 6 ft 6 in ft/in (1990 mm) |
DESCRIPTION
| Dipper Length - Standard | 9 ft 10 in ft/in (3000 mm) |
| Telematics Available | Yes |
CAPACITIES
| Hydraulic Tank | 29 gallons (US) (110 ltr) |
| Fuel Tank | 66 gallons (US) (250 ltr) |
WEIGHTS
| Operating Weight | 39,530 lbs (17870 kg) |
