Excavators

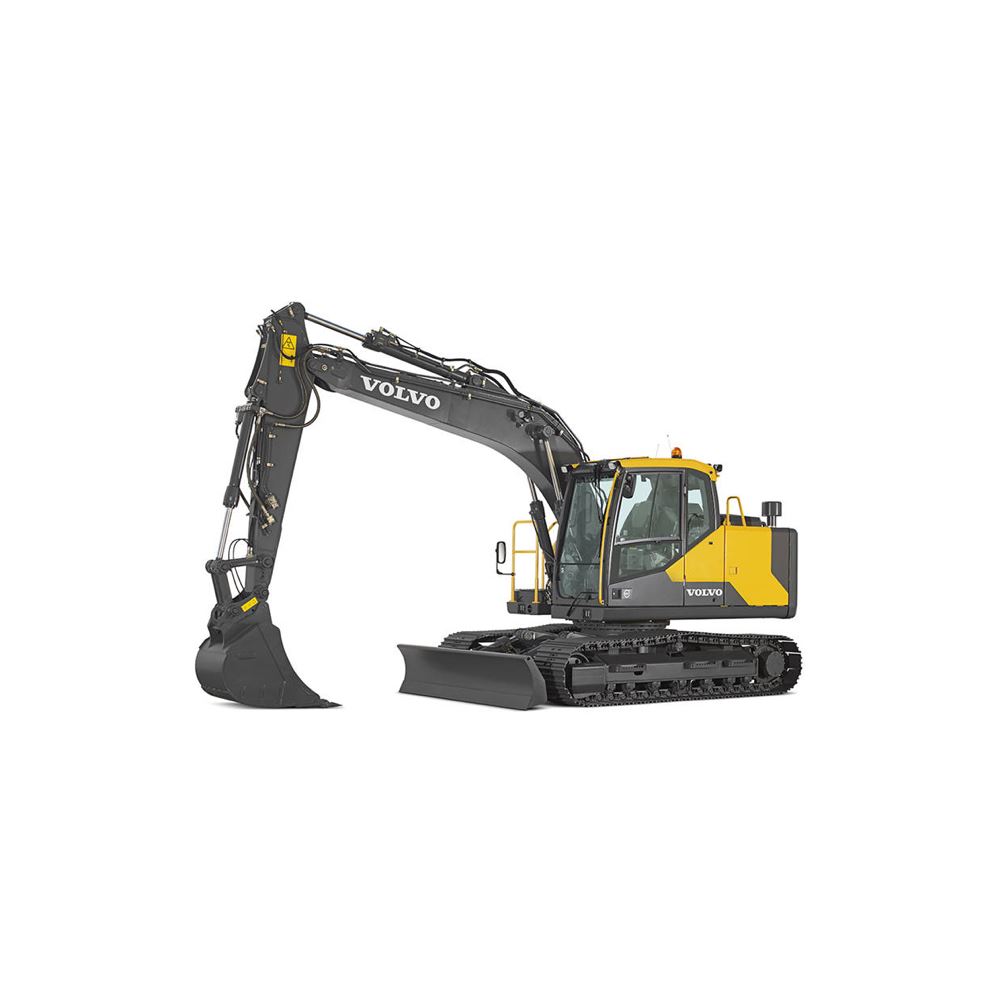

Volvo EC140E
The EC140E excavator from Volvo Construction Equipment boasts increased fuel efficiency, increased power and updated in-cab controls for unparalleled productivity, comfort and low total cost of ownership.
Features and Benefits
Volvo EC140E Excavator - Meeting and surpassing your expectations
Lifetime warranty on frame, boom and arm Volvo D4 Tier 4 Final IV engine

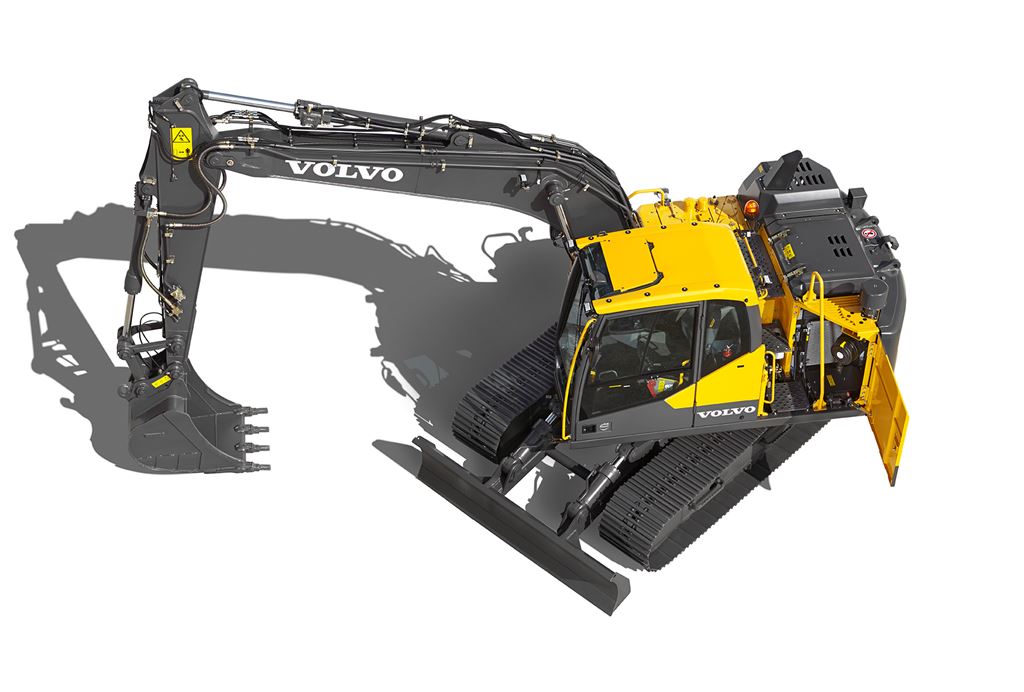

New convenient and safer access to check the hydraulic tank, fuel tank and Diesel Exhaust Fluid

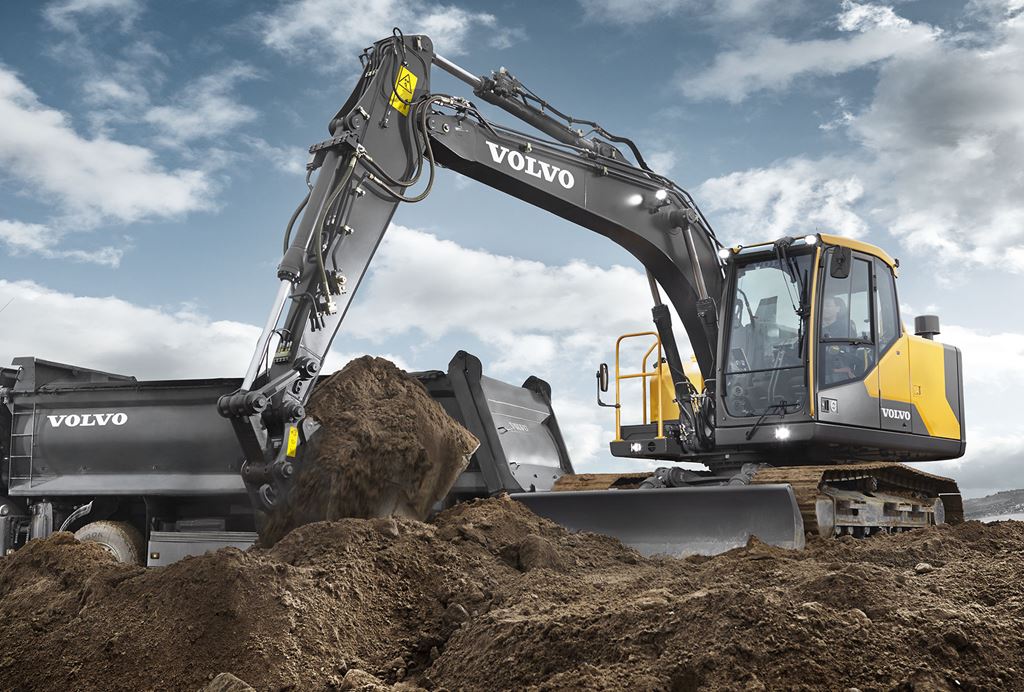

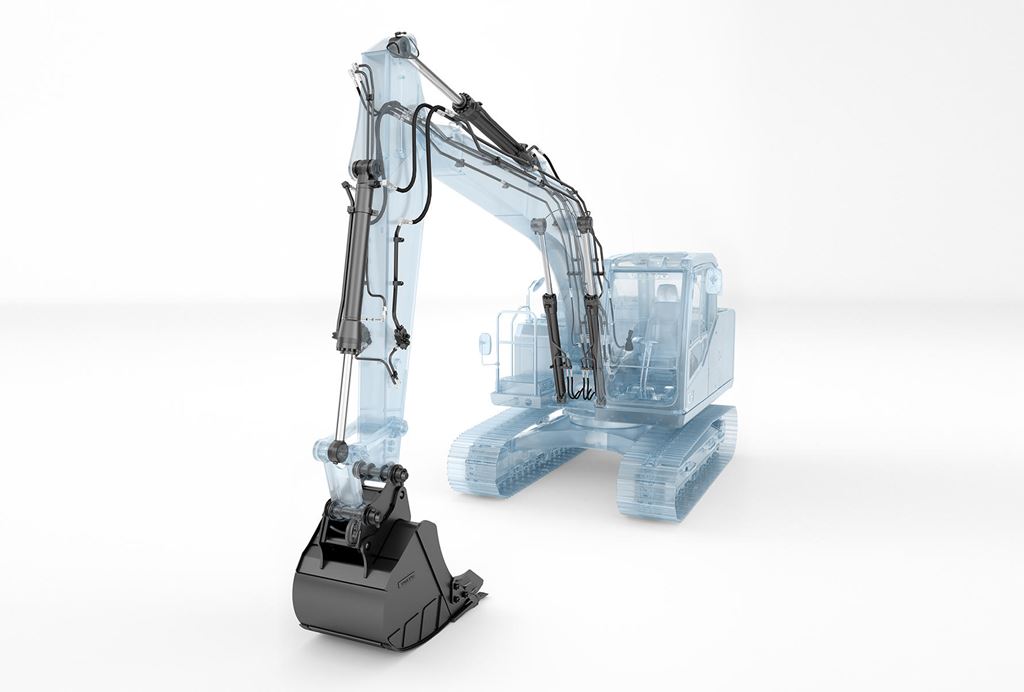

Optimized hydraulics to perfectly match engine power, reduce power loss and improve controllability and response time.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
DRIVELINE
| Aspiration | Turbo, charge air cooled |
| Displacement | 247 Inches³ (4.04 ltr) |
| Engine Output - Gross | 121 hp (90 kW) |
| Engine Model | D 4J |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Track Shoe Width | 24 inches (600 mm) |
| Engine Output - Net | 119 hp (89 kW) |
| Number Of Track Rollers - Each Side | 7 |
| Emission Rating | Tier 4 |
| Rated speed | 2,000 |
PERFORMANCE
| Dipper Tearout | 15,150 lbf (67.4 kN) |
| Main Pump | Variable axial piston |
| Total Flow | 66 gallons (US) / min (248 lt/min) |
| Bucket Breakout | 21,740 lbf (96.6 kN) |
| Side lift - Max Reach | 4,320 lbs (1960 kg) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Standard Shoe Width | 24 inches (600 mm) |
| Ground Bearing Pressure | 5 PSI (35.3 kPa) |
| End lift - Max Reach | 6,670 lbs (3020 kg) |
DIMENSIONS
| Capacity Standard | ISO 7,451 |
| Mono Boom - Size | 15 ft 1 in ft/in (4.6 m) |
| Standard Dipper | 8 ft 2 in ft/in (2500 mm) |
| Longest Dipper | 9 ft 10 in ft/in (3000 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | 35 inches (900 mm) |
| Heaped Bucket Capacity - Standard | 1 yd³ (0.54 m³) |
| Dig Depth - Mono Boom | 18 ft 3 in ft/in (5560 mm) |
| Transport Length Mono Boom | 25 ft 4 in ft/in (7720 mm) |
| Width over fixed tracks | 8 ft 6 in ft/in (2590 mm) |
| Track Gauge - Standard | 6 ft 6 in ft/in (1990 mm) |
| Vertical Wall - Mono Boom | 14 ft 2 in ft/in (4330 mm) |
| Dig Height - Mono Boom | 27 ft 5 in ft/in (8360 mm) |
| Dump Height - Mono Boom | 19 ft 6 in ft/in (5950 mm) |
| Digging Reach - Mono Boom | 27 ft 5 in ft/in (8360 mm) |
| Transport Height - Maximum | 10 ft 10 in ft/in (3310 mm) |
| Overall Undercarriage Width | 8 ft 6 in ft/in (2590 mm) |
| Ground Level Reach - Mono Boom | 27 ft ft/in (8220 mm) |
| Bucket Weight - Standard | 971 lbs (440 kg) |
| Ground Clearance | 17 inches (436 mm) |
| Track Length On Ground | 10 ft ft/in (3040 mm) |
DESCRIPTION
| Dipper Length - Standard | 8 ft 2 in ft/in (2500 mm) |
| Telematics Available | Yes |
WEIGHTS
| Operating Weight | 31,660 lbs (14360 kg) |
CAPACITIES
| Fuel Tank | 66 gallons (US) (250 ltr) |
| Hydraulic Tank | 22 gallons (US) (85 ltr) |
