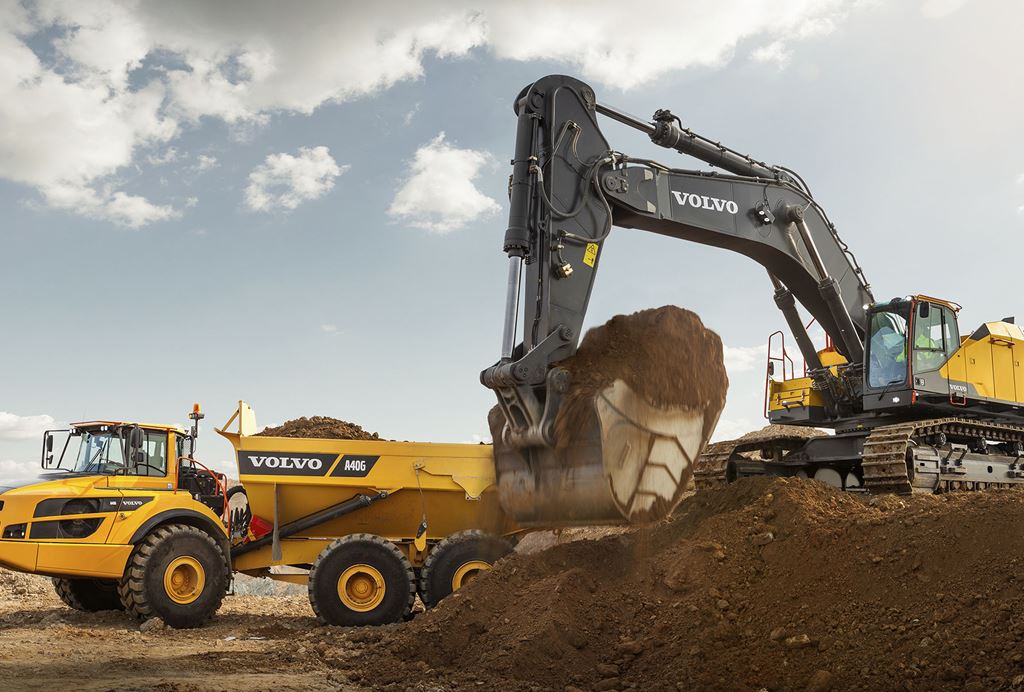

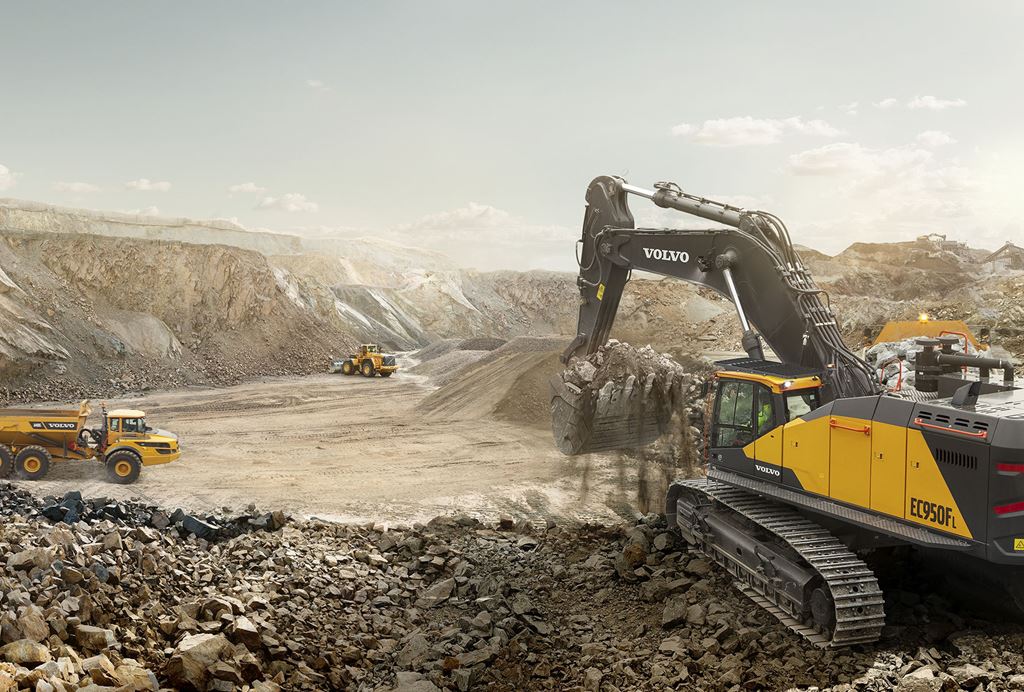

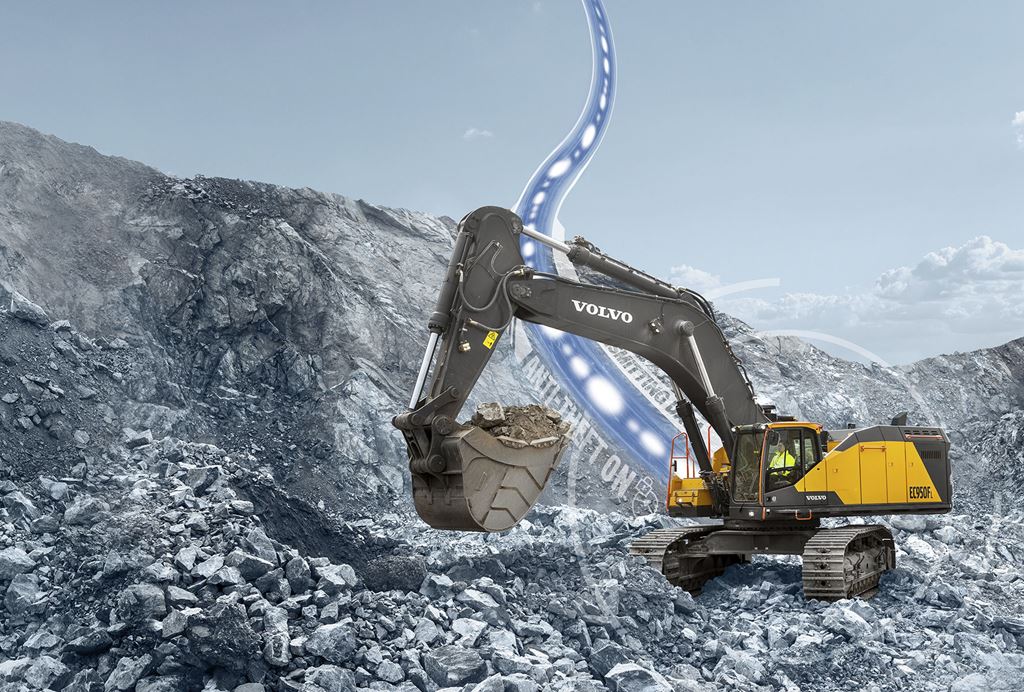

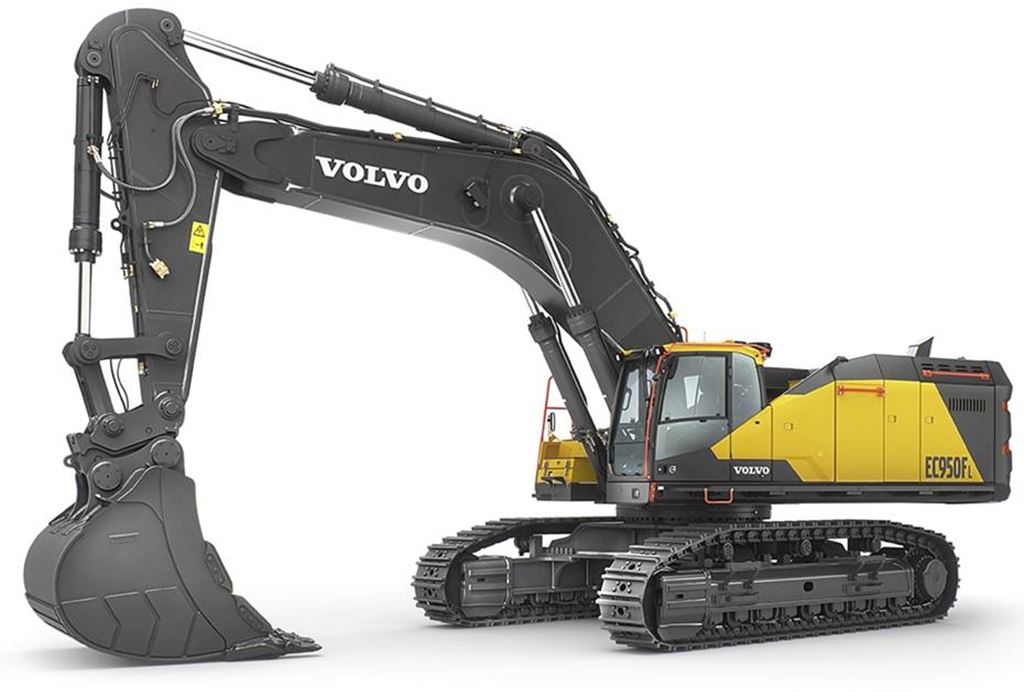

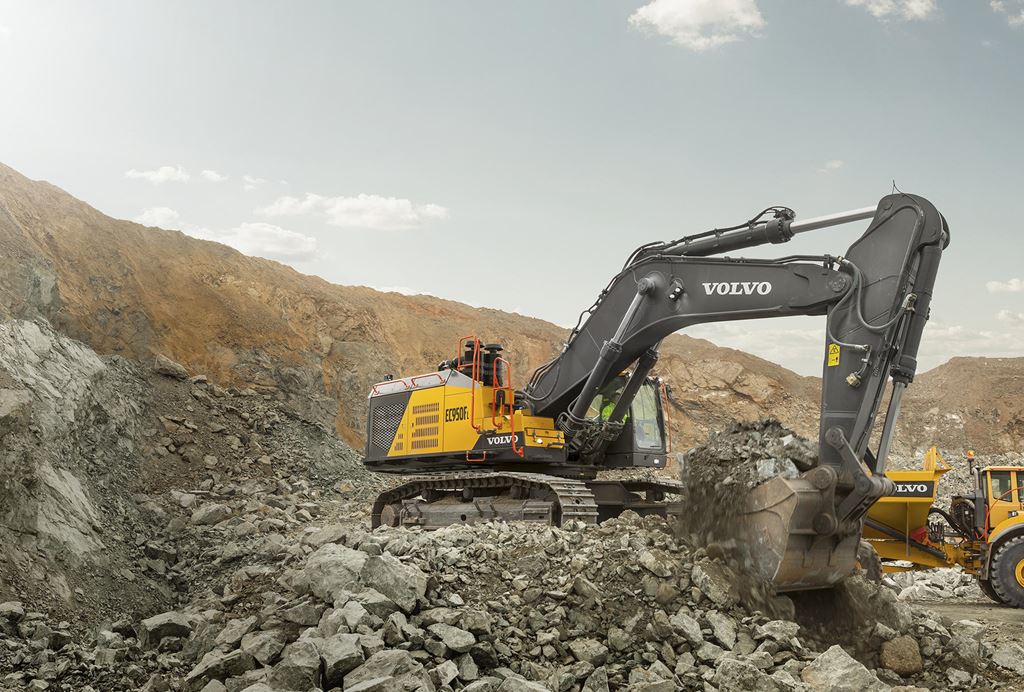

Volvo EC 950 F
Perform a variety of tasks with greater speed in the heavy-duty EC950F from Volvo, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950F excavator will maximize your profitability.
Features and Benefits
Volvo EC 950 F Excavator - TACKLE TOUGH TASKS WITH EASE
Fast cycle times

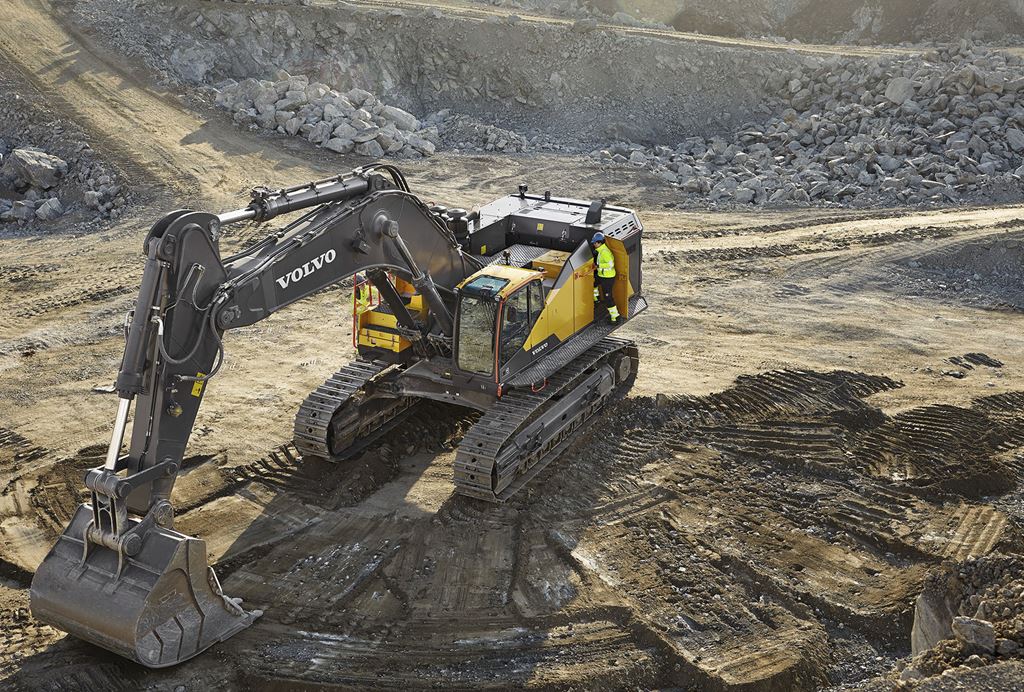

Easy Service Access
Comfort Cab
Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 603 hp (449 kW) |
| Track Shoe Width | 36 inches (900 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 603 hp (450 kW) |
| Number Of Track Rollers - Each Side | 9 |
| Emission Rating | Tier 4 / Stage V |
| Rated speed | 1,650 |
| Engine Model | D 16J |
| Displacement | 982 Inches³ (16.1 ltr) |
| Aspiration | Turbo, charge air cooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 5 yd³ (3.9 m³) |
| Dig Height - Mono Boom | 43 ft 7 in ft/in (13280 mm) |
| Dump Height - Mono Boom | 30 ft 2 in ft/in (9200 mm) |
| Digging Reach - Mono Boom | 46 ft ft/in (14020 mm) |
| Width over fixed tracks | 14 ft 7 in ft/in (4450 mm) |
| Transport Length Mono Boom | 47 ft 11 in ft/in (14600 mm) |
| Transport Height - Maximum | 16 ft 6 in ft/in (4950 mm) |
| Dig Depth - Mono Boom | 29 ft 4 in ft/in (8950 mm) |
| Overall Undercarriage Width | 12 ft 1 in ft/in (3690 mm) |
| Ground Level Reach - Mono Boom | 45 ft 1 in ft/in (13750 mm) |
| Bucket Weight - Standard | 9,526 lbs (4321 kg) |
| Ground Clearance | 36 inches (915 mm) |
| Track Length On Ground | 16 ft 10 in ft/in (5120 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Capacity Standard | ISO 7,451 |
| Vertical Wall - Mono Boom | 23 ft 11 in ft/in (7300 mm) |
WEIGHTS
| Operating Weight | 209,020 lbs (94810 kg) |
CAPACITIES
| Fuel Tank | 334 gallons (US) (1265 ltr) |
| Hydraulic Tank | 122 gallons (US) (460 ltr) |
PERFORMANCE
| Boom Pressure | 4,980 PSI (343 bar) |
| Ground Bearing Pressure | 14 PSI (92.9 kPa) |
| End lift - Max Reach | 36,332 lbs (16480 kg) |
| Bucket Breakout | 87,226 lbf (388 kN) |
| Total Flow | 311 gallons (US) / min (1177 lt/min) |
| Dipper Tearout | 80,706 lbf (359 kN) |
| Side lift - Max Reach | 28,969 lbs (13140 kg) |
DESCRIPTION
| Telematics Available | - |
| Dipper Length - Standard | 12 ft 1 in ft/in (3700 mm) |
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
