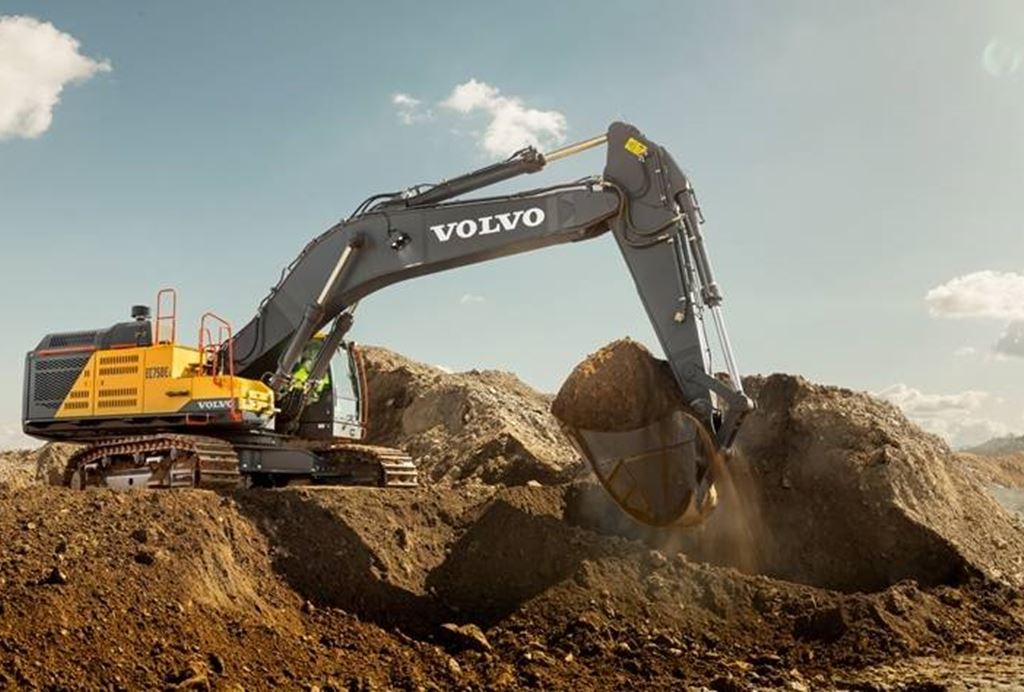

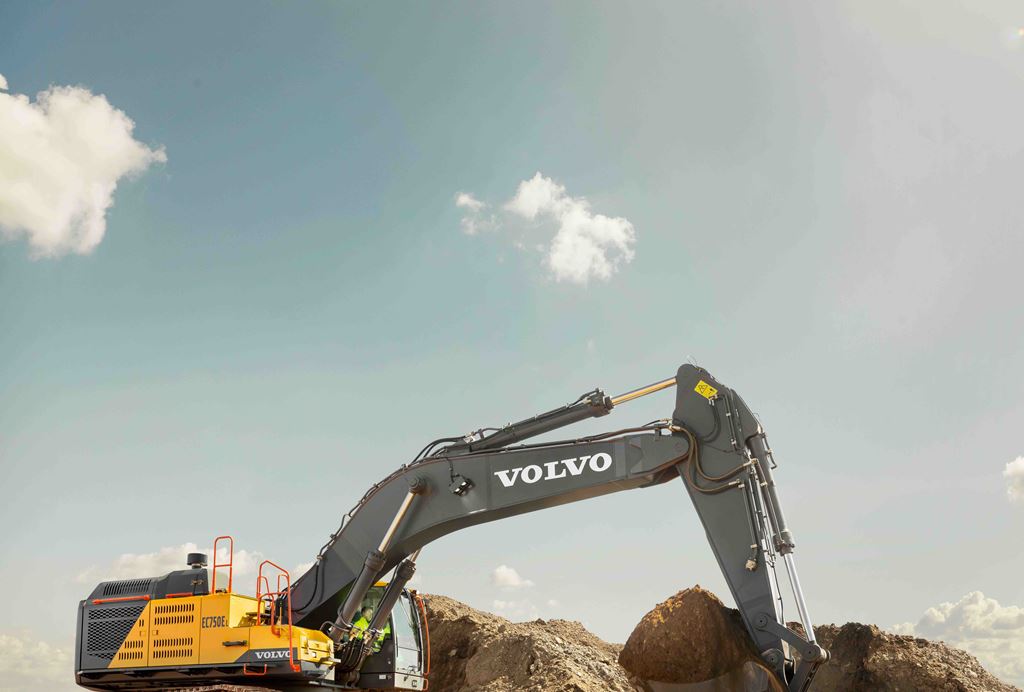

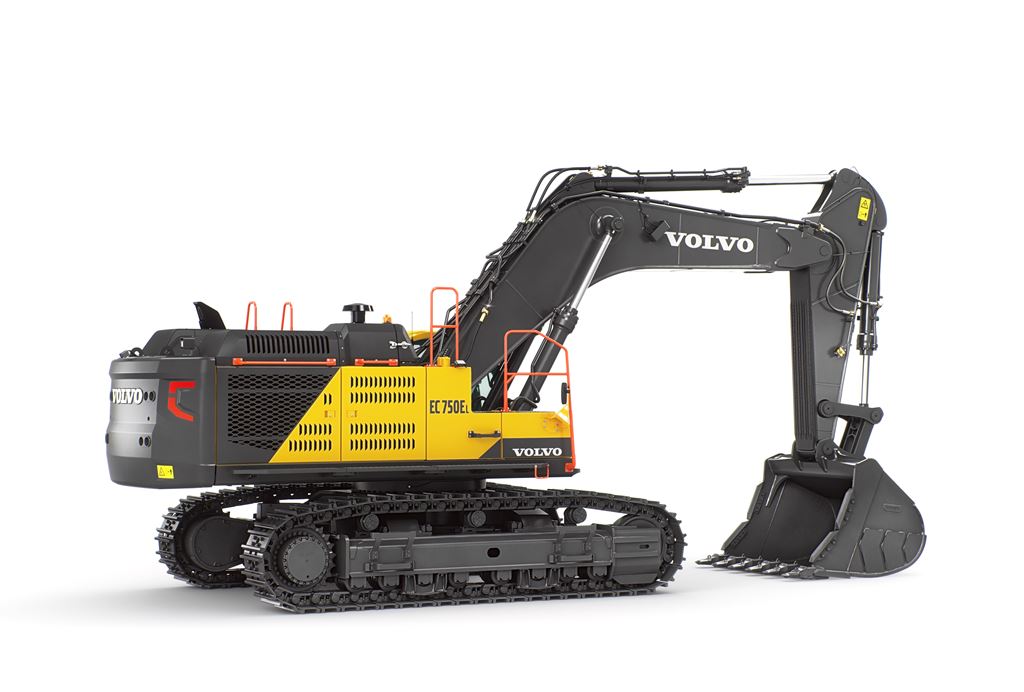

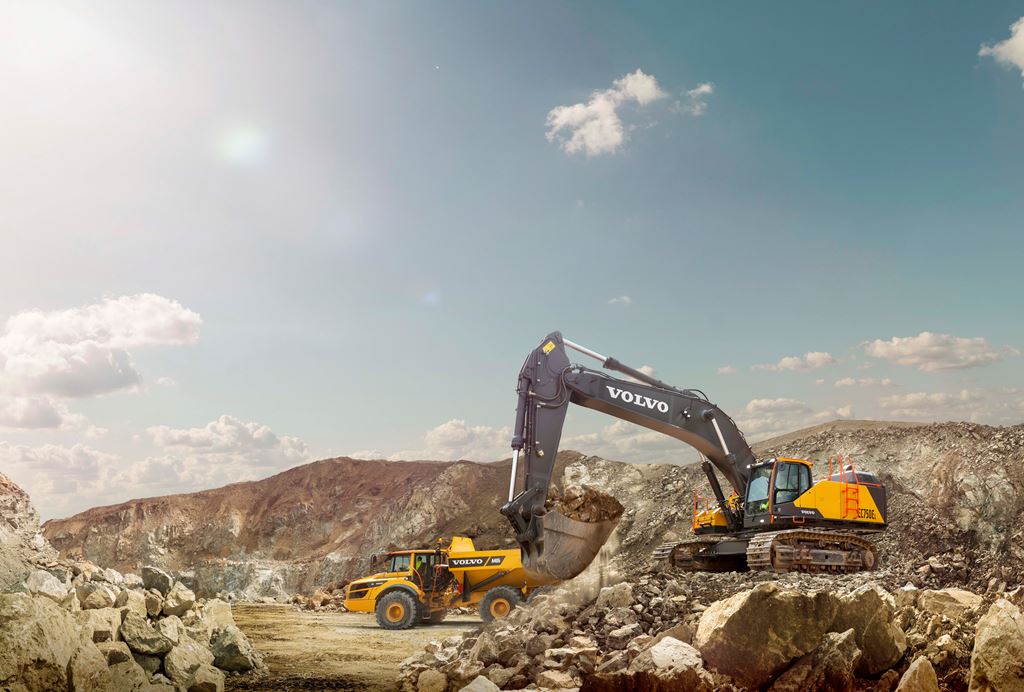

Volvo EC 750 E
The 75 ton crawler excavator offers the perfect combination of power and stability to handle a higher capacity in any application. Powered by Volvo’s Tier 4 Final compliant D16 engine, the heavy-duty EC750E delivers increased horsepower of 374 kW/502 hp, ensuring an extremely responsive operation for maximum productivity and profitability.
Features and Benefits
Volvo EC 750 E Excavator - INCREASE PRODUCTIVITY AND ENSURE MAXIMUM RETURN ON INVESTMENT
2019 EquipmentWatch Lowest Cost of Ownership Award
ActiveCare Direct
Matris
Fast cycle times
Easy Service Access
Comfort Cab
Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 527 hp (393 kW) |
| Track Shoe Width | 26 inches (650 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 526 hp (392 kW) |
| Number Of Track Rollers - Each Side | 8 |
| Emission Rating | Tier 4 / Stage IV |
| Rated speed | 1,800 |
| Engine Model | D 16J |
| Displacement | 982 Inches³ (16.1 ltr) |
| Aspiration | Turbo, charge air cooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 6 yd³ (4.28 m³) |
| Width over fixed tracks | - |
| Track Gauge - Standard | - |
| Vertical Wall - Mono Boom | 24 ft 3 in ft/in (7390 mm) |
| Dig Height - Mono Boom | 41 ft 6 in ft/in (12600 mm) |
| Dump Height - Mono Boom | 28 ft 5 in ft/in (8650 mm) |
| Digging Reach - Mono Boom | 43 ft 1 in ft/in (13130 mm) |
| Transport Length Mono Boom | 43 ft 5 in ft/in (13220 mm) |
| Transport Height - Maximum | 16 ft 3 in ft/in (4950 mm) |
| Dig Depth - Mono Boom | 27 ft 6 in ft/in (8370 mm) |
| Overall Undercarriage Width | 14 ft 1 in ft/in (4290 mm) |
| Ground Level Reach - Mono Boom | 42 ft 3 in ft/in (12870 mm) |
| Bucket Weight - Standard | 8,027 lbs (3641 kg) |
| Ground Clearance | 34 inches (858 mm) |
| Track Length On Ground | 15 ft 8 in ft/in (4750 mm) |
| Overall Bucket Width - Standard | - |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 13 ft 10 in ft/in (4200 mm) |
| Standard Dipper | 11 ft 8 in ft/in (3550 mm) |
| Mono Boom - Size | 25 ft 3 in ft/in (7.7 m) |
| Capacity Standard | ISO 7,451 |
CAPACITIES
| Fuel Tank | 211 gallons (US) (800 ltr) |
| Hydraulic Tank | 93 gallons (US) (350 ltr) |
WEIGHTS
| Operating Weight | 165,150 lbs (74900 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 23,130 lbs (10490 kg) |
| Boom Pressure | 4,902 PSI (338 bar) |
| Standard Shoe Width | 26 inches (650 mm) |
| Ground Bearing Pressure | 16 PSI (106.8 kPa) |
| End lift - Max Reach | 32,460 lbs (14720 kg) |
| Bucket Breakout | 80,710 lbf (359 kN) |
| Total Flow | 238 gallons (US) / min (900 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 67,000 lbf (298 kN) |
DESCRIPTION
| Telematics Available | Yes |
| Dipper Length - Standard | 11 ft 8 in ft/in (3550 mm) |
