Excavators

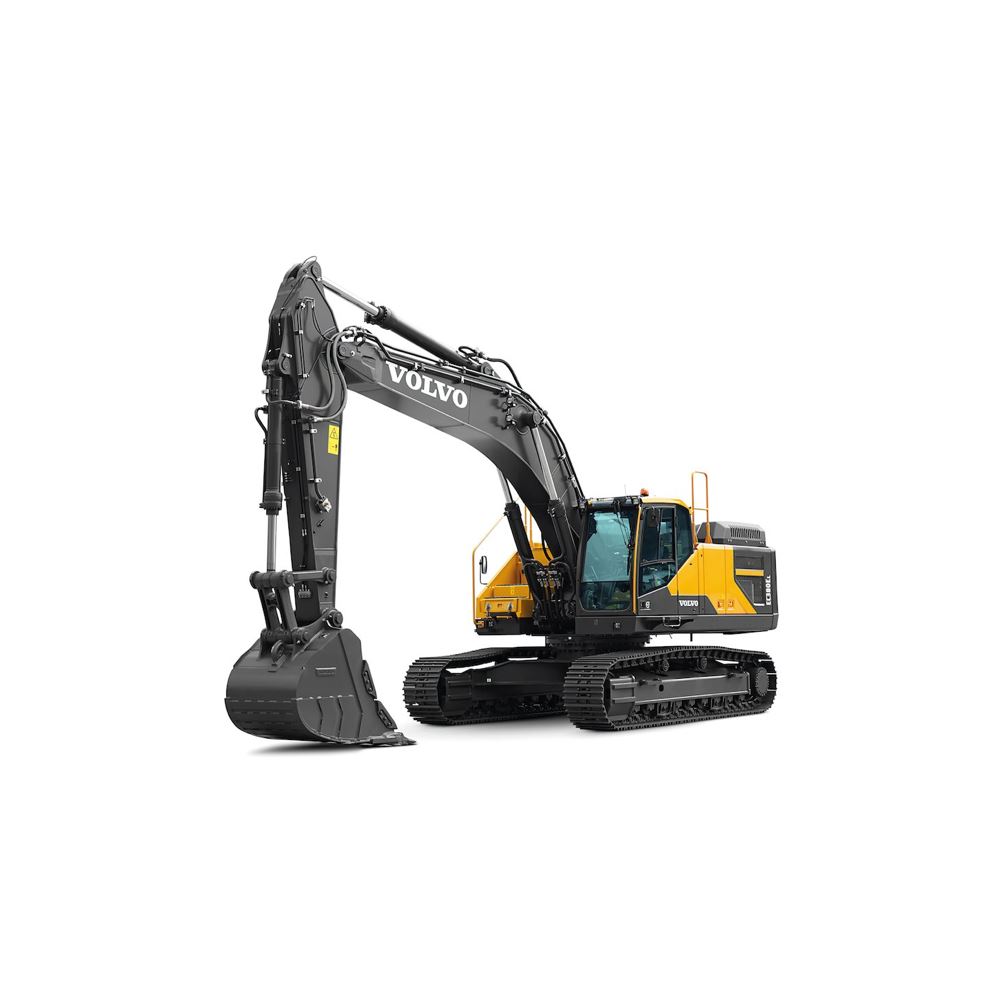

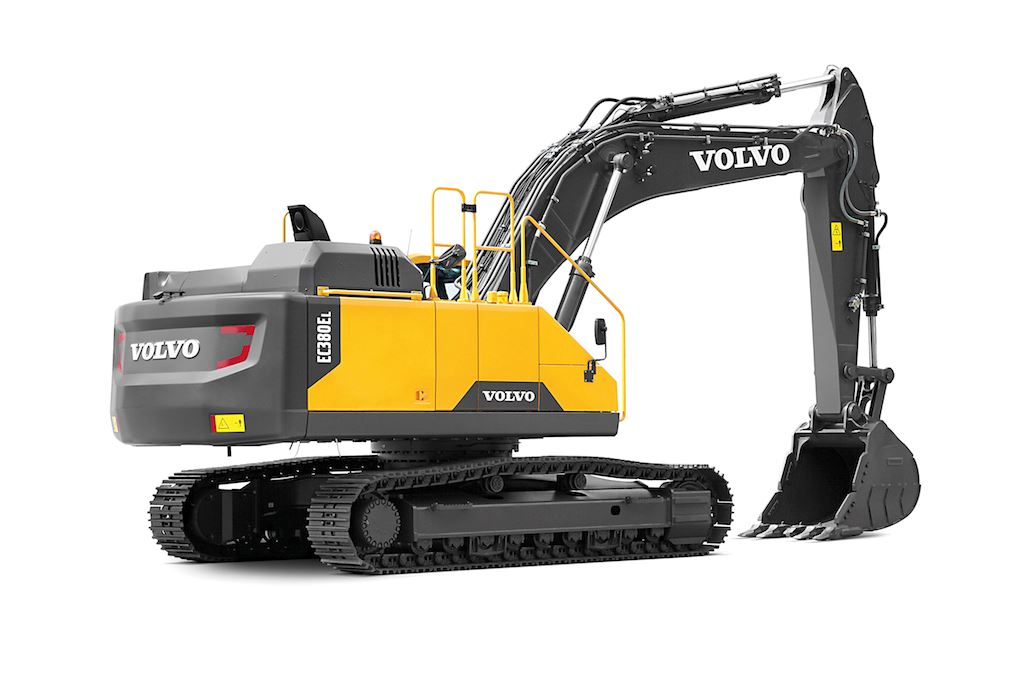

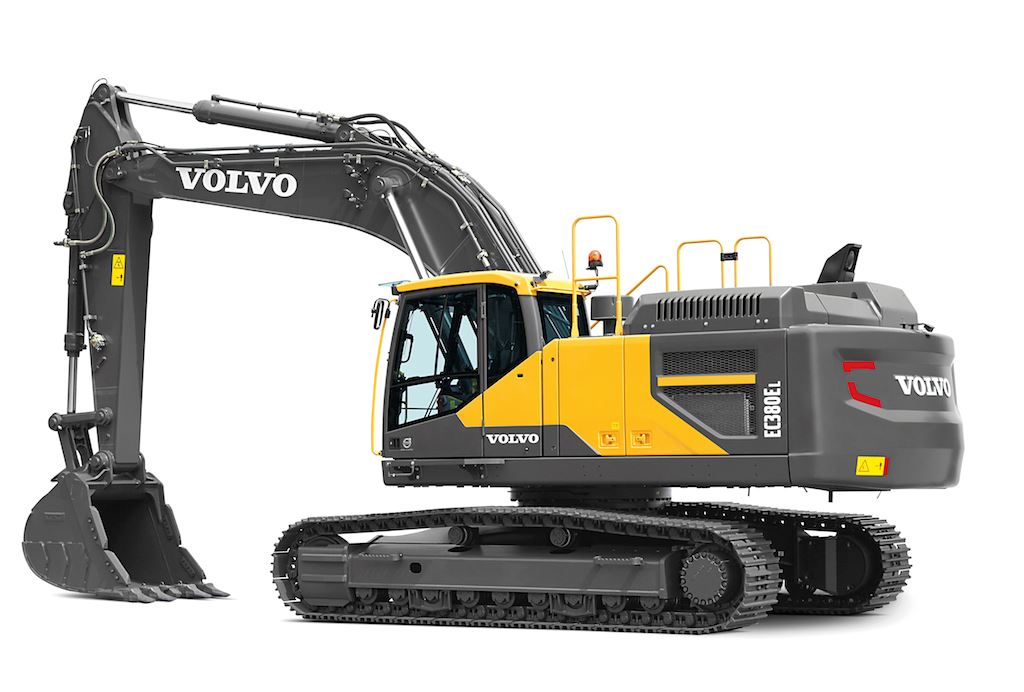

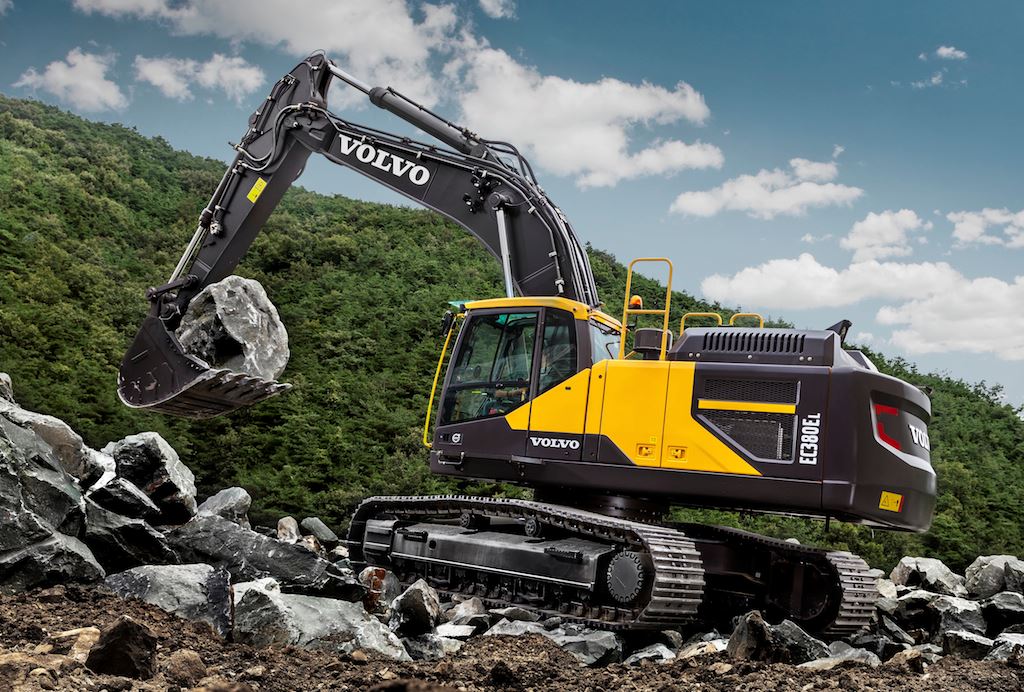

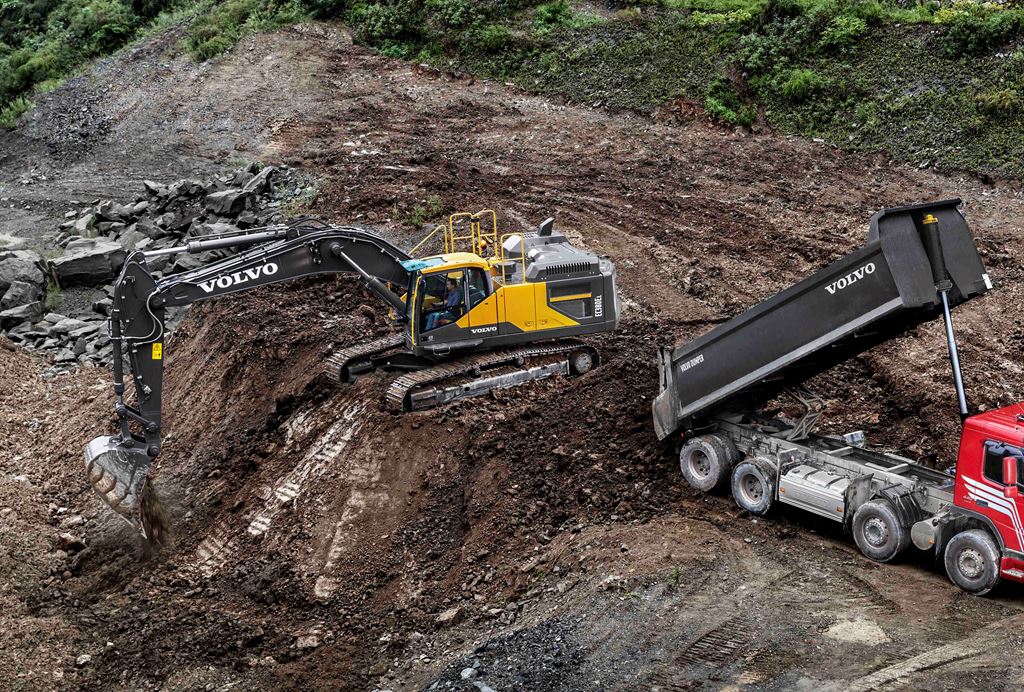

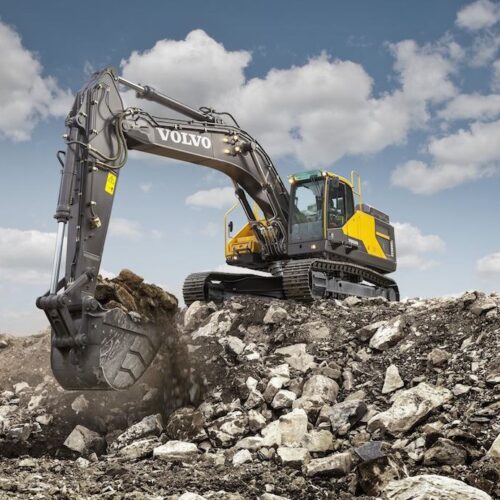

Volvo EC 380 E

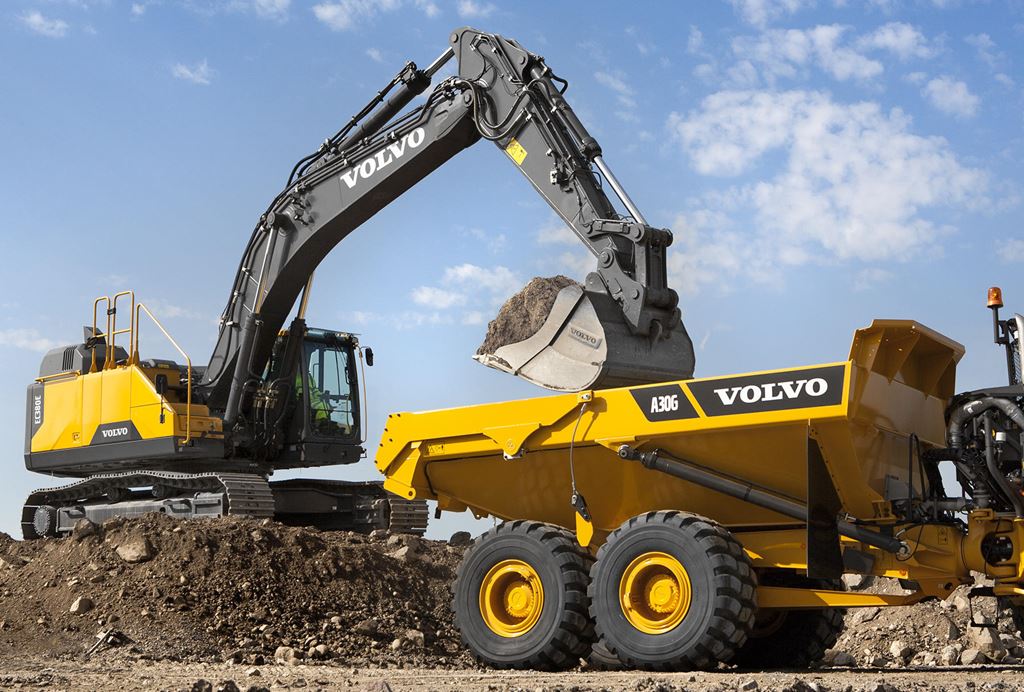

The new EC380E excavator from Volvo Construction Equipment, a powerful production machine designed to increase your productivity. Featuring a robust D13 Stage IV/Tier 4 Final engine, a new electro-hydraulic control system and Volvos unique ECO mode, this heavy-duty excavator delivers a 9% improvement in fuel efficiency.
Features and Benefits
Volvo EC 380 E Excavator - VOLVO EC380E EXCAVATOR - WHEN QUALITY COUNTS
2019 EquipmentWatch Highest Retained Value Award
ActiveCare Direct
Matris
Fast cycle times
Easy Service Access
Comfort Cab
Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 303 hp (226 kW) |
| Track Shoe Width | 32 inches (800 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 302 hp (225 kW) |
| Number Of Track Rollers - Each Side | 9 |
| Emission Rating | Tier 4 / Stage IV |
| Rated speed | 1,700 |
| Engine Model | D 13J |
| Displacement | 781 Inches³ (12.8 ltr) |
| Aspiration | Turbo, charge air cooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 2 yd³ (1.42 m³) |
| Vertical Wall - Mono Boom | 19 ft 3 in ft/in (5875 mm) |
| Dig Height - Mono Boom | 33 ft 11 in ft/in (10340 mm) |
| Dump Height - Mono Boom | 23 ft 11 in ft/in (7285 mm) |
| Digging Reach - Mono Boom | 36 ft 4 in ft/in (11070 mm) |
| Width over fixed tracks | 11 ft 7 in ft/in (3540 mm) |
| Transport Length Mono Boom | 36 ft 10 in ft/in (11225 mm) |
| Transport Height - Maximum | 12 ft 1 in ft/in (3685 mm) |
| Dig Depth - Mono Boom | 24 ft 3 in ft/in (7390 mm) |
| Overall Undercarriage Width | 11 ft 7 in ft/in (3540 mm) |
| Ground Level Reach - Mono Boom | 35 ft 7 in ft/in (10860 mm) |
| Bucket Weight - Standard | - |
| Ground Clearance | 20 inches (500 mm) |
| Track Length On Ground | 13 ft 11 in ft/in (4240 mm) |
| Overall Bucket Width - Standard | 48 inches (1200 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 12 ft 10 in ft/in (3900 mm) |
| Standard Dipper | 10 ft 6 in ft/in (3200 mm) |
| Mono Boom - Size | 21 ft 2 in ft/in (6.45 m) |
| Capacity Standard | - |
| Track Gauge - Standard | 9 ft ft/in (2740 mm) |
WEIGHTS
| Operating Weight | 87,640 lbs (39748 kg) |
HYBRID SYSTEM UNIT
| Type | - |
| Rated Power Output | - |
PERFORMANCE
| Side lift - Max Reach | 12,950 lbs (5870 kg) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Standard Shoe Width | - |
| Ground Bearing Pressure | 8 PSI (54.4 kPa) |
| End lift - Max Reach | 20,190 lbs (9150 kg) |
| Bucket Breakout | 54,560 lbf (242.7 kN) |
| Total Flow | 158 gallons (US) / min (600 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 40,690 lbf (181 kN) |
CAPACITIES
| Fuel Tank | 164 gallons (US) (620 ltr) |
| Hydraulic Tank | 59 gallons (US) (225 ltr) |
DESCRIPTION
| Telematics Available | - |
| Dipper Length - Standard | 10 ft 6 in ft/in (3200 mm) |
