Excavators

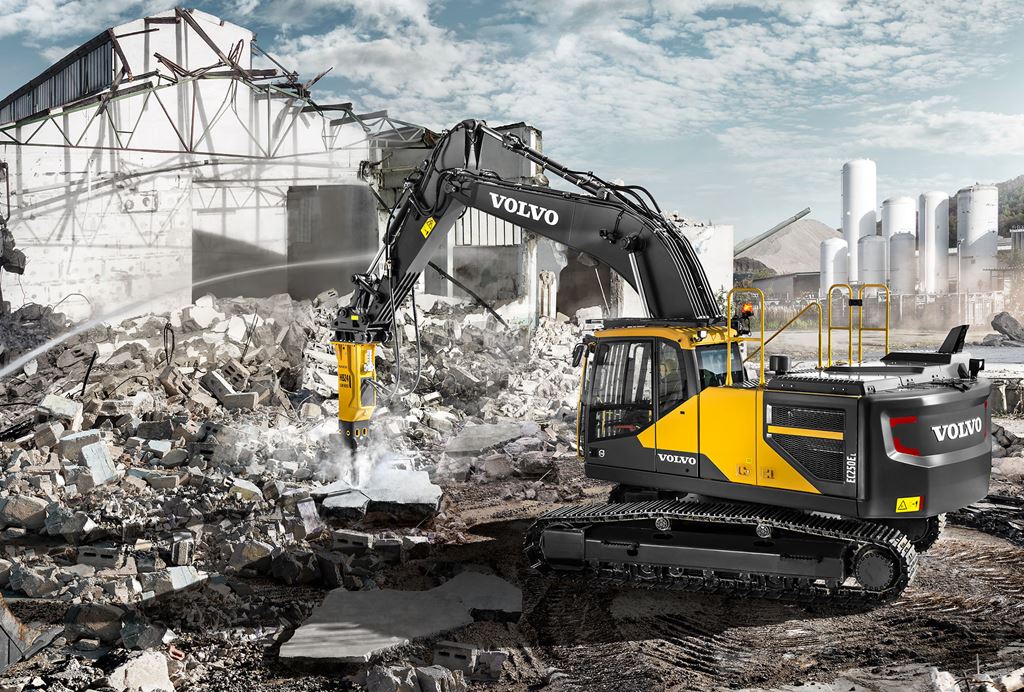

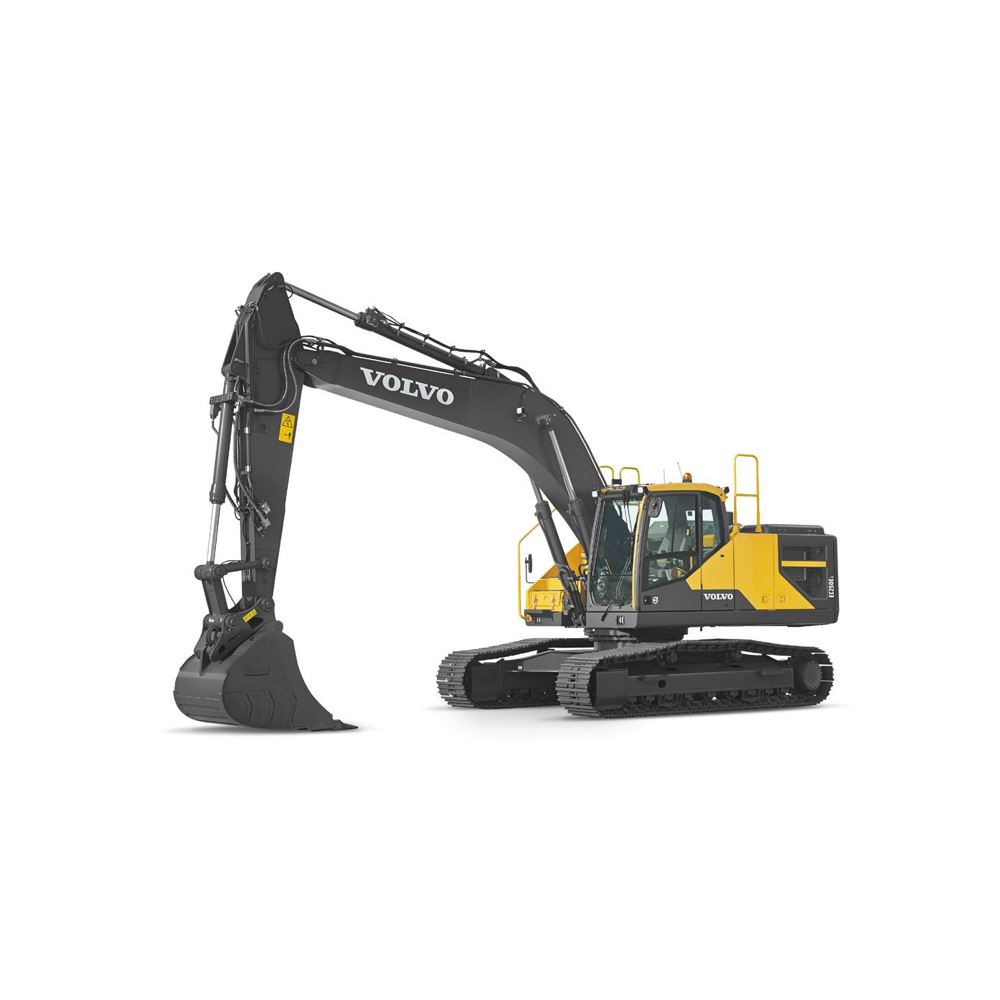

Volvo EC 250 E

  • 214 hp
  • 2 yd³
  • 59,290 lbs

Volvo’s EC250E Excavator is a powerful and efficient machine designed to reduce fuel consumption and increase your productivity. With advanced technology, the machines deliver a significant improvement in fuel efficiency, saving your business time and cost. Put your mind at ease with Volvo.

Features and Benefits

Volvo EC 250 E Excavator - BOOST YOUR PRODUCTIVITY

ActiveCare Direct

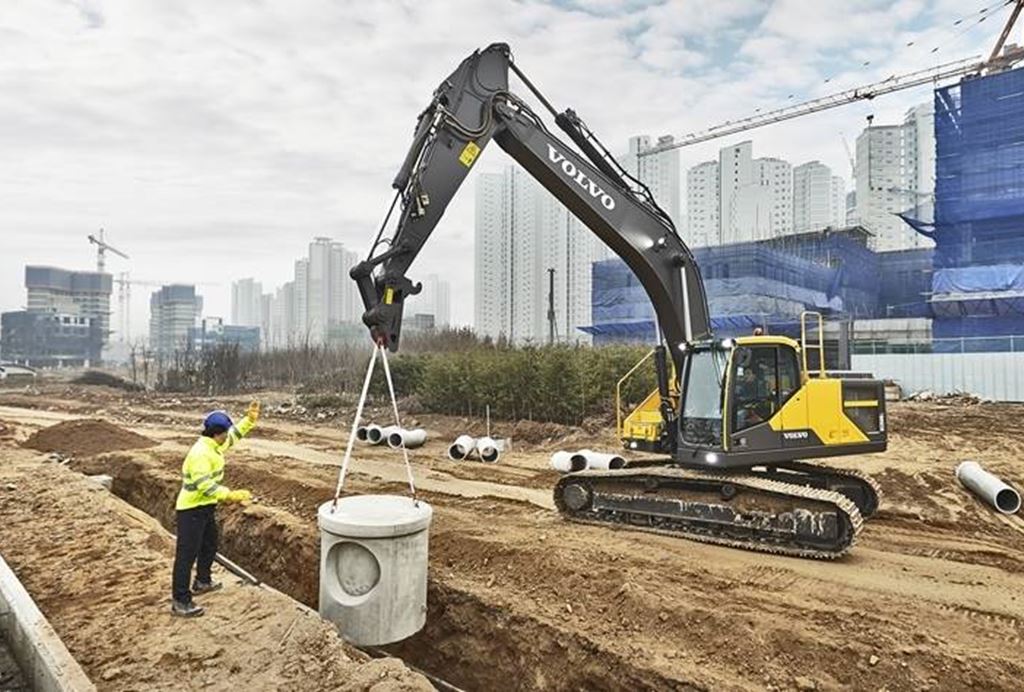

Fast cycle times

Easy Service Access

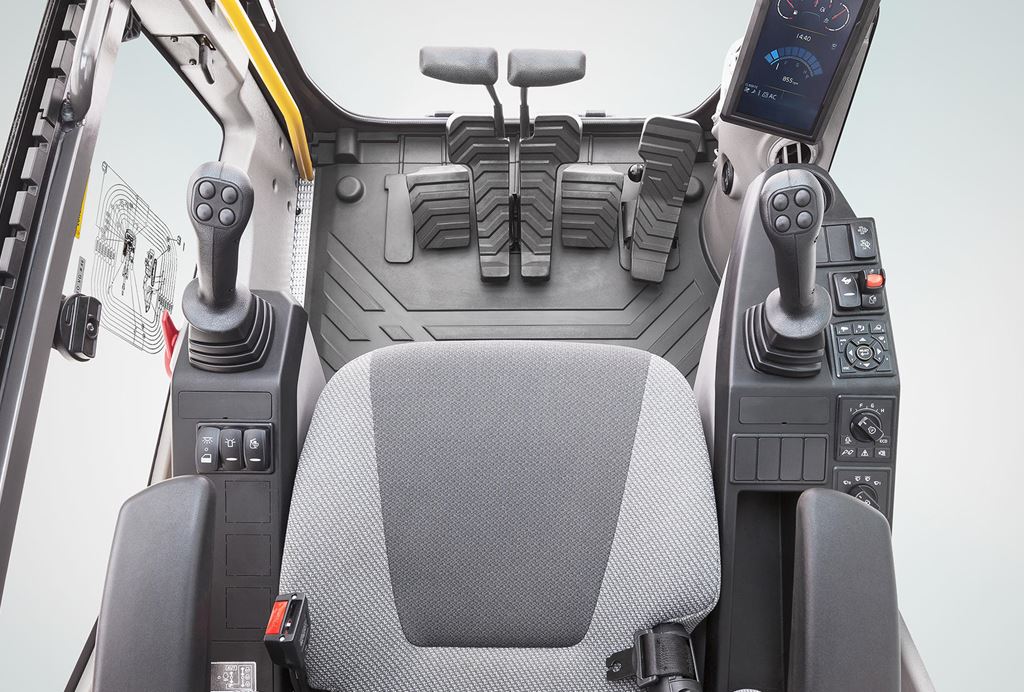

Comfort Cab

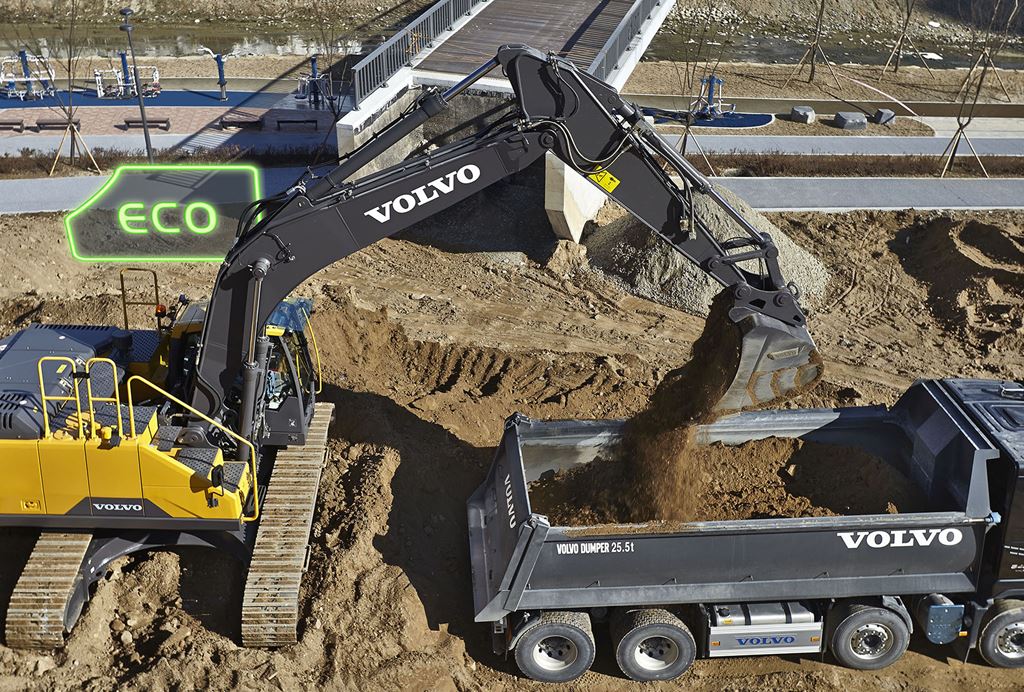

Outstanding Fuel Efficiency

Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)

Technical Specifications

Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.

DRIVELINE

Engine Output - Gross 214 hp (160 kW)
Track Shoe Width 32 inches (800 mm)
Engine Manufacturer Volvo
Engine Manufacturer Volvo
Engine Output - Net 213 hp (159 kW)
Number Of Track Rollers - Each Side 9
Emission Rating Tier 4 / Stage V
Rated speed 1,800
Engine Model D 8J
Displacement 473 Inches³ (7.8 ltr)
Aspiration Turbo, charge air cooled

DIMENSIONS

Heaped Bucket Capacity - Standard 2 yd³ (1.32 m³)
Vertical Wall - Mono Boom 19 ft 11 in ft/in (6070 mm)
Dig Height - Mono Boom 31 ft 10 in ft/in (9690 mm)
Dump Height - Mono Boom 22 ft 1 in ft/in (6710 mm)
Digging Reach - Mono Boom 34 ft ft/in (10340 mm)
Width over fixed tracks 11 ft 1 in ft/in (3390 mm)
Transport Length Mono Boom 33 ft 7 in ft/in (10230 mm)
Transport Height - Maximum 11 ft 7 in ft/in (3510 mm)
Dig Depth - Mono Boom 23 ft 2 in ft/in (7060 mm)
Overall Undercarriage Width 10 ft 6 in ft/in (3190 mm)
Ground Level Reach - Mono Boom 33 ft 4 in ft/in (10160 mm)
Bucket Weight - Standard 2,772 lbs (1257 kg)
Ground Clearance 19 inches (470 mm)
Track Length On Ground 12 ft 8 in ft/in (3850 mm)
Overall Bucket Width - Standard 53 inches (1350 mm)
Zero Tailswing? No
Zero Tailswing No
Standard Dipper 9 ft 9 in ft/in (2970 mm)
Mono Boom - Size 19 ft 8 in ft/in (6 m)
Capacity Standard ISO 7,451

WEIGHTS

Operating Weight 59,290 lbs (26890 kg)

HYBRID SYSTEM UNIT

Type -
Rated Power Output -

PERFORMANCE

Side lift - Max Reach 8,560 lbs (3880 kg)
Boom Pressure 4,840 PSI (333 bar)
Ground Bearing Pressure 6 PSI (38.8 kPa)
End lift - Max Reach 13,010 lbs (5900 kg)
Bucket Breakout 41,810 lbf (186 kN)
Total Flow 126 gallons (US) / min (480 lt/min)
Main Pump Variable axial piston
Dipper Tearout 28,890 lbf (129 kN)

CAPACITIES

Fuel Tank 124 gallons (US) (470 ltr)
Hydraulic Tank 55 gallons (US) (207 ltr)

DESCRIPTION

Telematics Available Yes
Dipper Length - Standard 9 ft 9 in ft/in (2970 mm)
