Compactors

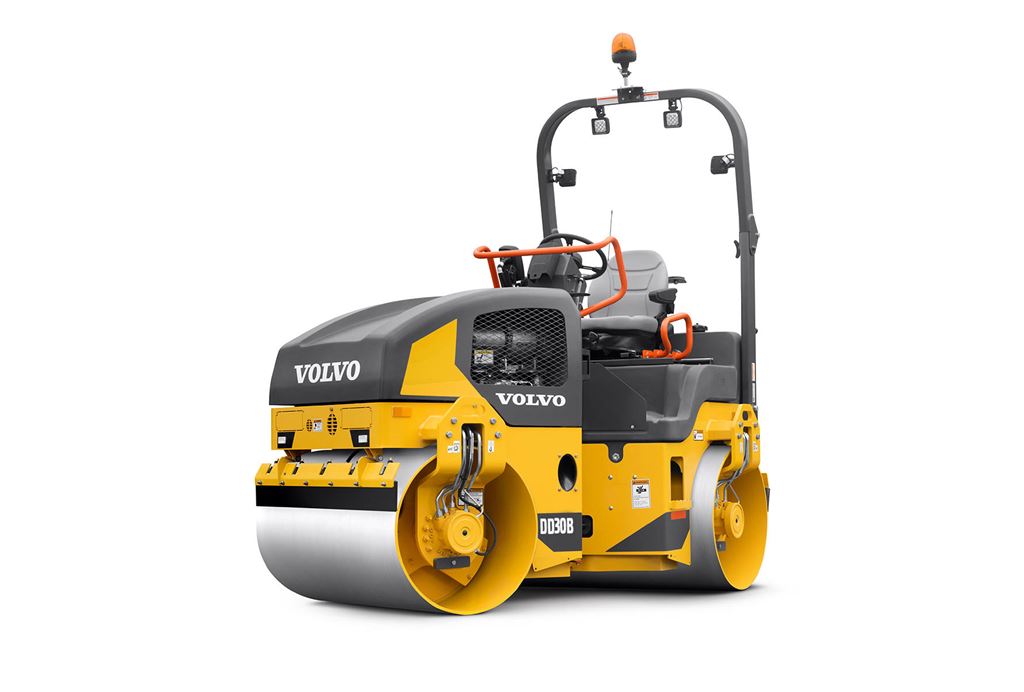

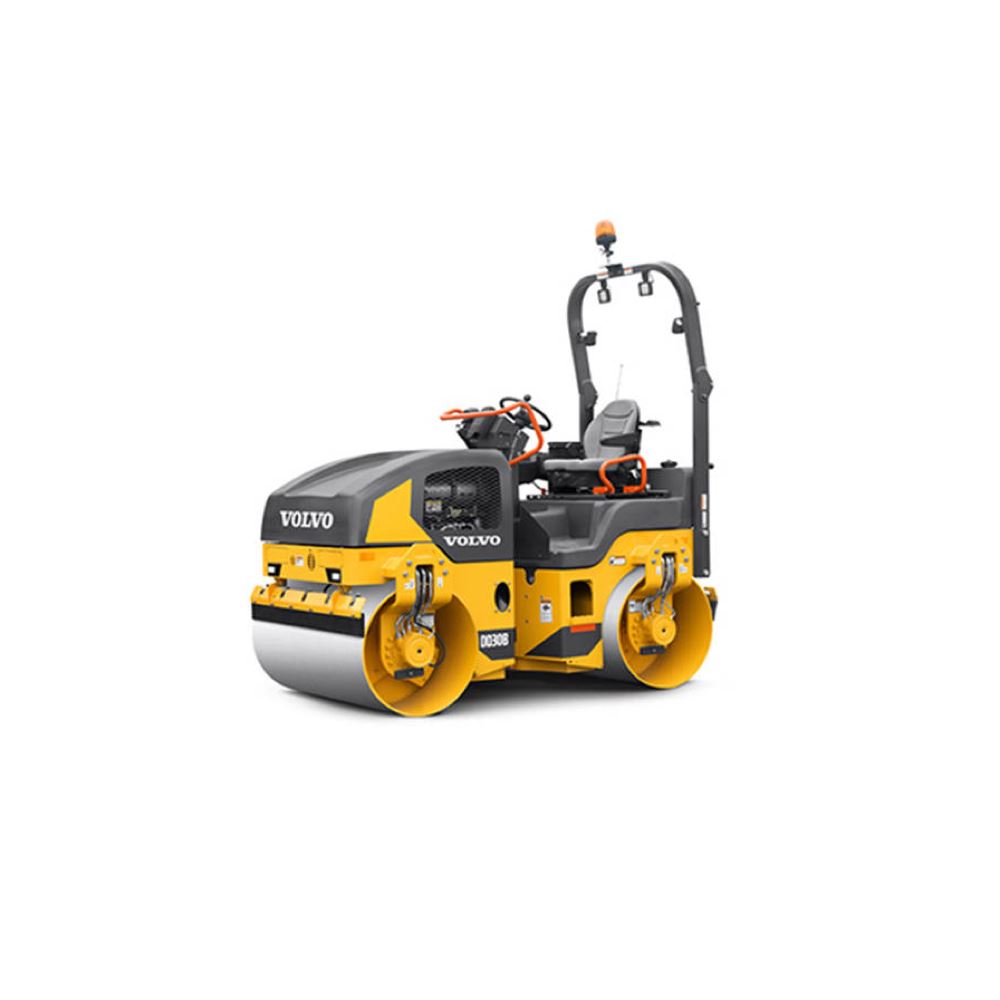

Volvo DD30B
The DD30B asphalt roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Downloads
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output | 50 hp (37 kW) |
| Emission Rating | - |
| Diesel Particulate Filter | Yes |
| Diesel Oxidation Catalyst | Yes |
| Selective Catalytic Reduction | No |
| Exhaust Gas Recirculation | - |
| Specific Fuel Consumption @ Rated Power | - |
| Displacement | 111 Inches³ (1.826 ltr) |
| Engine model | D 1,803 - CR-TE4B |
| Rated Speed | 2,700 |
| Transmission | Hydrostatic |
| Engine manufacturer | Kubota |
| Engine manufacturer | Kubota |
DIMENSIONS
| Drum Width - Front | 49 inches (1250 mm) |
| Overall Length | 101 inches (2566 mm) |
| Overall Width | 54 inches (1363 mm) |
| Drum Diameter - Front | 29 inches (736 mm) |
| Turning Radius - Inside | 102 inches (2592 mm) |
| Wheelbase | 68 inches (1725 mm) |
| Turning Radius - Outside | - |
| Drum Diameter - Rear | 29 inches (736 mm) |
| Drum Width - Rear | 49 inches (1250 mm) |
| Ground Clearance | 6 inches (154 mm) |
| Rolling Width | 49 inches (1250 mm) |
| Height - With ROPS | 106 inches (2679 mm) |
| Drum Shell Thickness | 1 inches (14 mm) |
| Height - Without ROPS | 78 inches (1975 mm) |
WEIGHTS
| Operating Weight | 6,839 lbs (3102 kg) |
| Weight - Rear | 3,729 lbs (1695 kg) |
| Weight - Front | 3,110 lbs (1411 kg) |
PERFORMANCE
| Centrifugal force 7 - rear | - |
| Travel Speed 5 | - |
| Drum Oscillation | - |
| Travel Speed 3 | - |
| Amplitude stage 7 - rear | - |
| Max. Travel Speed | 6 mph (10.2 kph) |
| Centrifugal force 6 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 8 - rear | - |
| Drive To Drums | Both |
| Linear Drum Load - Front | - |
| Amplitude stage 7 - front | - |
| Amplitude stage 6 - rear | - |
| Amplitude stage 1 - front | 0 inches (0.38 mm) |
| Centrifugal force 6 - front | - |
| Amplitude stage 6 - front | - |
| Travel Speed 1 | 6 mph (10.2 kph) |
| Travel Speed 2 | - |
| Frequency - stage 1 - front | 67 |
| Travel Speed 6 | - |
| Travel Speed 4 | - |
| Centrifugal force 8 - front | - |
| Amplitude stage 8 - rear | - |
| Linear Drum Load - Rear | - |
| Number of Frequency/Amplitude Settings | 1 |
| Centrifugal force 7 - front | - |
CAPACITIES
| Tank Capacity For Drum | 79 gallons (US) (299 ltr) |
| DEF Tank | - |
| Fuel Tank | 17 gallons (US) (66 ltr) |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
