Compactors

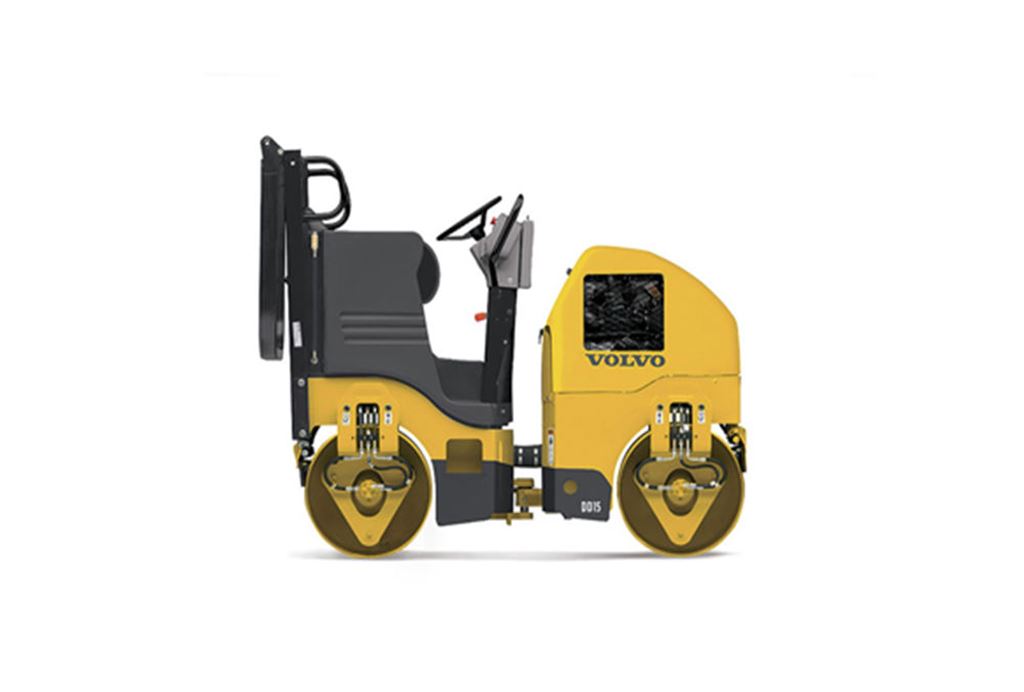

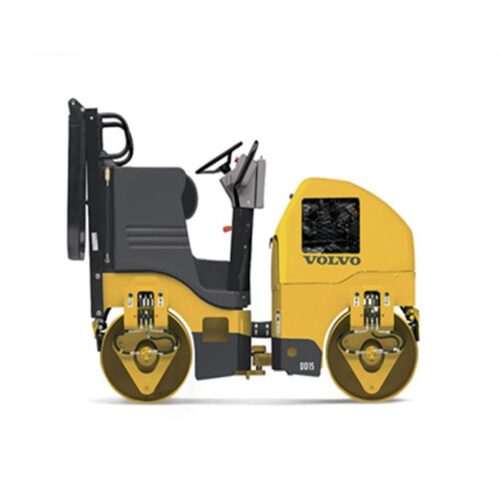

Volvo DD15
The DD15 double drum compactor performs like a much larger machine – delivering high-frequency vibration to give you better speed and productivity in hot mix asphalt (HMA), soil sub-base, aggregate base and numerous other applications.
Downloads
Features and Benefits
Volvo DD15 Compactor - DOUBLE UP
Machined drum surface has chambered edges to produce a professional quality finish
Industry-leading rust-proof water system
Easy-access engine compartment
Isolated vibratory drums minimize vibration feedback
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output | 17 hp (12.4 kW) |
| Emission Rating | - |
| Diesel Particulate Filter | - |
| Diesel Oxidation Catalyst | - |
| Selective Catalytic Reduction | - |
| Exhaust Gas Recirculation | - |
| Specific Fuel Consumption @ Rated Power | - |
| Displacement | - |
| Engine model | D 722 B |
| Rated Speed | 3,000 |
| Transmission | Hydrostatic |
| Engine manufacturer | Kubota |
| Engine manufacturer | Kubota |
DIMENSIONS
| Drum Width - Front | 35 inches (900 mm) |
| Overall Length | 80 inches (2035 mm) |
| Overall Width | 40 inches (1018 mm) |
| Drum Diameter - Front | 22 inches (560 mm) |
| Turning Radius - Inside | - |
| Wheelbase | 55 inches (1400 mm) |
| Turning Radius - Outside | - |
| Drum Diameter - Rear | 22 inches (560 mm) |
| Drum Width - Rear | 35 inches (900 mm) |
| Ground Clearance | 17 inches (440 mm) |
| Rolling Width | - |
| Height - With ROPS | 88 inches (2240 mm) |
| Drum Shell Thickness | 0 inches (12 mm) |
| Height - Without ROPS | 60 inches (1534 mm) |
WEIGHTS
| Operating Weight | 3,372 lbs (1529 kg) |
| Weight - Rear | 1,795 lbs (814 kg) |
| Weight - Front | 1,577 lbs (715 kg) |
PERFORMANCE
| Centrifugal force 7 - rear | - |
| Travel Speed 5 | - |
| Drum Oscillation | - |
| Travel Speed 3 | - |
| Amplitude stage 7 - rear | - |
| Max. Travel Speed | 4 mph (6.3 kph) |
| Centrifugal force 6 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 8 - rear | - |
| Drive To Drums | Both |
| Linear Drum Load - Front | 45 lb / inch (7.97 kg/cm) |
| Amplitude stage 7 - front | - |
| Amplitude stage 6 - rear | - |
| Amplitude stage 1 - front | 0 inches (0.37 mm) |
| Centrifugal force 6 - front | - |
| Amplitude stage 6 - front | - |
| Travel Speed 1 | 4 mph (6.3 kph) |
| Travel Speed 2 | - |
| Frequency - stage 1 - front | 67 |
| Travel Speed 6 | - |
| Travel Speed 4 | - |
| Centrifugal force 8 - front | - |
| Amplitude stage 8 - rear | - |
| Linear Drum Load - Rear | 51 lb / inch (9.04 kg/cm) |
| Number of Frequency/Amplitude Settings | 1 |
| Centrifugal force 7 - front | - |
CAPACITIES
| Tank Capacity For Drum | 52 gallons (US) (197 ltr) |
| DEF Tank | - |
| Fuel Tank | 8 gallons (US) (29.5 ltr) |
DESCRIPTION
| Platform | - |
| Telematics Available | - |
