Compactors

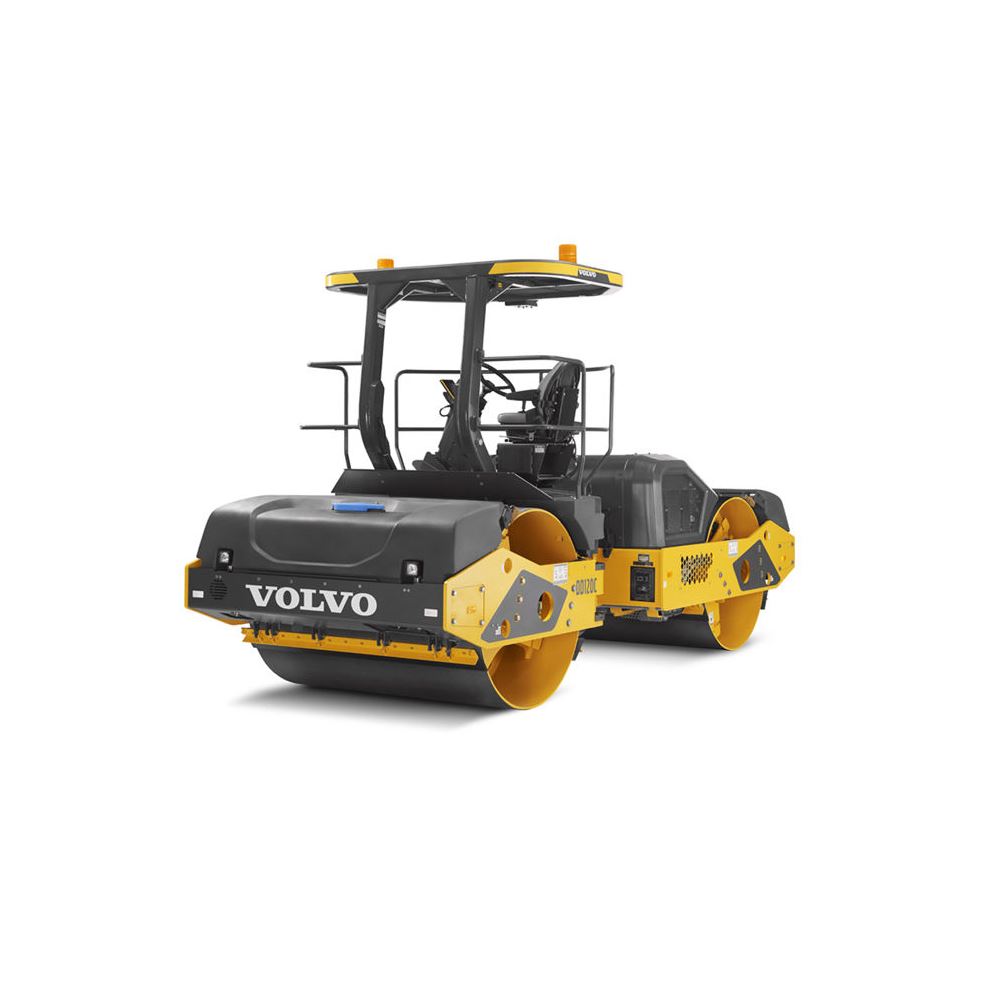

Volvo DD120C
The DD120C is designed to offer maximum efficiency and simple operation, alongside powerful performance and high density levels.
Downloads
Features and Benefits
Volvo DD120C Compactor - ULTIMATE COMPACTION POWER
Volvo D13J Tier 4 Final engine with up to 20% fuel improvements over B-series (with auto idle and eco-mode)
New Volvo common side console and display 8-amplitude option
Auto-reversing eccentrics (8 amplitude version)
Industry-leading automatic drum wetting system with full duplicate back up spray bars on both drums
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal force 7 - front | - |
| Number of Frequency/Amplitude Settings | 2 / 8 |
| Centrifugal force 8 - front | - |
| Travel Speed 4 | - |
| Travel Speed 6 | - |
| Frequency - stage 1 - front | 50 |
| Travel Speed 2 | 8 mph (12.2 kph) |
| Amplitude stage 6 - front | - |
| Centrifugal force 6 - front | - |
| Amplitude stage 1 - front | 0 inches (0.89 mm) |
| Amplitude stage 6 - rear | - |
| Amplitude stage 7 - front | - |
| Linear Drum Load - Front | - |
| Drive To Drums | Both |
| Amplitude stage 8 - front | - |
| Centrifugal force 6 - rear | - |
| Max. Travel Speed | 8 mph (12.2 kph) |
| Amplitude stage 7 - rear | - |
| Centrifugal force 7 - rear | - |
| Travel Speed 5 | - |
| Drum Oscillation | - |
| Travel Speed 3 | - |
| Centrifugal force 8 - rear | - |
| Travel Speed 1 | 5 mph (7.8 kph) |
| Amplitude stage 8 - rear | - |
| Linear Drum Load - Rear | - |
DIMENSIONS
| Height - Without ROPS | - |
| Drum Width - Front | 79 inches (2000 mm) |
| Drum Shell Thickness | 1 inches (20 mm) |
| Rolling Width | - |
| Drum Width - Rear | 79 inches (2000 mm) |
| Drum Diameter - Rear | 55 inches (1400 mm) |
| Overall Length | 235 inches (5973 mm) |
| Overall Width | 87 inches (2218 mm) |
| Drum Diameter - Front | 55 inches (1400 mm) |
| Turning Radius - Inside | 149 inches (3772 mm) |
| Wheelbase | 140 inches (3550 mm) |
| Turning Radius - Outside | - |
| Ground Clearance | 20 inches (505 mm) |
| Height - With ROPS | 125 inches (3177 mm) |
DRIVELINE
| Engine Output | 148 hp (110 kW) |
| Transmission | Hydrostatic |
| Rated Speed | 2,200 |
| Engine model | D4 |
| Exhaust Gas Recirculation | Yes |
| Selective Catalytic Reduction | Yes |
| Diesel Oxidation Catalyst | - |
| Emission Rating | - |
| Diesel Particulate Filter | Yes |
| Specific Fuel Consumption @ Rated Power | - |
| Displacement | - |
| Engine manufacturer | Volvo |
| Engine manufacturer | Volvo |
CAPACITIES
| Fuel Tank | 53 gallons (US) (199.8 ltr) |
| DEF Tank | 5 gallons (US) (20 ltr) |
| Tank Capacity For Drum | 338 gallons (US) (1280 ltr) |
WEIGHTS
| Weight - Front | 14,735 lbs (6684 kg) |
| Operating Weight | 27,700 lbs (12565 kg) |
| Weight - Rear | 12,965 lbs (5881 kg) |
DESCRIPTION
| Telematics Available | Yes |
| Platform | CareTrack |
