Compactors

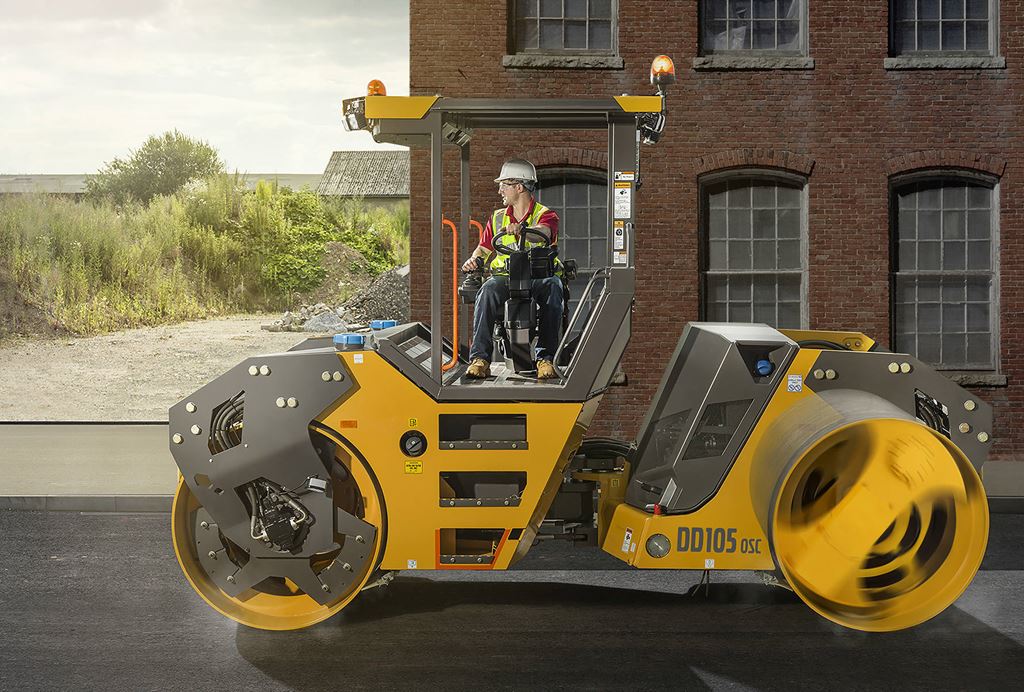

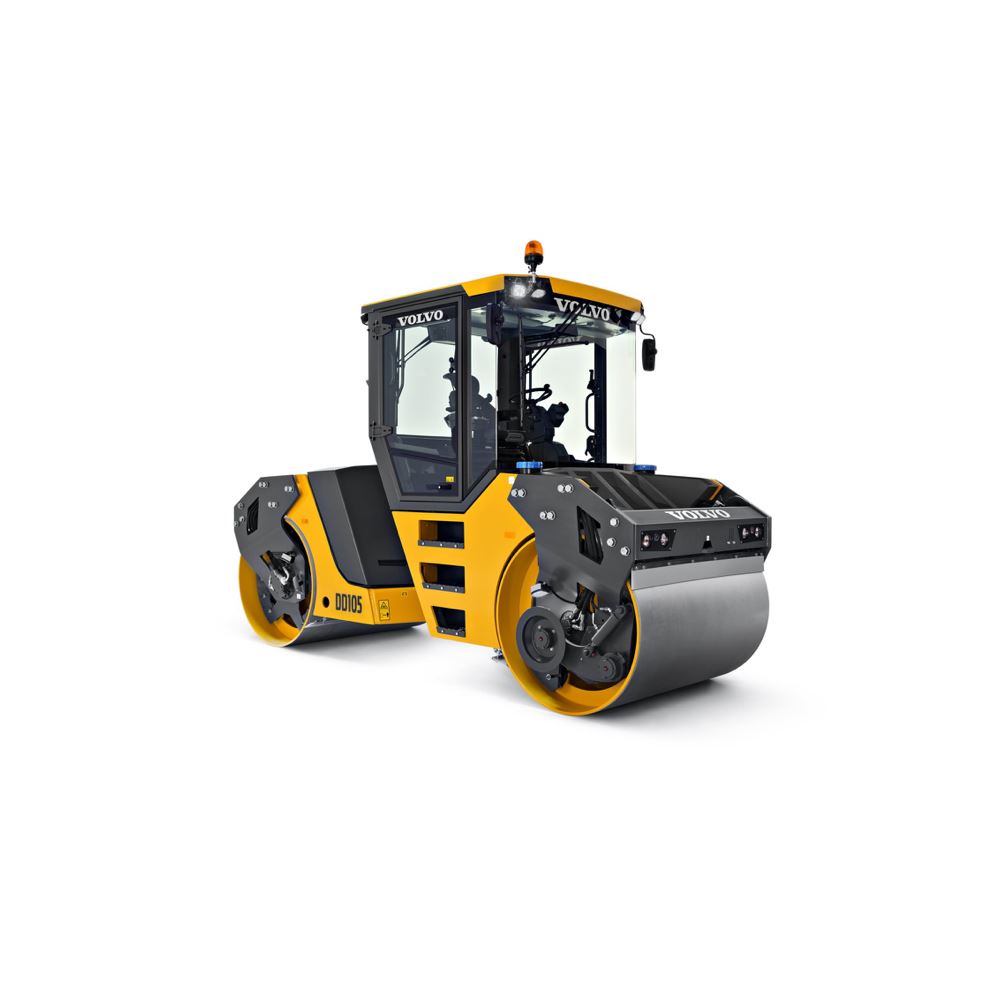

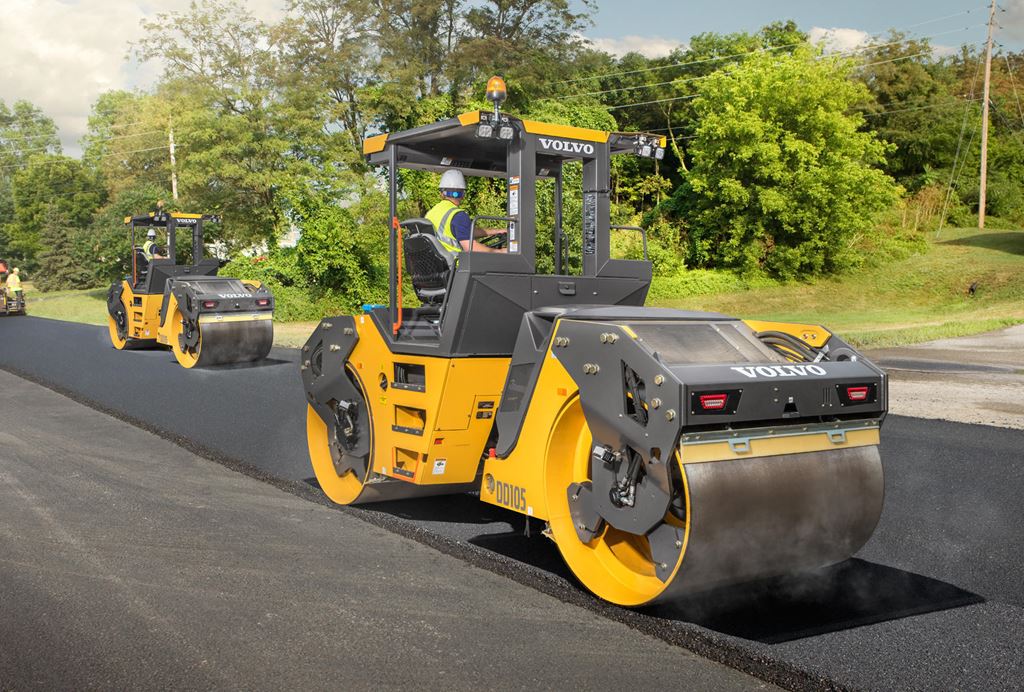

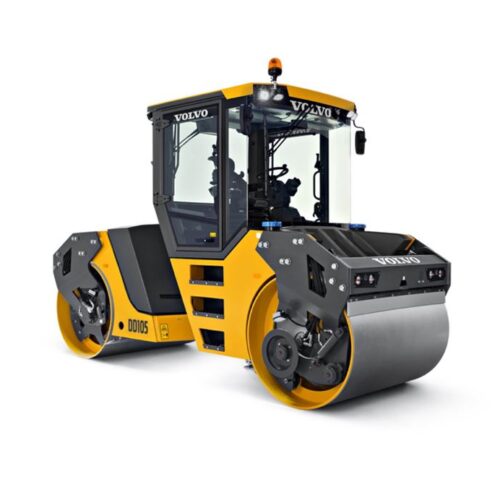

Volvo DD105OSC
Complete with new oscillation technology, the DD105 OSC has the ability to effectively compact in delicate areas, such as on bridges, over pipes and close to residential areas.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output | 114 hp (85 kW) |
| Emission Rating | - |
| Diesel Particulate Filter | - |
| Diesel Oxidation Catalyst | - |
| Selective Catalytic Reduction | Yes |
| Exhaust Gas Recirculation | - |
| Specific Fuel Consumption @ Rated Power | - |
| Displacement | 232 Inches³ (3.8 ltr) |
| Engine model | D3.8 |
| Rated Speed | 2,600 |
| Transmission | Hydrostatic |
| Engine manufacturer | Volvo |
| Engine manufacturer | Volvo |
DIMENSIONS
| Drum Width - Front | 66 inches (1680 mm) |
| Overall Length | 183 inches (4650 mm) |
| Overall Width | 72 inches (1838 mm) |
| Drum Diameter - Front | 48 inches (1220 mm) |
| Turning Radius - Inside | 181 inches (4600 mm) |
| Wheelbase | 135 inches (3430 mm) |
| Turning Radius - Outside | - |
| Drum Diameter - Rear | 48 inches (1220 mm) |
| Drum Width - Rear | 66 inches (1680 mm) |
| Ground Clearance | 14 inches (350 mm) |
| Rolling Width | 66 inches (1680 mm) |
| Height - With ROPS | 118 inches (2999 mm) |
| Drum Shell Thickness | 1 inches (22 mm) |
| Height - Without ROPS | - |
WEIGHTS
| Operating Weight | 21,718 lbs (9851 kg) |
| Weight - Rear | 10,421 lbs (4727 kg) |
| Weight - Front | 11,296 lbs (5124 kg) |
PERFORMANCE
| Travel Speed 5 | - |
| Centrifugal force 7 - rear | - |
| Drum Oscillation | Rear |
| Travel Speed 3 | - |
| Amplitude stage 7 - rear | - |
| Max. Travel Speed | 7 mph (11.4 kph) |
| Centrifugal force 6 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 8 - rear | - |
| Drive To Drums | Both |
| Linear Drum Load - Front | - |
| Amplitude stage 7 - front | - |
| Amplitude stage 6 - rear | - |
| Amplitude stage 1 - front | 0 inches (0.86 mm) |
| Centrifugal force 6 - front | - |
| Amplitude stage 6 - front | - |
| Travel Speed 1 | 3 mph (5.2 kph) |
| Travel Speed 2 | 7 mph (11.4 kph) |
| Frequency - stage 1 - front | 40 |
| Travel Speed 6 | - |
| Travel Speed 4 | - |
| Centrifugal force 8 - front | - |
| Amplitude stage 8 - rear | - |
| Linear Drum Load - Rear | - |
| Number of Frequency/Amplitude Settings | - |
| Centrifugal force 7 - front | - |
CAPACITIES
| Tank Capacity For Drum | 211 gallons (US) (800 ltr) |
| DEF Tank | 6 gallons (US) (20 ltr) |
| Fuel Tank | 46 gallons (US) (175 ltr) |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
