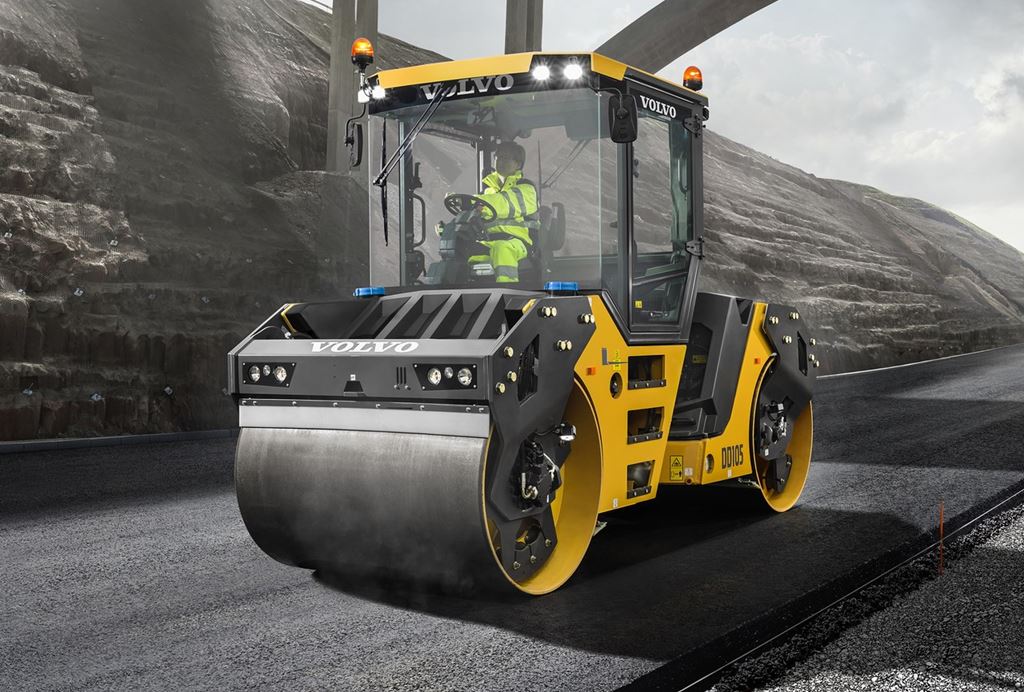

Volvo DD105
The industry-leading Volvo DD105 double drum compactor is primed with a range of features to ensure high-performance and efficient compaction. Unobstructed drum visibility combined with intelligent features help the operator achieve precise compaction with a smooth and consistent finish regardless of site conditions.
Downloads
Features and Benefits
Volvo DD105 Compactor - COMPACTION YOU CAN COUNT ON
Volvo 3.8-liter Tier 4 Final Engine.
Auto-idle and ECO mode to further cut fuel consumption by up to 30 percent
Clear view of drum edges for compacting around curbs
8-Amplitude Option
Volvo Intelligent Compaction (IC) and Volvo IC with Density Direct Options
Industry-Best Drum Wetting System
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal force 7 - front | - |
| Number of Frequency/Amplitude Settings | 2 |
| Linear Drum Load - Rear | - |
| Amplitude stage 8 - rear | - |
| Centrifugal force 8 - front | - |
| Travel Speed 6 | - |
| Frequency - stage 1 - front | 40 |
| Travel Speed 2 | 7 mph (11.4 kph) |
| Travel Speed 1 | 3 mph (5.2 kph) |
| Amplitude stage 6 - front | - |
| Centrifugal force 6 - front | - |
| Amplitude stage 6 - rear | - |
| Amplitude stage 7 - front | - |
| Drive To Drums | Both |
| Centrifugal force 8 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 6 - rear | - |
| Amplitude stage 7 - rear | - |
| Travel Speed 3 | - |
| Drum Oscillation | - |
| Travel Speed 5 | - |
| Centrifugal force 7 - rear | - |
| Max. Travel Speed | 7 mph (11.4 kph) |
| Linear Drum Load - Front | - |
| Amplitude stage 1 - front | 0 inches (0.86 mm) |
| Travel Speed 4 | - |
DIMENSIONS
| Height - Without ROPS | - |
| Drum Width - Front | 66 inches (1680 mm) |
| Drum Width - Rear | 66 inches (1680 mm) |
| Drum Diameter - Rear | 48 inches (1220 mm) |
| Turning Radius - Outside | - |
| Wheelbase | 135 inches (3430 mm) |
| Turning Radius - Inside | 181 inches (4600 mm) |
| Drum Diameter - Front | 48 inches (1220 mm) |
| Overall Length | 183 inches (4650 mm) |
| Overall Width | 72 inches (1838 mm) |
| Ground Clearance | 14 inches (350 mm) |
| Rolling Width | 72 inches (1830 mm) |
| Height - With ROPS | 118 inches (2999 mm) |
| Drum Shell Thickness | 1 inches (22 mm) |
DRIVELINE
| Engine Output | 114 hp (85 kW) |
| Specific Fuel Consumption @ Rated Power | - |
| Exhaust Gas Recirculation | - |
| Selective Catalytic Reduction | Yes |
| Diesel Particulate Filter | - |
| Emission Rating | - |
| Diesel Oxidation Catalyst | - |
| Displacement | 232 Inches³ (3.8 ltr) |
| Engine model | D3.8 |
| Rated Speed | 2,600 |
| Transmission | Hydrostatic |
| Engine manufacturer | Volvo |
| Engine manufacturer | Volvo |
DESCRIPTION
| Telematics Available | Yes |
| Platform | CareTrack |
WEIGHTS
| Operating Weight | 22,051 lbs (10000 kg) |
| Weight - Rear | 10,915 lbs (4950 kg) |
| Weight - Front | 11,136 lbs (5050 kg) |
CAPACITIES
| DEF Tank | 5 gallons (US) (20 ltr) |
| Tank Capacity For Drum | 211 gallons (US) (800 ltr) |
| Fuel Tank | 46 gallons (US) (175 ltr) |
