Compactors
Volvo DD 25 B
The Volvo DD25B asphalt roller is a highly efficient machine designed to deliver precise results. Featuring Volvos high frequency compaction, the DD25B compactor can travel faster while still maintaining the correct impact spacing necessary for high productivity and a smooth finish.
Downloads
Features and Benefits
Volvo DD 25 B Compactor - MAINTAIN YOUR PRODUCTIVITY
360° visibility

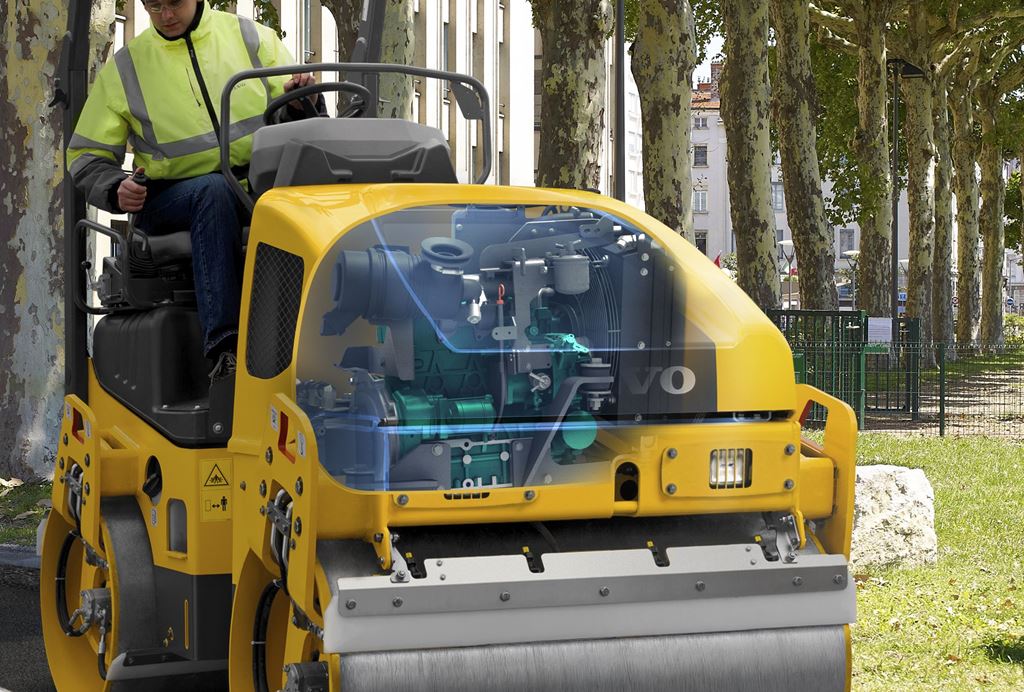

Easy-access engine compartment

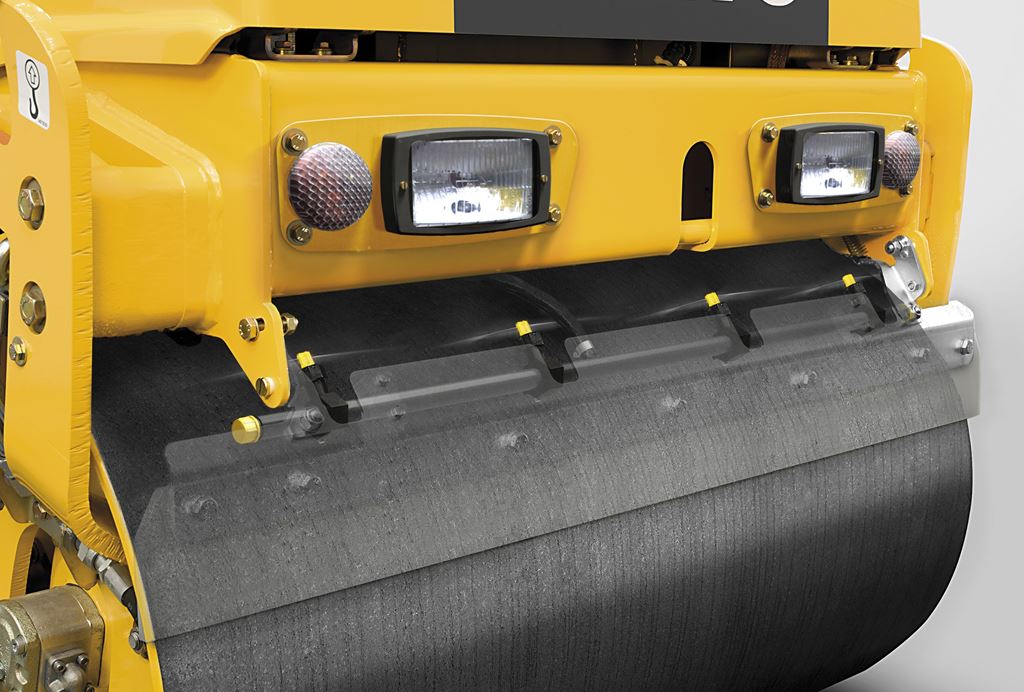

Rust-proof, pressurized water system provides consistent flow to the drum surfaces Volvo D3 Tier 4 Final engine delivers high performance without an exhaust after-treatment system and a 7% reduction in fuel consumption.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Centrifugal force 7 - front | - |
| Number of Frequency/Amplitude Settings | 2 |
| Amplitude stage 8 - rear | - |
| Centrifugal force 8 - front | - |
| Travel Speed 4 | - |
| Travel Speed 6 | - |
| Frequency - stage 1 - front | 67 |
| Travel Speed 2 | - |
| Amplitude stage 6 - front | - |
| Centrifugal force 6 - front | - |
| Amplitude stage 1 - front | 0 inches (0.54 mm) |
| Amplitude stage 6 - rear | - |
| Amplitude stage 7 - front | - |
| Drive To Drums | Both |
| Centrifugal force 8 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 6 - rear | - |
| Max. Travel Speed | 6 mph (10.3 kph) |
| Amplitude stage 7 - rear | - |
| Travel Speed 3 | - |
| Drum Oscillation | - |
| Travel Speed 5 | - |
| Centrifugal force 7 - rear | - |
| Linear Drum Load - Front | - |
| Travel Speed 1 | 6 mph (10.3 kph) |
| Linear Drum Load - Rear | - |
DIMENSIONS
| Height - Without ROPS | 74 inches (1870 mm) |
| Drum Width - Front | 39 inches (1000 mm) |
| Drum Shell Thickness | 1 inches (13 mm) |
| Height - With ROPS | 116 inches (2955 mm) |
| Ground Clearance | - |
| Drum Width - Rear | 39 inches (1000 mm) |
| Drum Diameter - Rear | 28 inches (700 mm) |
| Drum Diameter - Front | 28 inches (700 mm) |
| Overall Width | 43 inches (1090 mm) |
| Overall Length | 95 inches (2420 mm) |
| Turning Radius - Inside | - |
| Wheelbase | 68 inches (1720 mm) |
| Turning Radius - Outside | - |
| Rolling Width | 39 inches (1000 mm) |
DRIVELINE
| Engine Output | 25 hp (18.4 kW) |
| Engine manufacturer | Volvo |
| Engine manufacturer | Volvo |
| Rated Speed | 2,200 |
| Displacement | 104 Inches³ (1.7 ltr) |
| Specific Fuel Consumption @ Rated Power | - |
| Exhaust Gas Recirculation | - |
| Selective Catalytic Reduction | - |
| Diesel Oxidation Catalyst | - |
| Diesel Particulate Filter | - |
| Engine model | D 2 A |
| Transmission | Hydrostatic |
WEIGHTS
| Weight - Front | 2,670 lbs (1211 kg) |
| Operating Weight | 5,545 lbs (2515 kg) |
| Weight - Rear | 2,875 lbs (1304 kg) |
DESCRIPTION
| Platform | - |
| Telematics Available | - |
CAPACITIES
| DEF Tank | - |
| Tank Capacity For Drum | 69 gallons (US) (260 ltr) |
| Fuel Tank | 11 gallons (US) (40 ltr) |
