Compactors

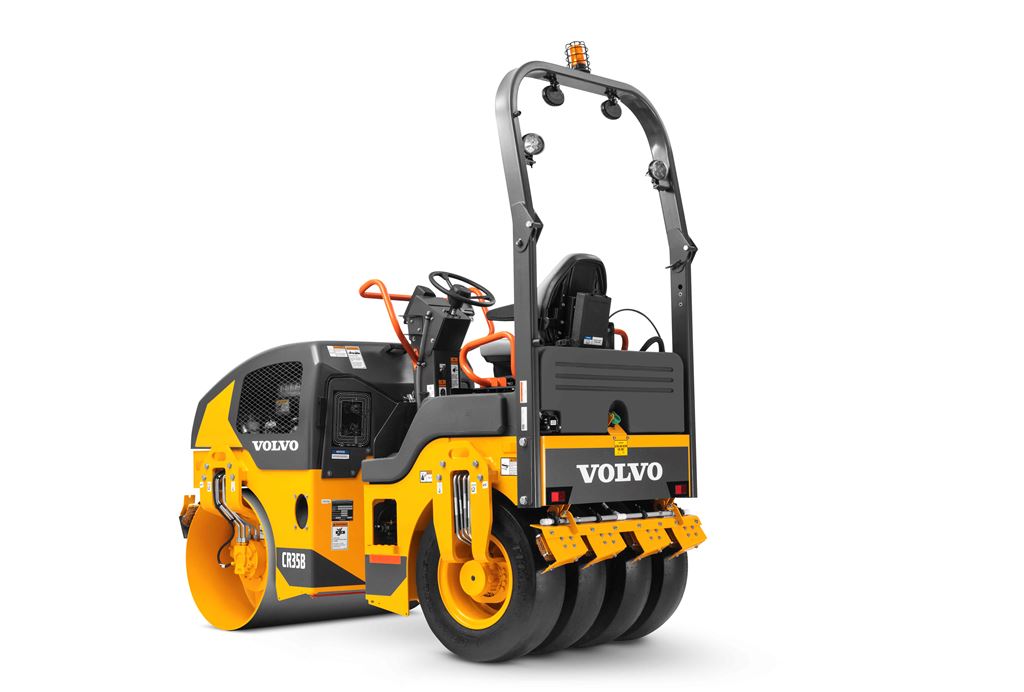

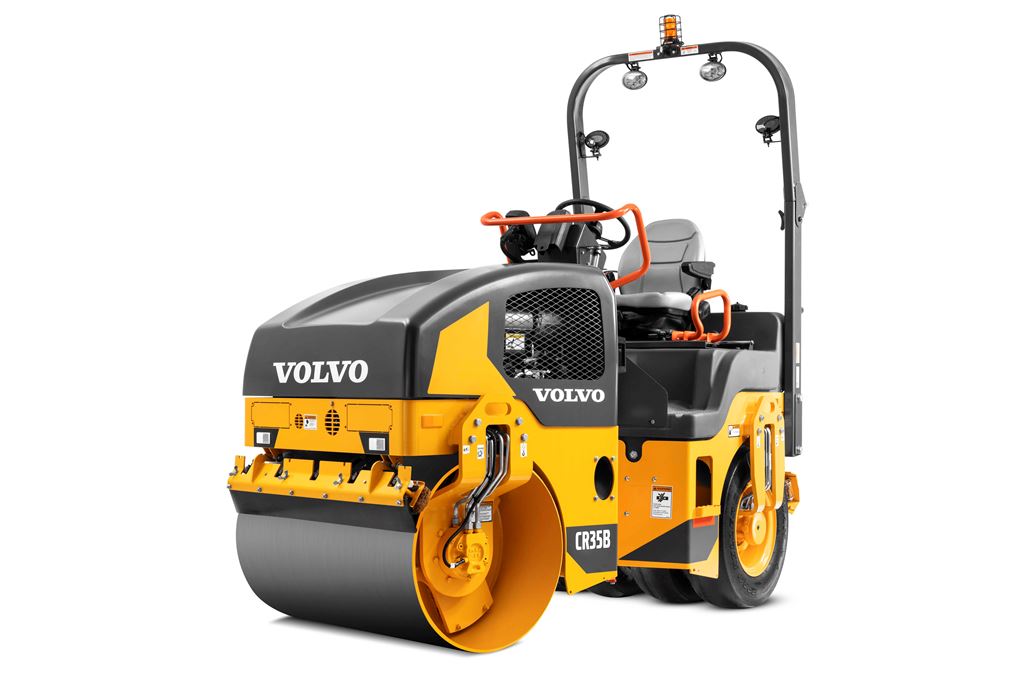

Volvo CR35B
Introducing the CR35B Combination roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Downloads
Features and Benefits
Volvo CR35B Compactor - MAINTAIN YOUR PRODUCTIVITY
ActiveCare Direct
Fast cycle times
Easy Service Access
Comfort Cab
Outstanding Fuel Efficiency
Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine rated power | 50 hp (37 kW) |
| Diesel Oxidation Catalyst | Yes |
| Displacement | 111 Inches³ (1.826 ltr) |
| Diesel Particulate Filter | - |
| Rated speed | 2,700 |
| Number of tires | 4 |
| Selective Catalytic Reduction | - |
| Engine model | D 1,803 - CR-TE4B |
| Engine manufacturer | Kubota |
| Engine manufacturer | Kubota |
| Exhaust Gas Recirculation | - |
| Tire Size | 191 - 381 |
| Steering type | Articulated |
| Emission rating | - |
PERFORMANCE
| Amplitude stage 1 - front | 0 inches (0.37 mm) |
| Amplitude stage 5 - front | - |
| Amplitude stage 4 - front | - |
| Oscillation Amplitude | - |
| Centrifugal force 1 - rear (max) | - |
| Linear drum load - front | - |
| Oscillation Force | - |
| Travel speed 3 | - |
| Travel speed 2 | - |
| Centrifugal force 5 - front | - |
| Travel speed 1 | 7 mph (11.8 kph) |
| Centrifugal force 4 - front | - |
| Frequency - stage 1 - front | 69 |
| Centrifugal force 1 - front | 8,050 lbf (35.8 kN) |
| Linear drum load - rear | - |
| Oscillation Frequency | - |
DIMENSIONS
| Drum width - front | 52 inches (1320 mm) |
| Width over Tyres | 4 ft 3 in ft/in (1300 mm) |
| Drum shell thickness | 1 inches (14 mm) |
| Rolling width | - |
| Height over ROPS | 101 inches (2567 mm) |
| Ground clearance | 7 inches (185 mm) |
| Overall length | 103 inches (2614 mm) |
| Turn radius - inside | 102 inches (2587 mm) |
| Turn radius - outside | - |
| Wheelbase | 69 inches (1742 mm) |
| Height without ROPS | - |
| Overall width | 51 inches (1300 mm) |
WEIGHTS
| Operating weight | 6,515 lbs (2961 kg) |
| Weight on front | 3,340 lbs (1518 kg) |
| Weight on rear | 3,175 lbs (1443 kg) |
CAPACITIES
| Fuel tank capacity | 17 gallons (US) (66 ltr) |
| DEF Tank | - |
