Compactors

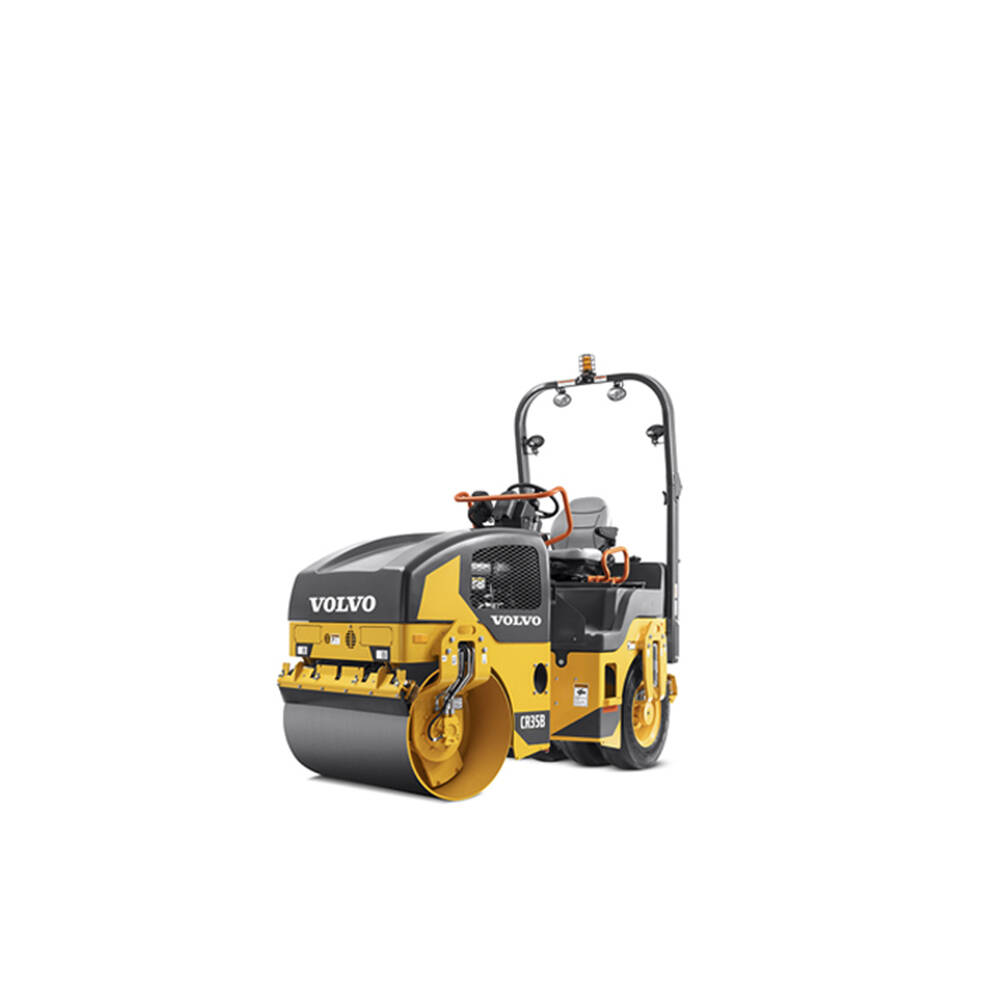

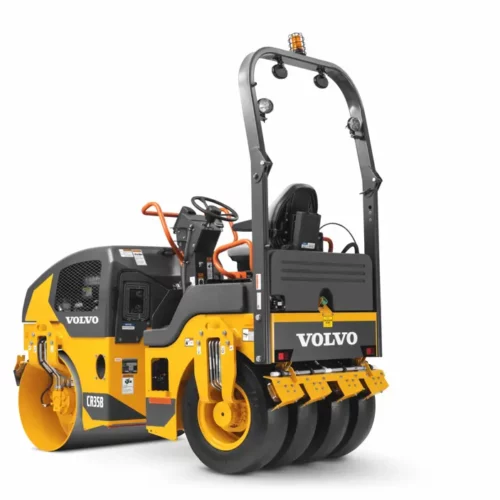

Volvo CR35B
The CR35B Combination roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Purchase this machine
Reach out to our team to learn more.
Rent this machine
Get a free rental quote.
Downloads
Features and Benefits
Volvo CR35B Compactor - MAINTAIN YOUR PRODUCTIVITY
- High Productivity
- Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Driveline
| Engine Manufacturer | Kubota |
| Engine Model | D 1,803 - CR-TE4B |
| Diesel Oxidation Catalyst | Yes |
| Displacement | 111 Inches³ (1.826 ltr) |
| Rated Speed | 2,700 rpm |
| Engine Rated Power | 50 hp (37 kW) |
| Steering Type | Articulated |
| Tire Size | 191 - 381 |
| Number Of Tires | 4 |
Dimensions
| Overall Length | 103 inches (2614 mm) |
| Height Over ROPS | 101 inches (2567 mm) |
| Overall Width | 51 inches (1300 mm) |
| Wheelbase | 69 inches (1742 mm) |
| Ground Clearance | 7 inches (185 mm) |
| Drum Width - Front | 52 inches (1320 mm) |
| Width Over Tyres | 4 ft 3 in (1300 mm) |
| Rolling Width | 52 inches (1320 mm) |
| Drum Shell Thickness | 1 inches (14 mm) |
| Turn Radius - Inside | 102 inches (2587 mm) |
Capacities
| Fuel Tank Capacity | 17 gallons (US) (66 ltr) |
Performance
| Travel Speed 1 | 7 mph (11.8 kph) |
| Frequency - Stage 1 - Front | 69 Hz |
| Amplitude Stage 1 - Front | 0 inches (0.37 mm) |
| Centrifugal Force 1 - Front | 8,050 lbf (35.8 kN) |
Weights
| Operating Weight | 6,515 lbs (2961 kg) |
| Weight On Front | 3,340 lbs (1518 kg) |
| Weight On Rear | 3,175 lbs (1443 kg) |
