Track Crushers

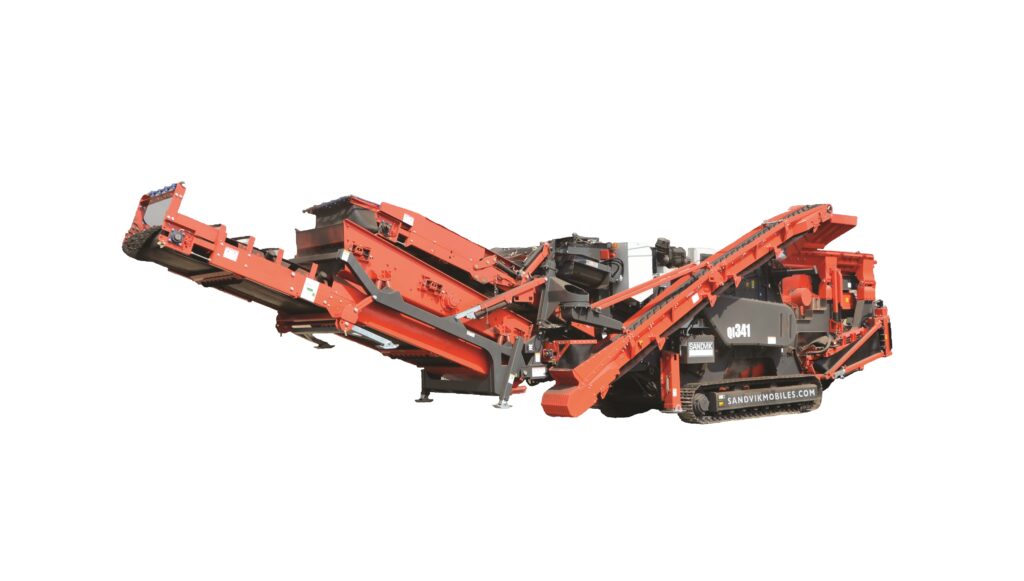

Sandvik QI341-HS
Sandvik QI341 mobile impact crusher is the most versatile and cost-effective mid-sized unit on the market. Fitted with the CI611 Prisec impactor, this unit can operate in both primary and secondary applications.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
Technical Data
| Equipment | Sandvik CI611 Prisec Impactor |
| Feed opening | 992 x 670 mm (39 x 26 ½ in.) |
| Maximum feed size | 600 mm (24 in.) |
| Capacity (up to) | 300 mtph (330 stph) |
| Engine | C9 / C9.3 Acert 261 kW (350 hp) |
| Transport length | 14 m (46 ft 2 in.) |
| Transport width | 3 m (8 ft 2 in.) |
| Transport height | 3 m (11 ft 2 in.) |
| Weight | 40,276 kg (88,793 lbs) |
| Transport length with HS | 17.02m (55 ft 9 in.) |
| Transport width with HS | 3 m (9 ft 8 in.) |
| Transport height with HS | 4 m (11 ft 5 in.) |
| Weight with HS | 44,978 kg (99,160 lbs) |
