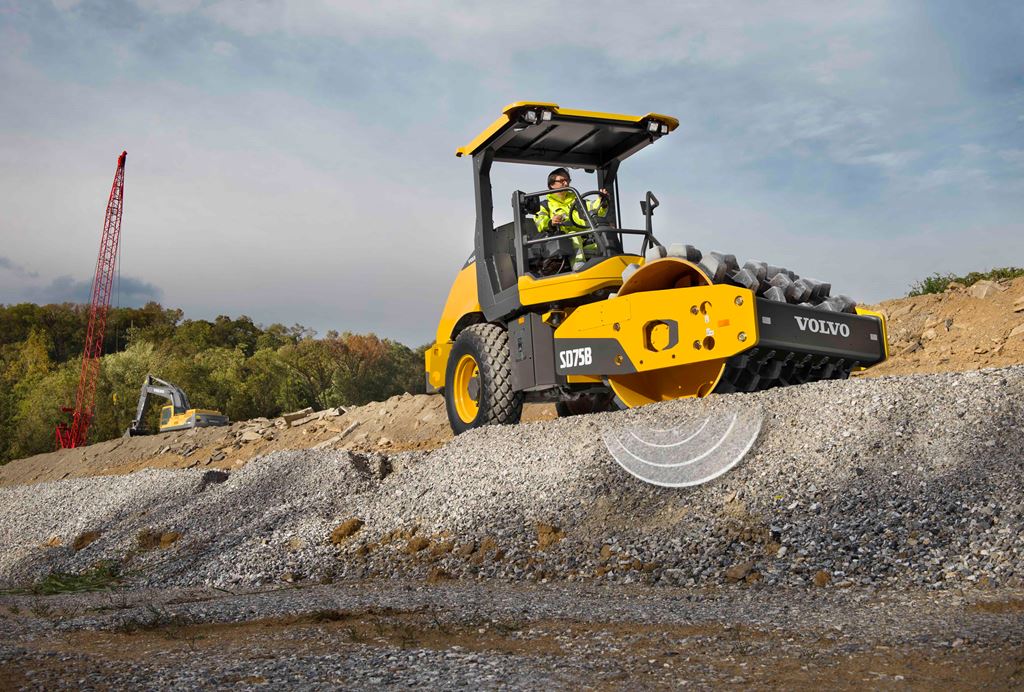

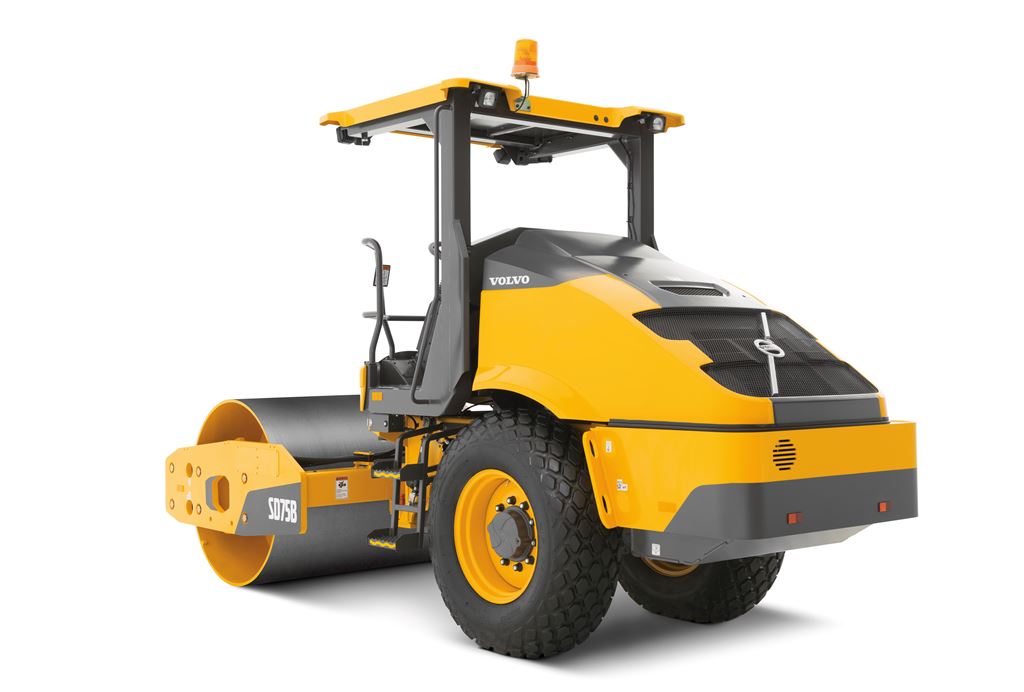

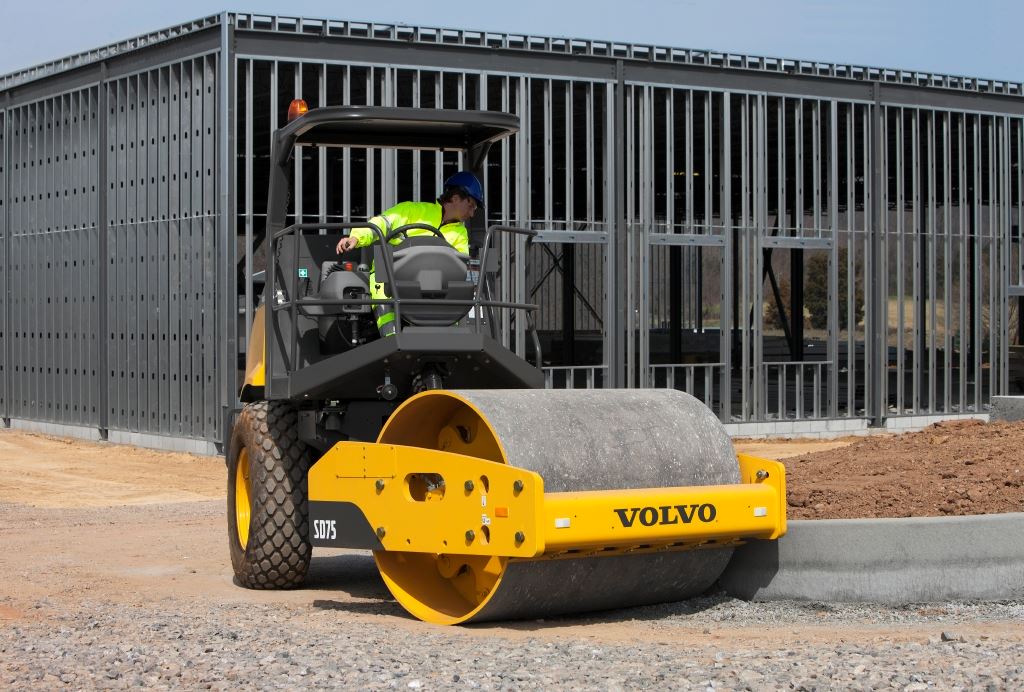

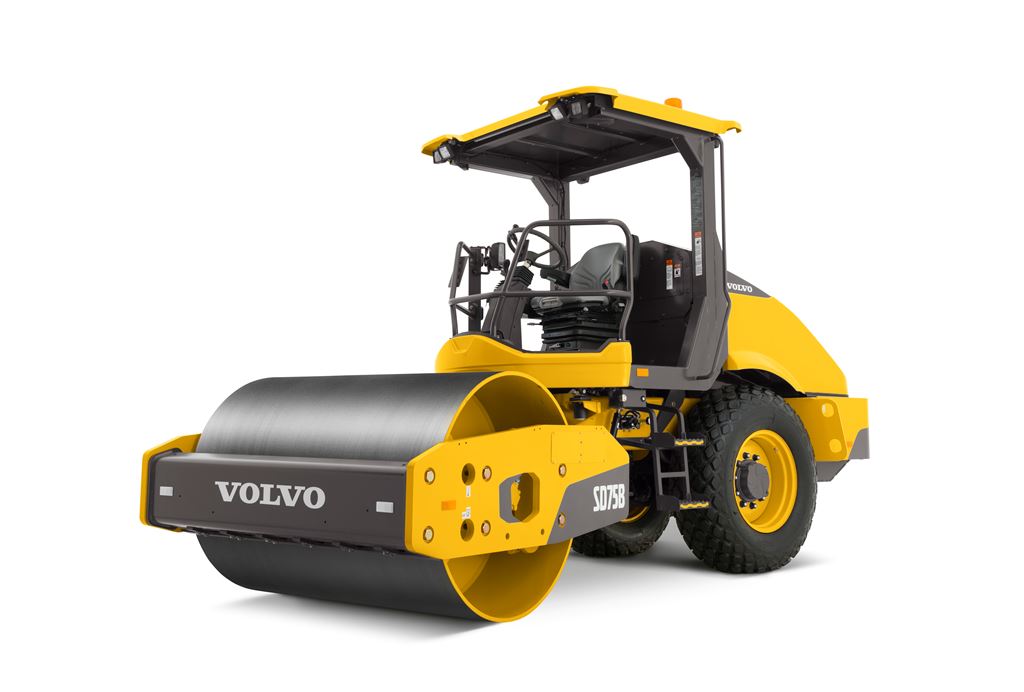

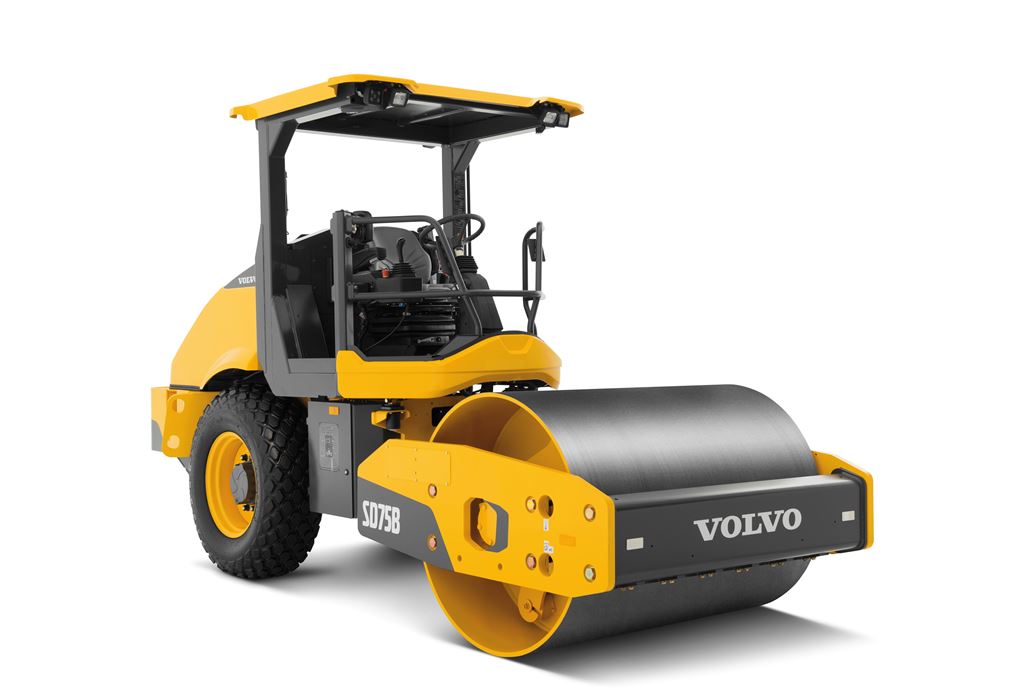

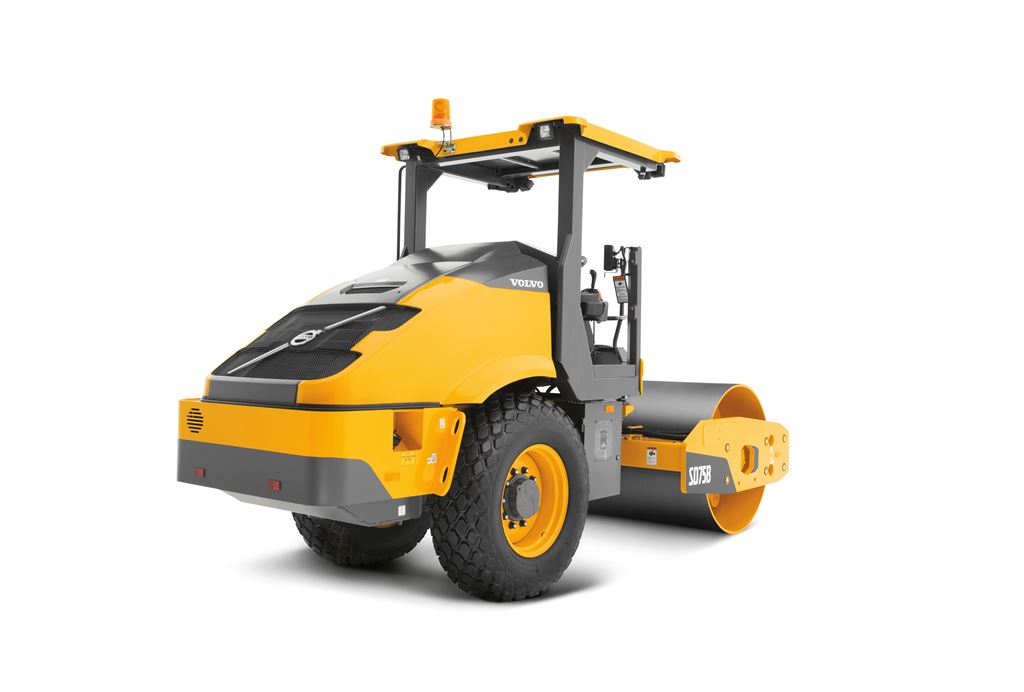

Volvo SD75B
The new SD75B soil compactor from Volvo is packed with advanced technology – the drum is configured with ease while the engine controls itself. The intelligent compactor adapts to your application and jobsite to provide maximum versatility and performance.
Downloads
Features and Benefits
Volvo SD75B Compactor - POWER UP, FUEL DOWN
Frequency and amplitude choices
Adaptive power
Application versatility
ECO Mode
Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DIMENSIONS
| Ground Clearance | - |
| Overhang - Right | 3 inches (77 mm) |
| Drum Diameter | 48 inches (1219 mm) |
| Height - Without ROPS | - |
| Drum Width | 66 inches (1676 mm) |
| Rolling Width | 66 inches (1676 mm) |
| Steering Angle | 38 |
| Height - With ROPS | 118 inches (2993 mm) |
| Overall Length | 199 inches (5044 mm) |
| Drum Shell Thickness | 1 inches (22 mm) |
| Overall Width | 72 inches (1830 mm) |
| Turning Radius - Inside | - |
| Overhang - Left | 3 inches (77 mm) |
| Wheelbase | 105 inches (2677 mm) |
PERFORMANCE
| Centrifugal Force - Stage 1 | 23,625 lbf (105 kN) |
| Drive To Drum / Wheel | Yes / Yes |
| Travel speed 4 | - |
| Amplitude - Stage 1 | 0 inches (1.49 mm) |
| Travel speed 2 | 8 mph (13 kph) |
| Battery Capacity | - |
| Alternator Output | - |
| Frequency - Stage 2 | 34 |
| Travel speed 3 | - |
| Linear Drum Load | - |
| Travel speed 1 | 5 mph (7.5 kph) |
| Gradeability - With Vibration | - |
| Number of Batteries | - |
| System Voltage | - |
| Travel speed 5 | - |
| Battery Voltage | - |
| Amplitude - Stage 2 | 0 inches (0.89 mm) |
| Frequency - Stage 1 | 31 |
DRIVELINE
| Rated Torque | - |
| Engine Rated Output | 74 hp (55.4 kW) |
| Diesel Particulate Filter | - |
| Charged Air Cooling | - |
| Exhaust Gas Recirculation | - |
| Steering | Articulation |
| Diesel Oxidation Catalyst | - |
| Rated Speed | 2,200 |
| Tire Size | 15 - 24 |
| Torque Rated Speed | - |
| Aspiration | - |
| Displacement | 232 Inches³ (3.8 ltr) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Selective Catalytic Reduction | - |
| Transmission | Hydrostatic |
| Engine Model | D3.8 |
CAPACITIES
| Engine Oil | - |
| Hydraulic Tank | - |
| Fuel Tank | 30 gallons (US) (115 ltr) |
| Engine Coolant | - |
| DEF Tank | - |
WEIGHTS
| Weight - Front | 8,499 lbs (3863 kg) |
| Operating Weight | 15,952 lbs (7251 kg) |
| Weight - Rear | 7,454 lbs (3388 kg) |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
