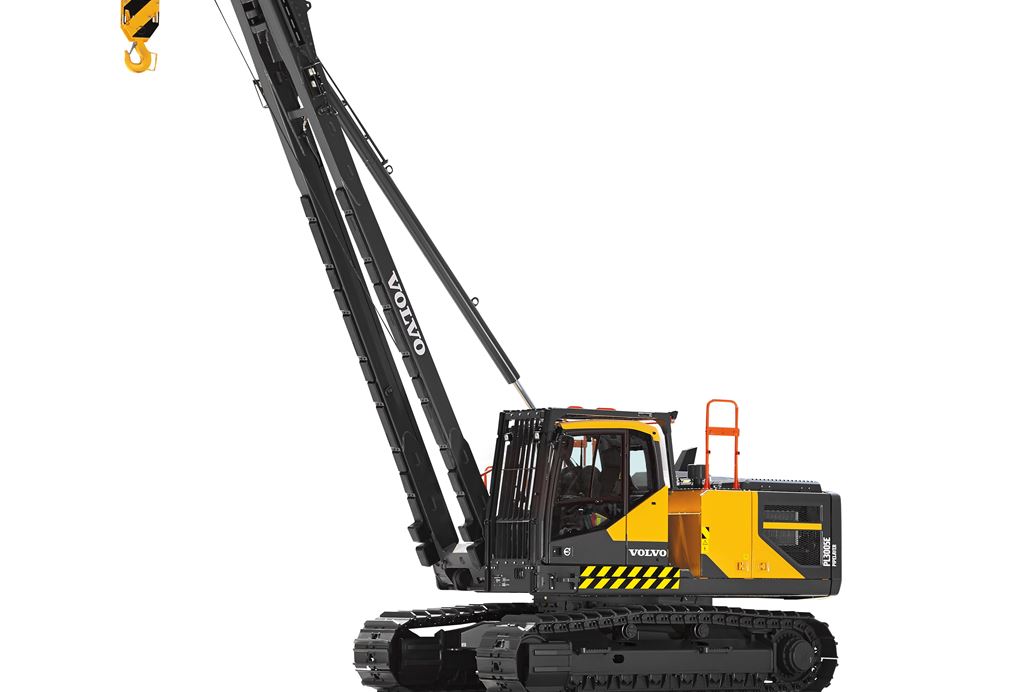

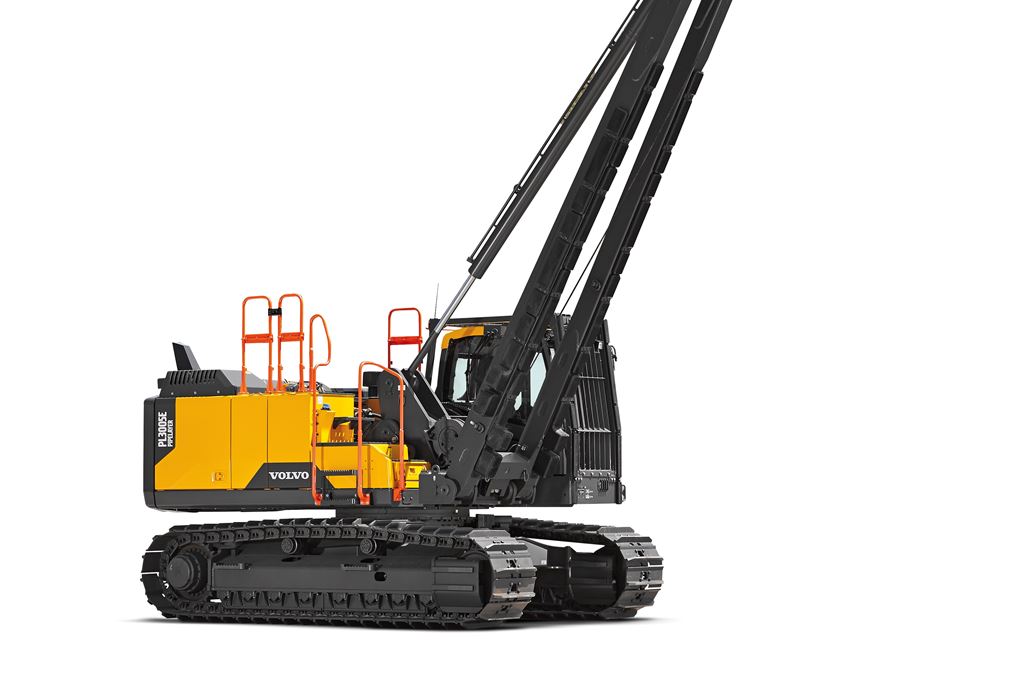

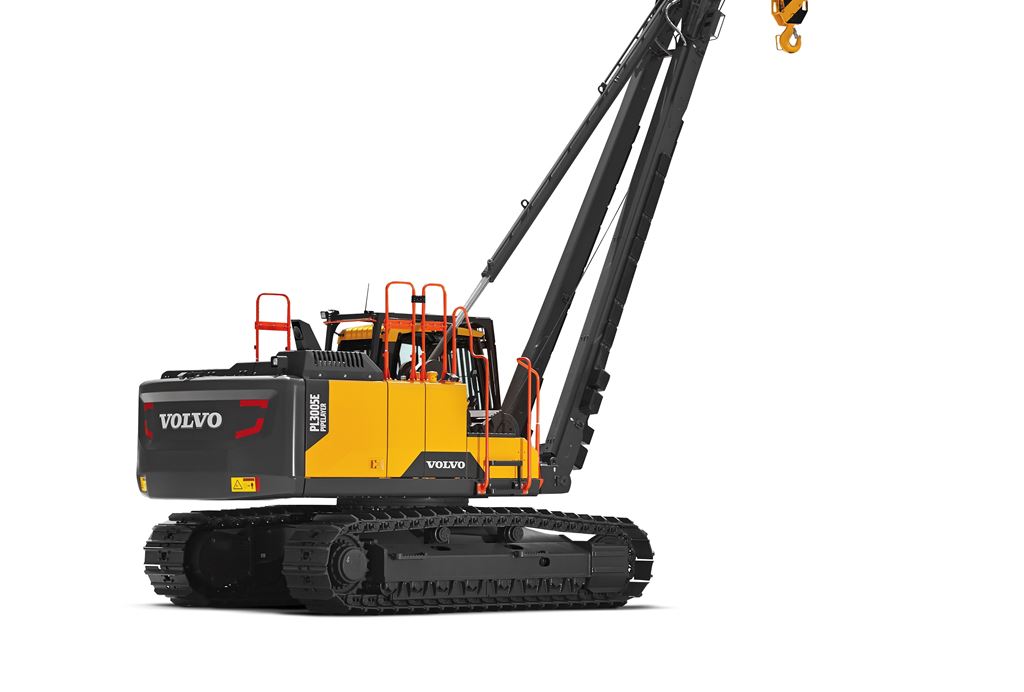

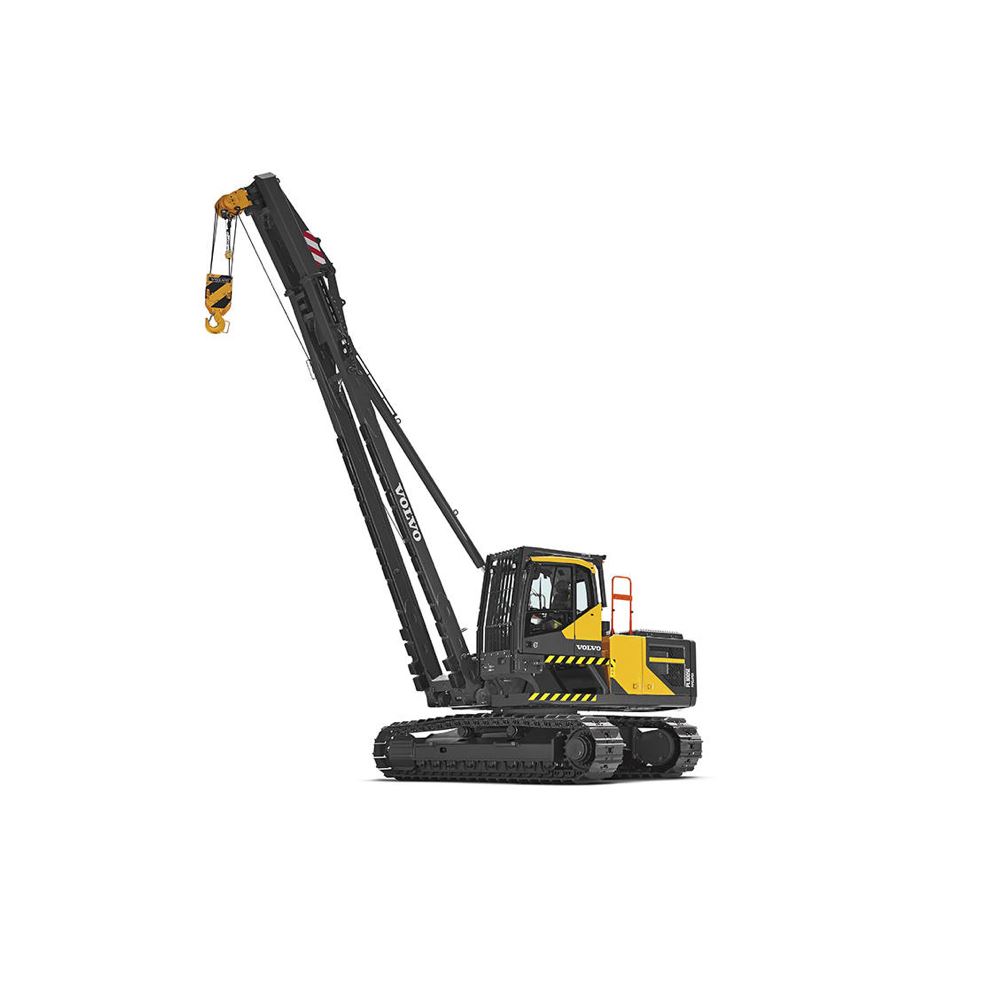

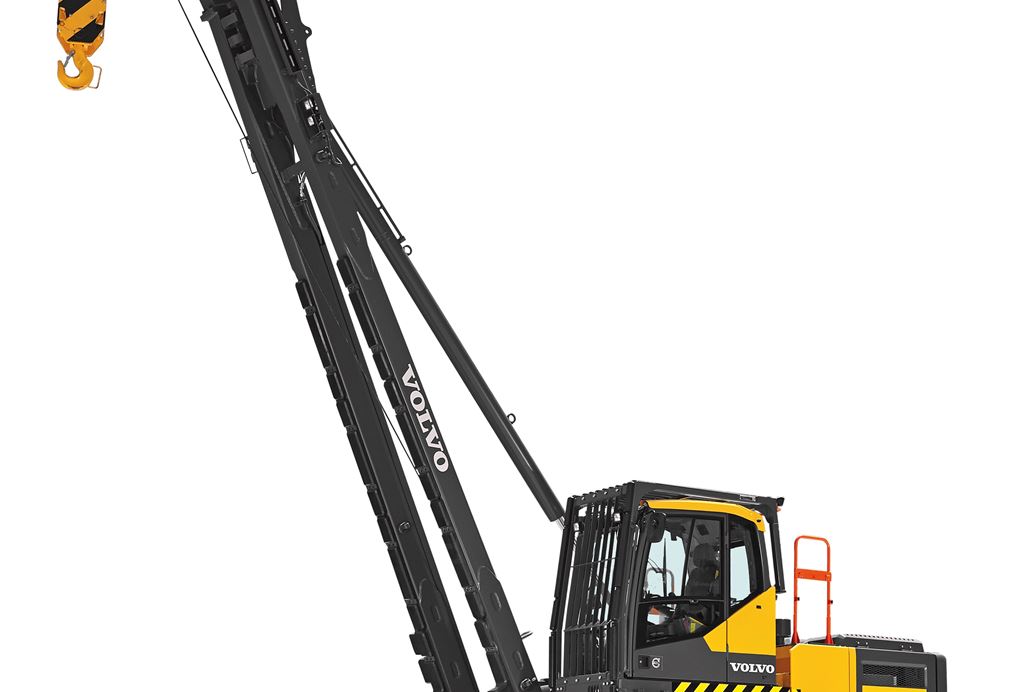

Volvo PL3005E
The PL3005E rotating pipelayer from Volvo delivers superior performance capabilities thanks to a clever, excavator-based design and high-tech features. Make every minute count in the versatile machine, delivering unbeatable maneuverability and stability for the ultimate performance and uptime.
Downloads
Features and Benefits

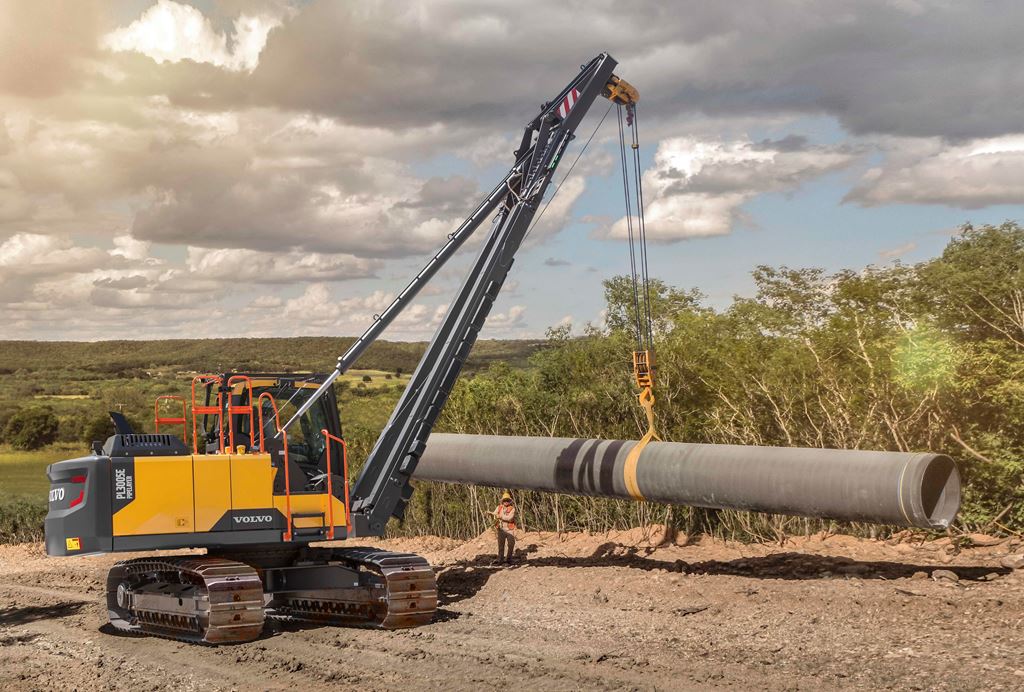

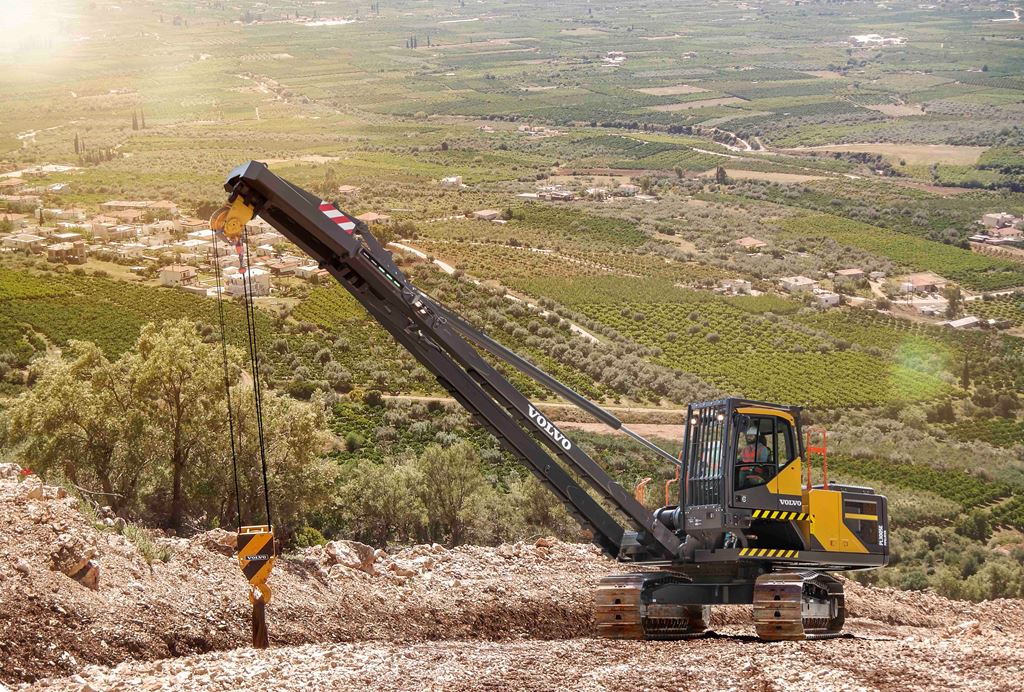

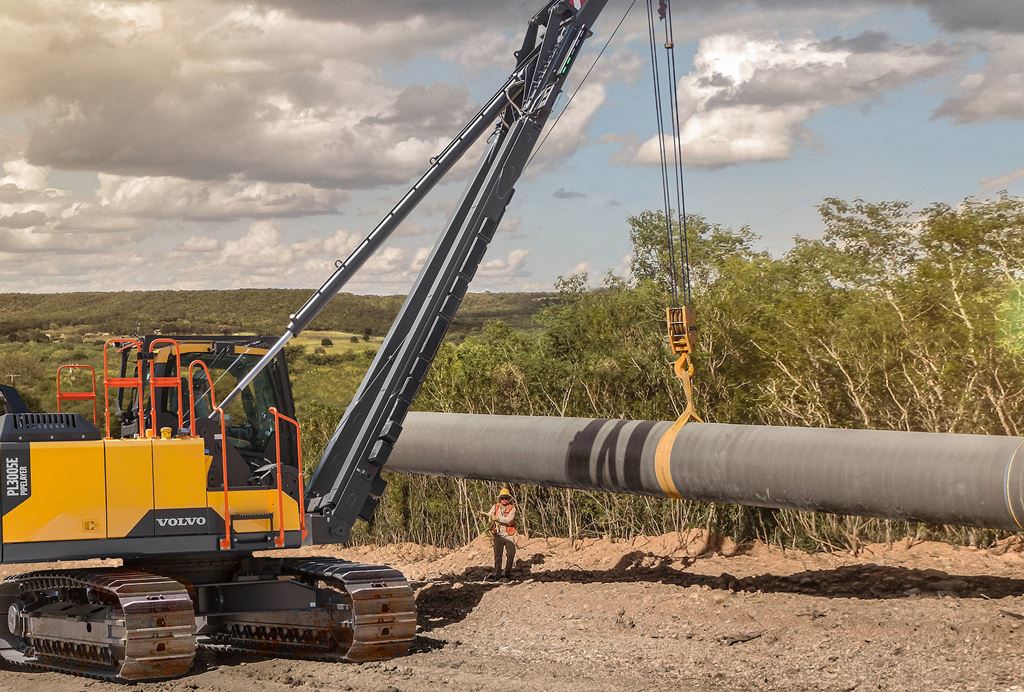

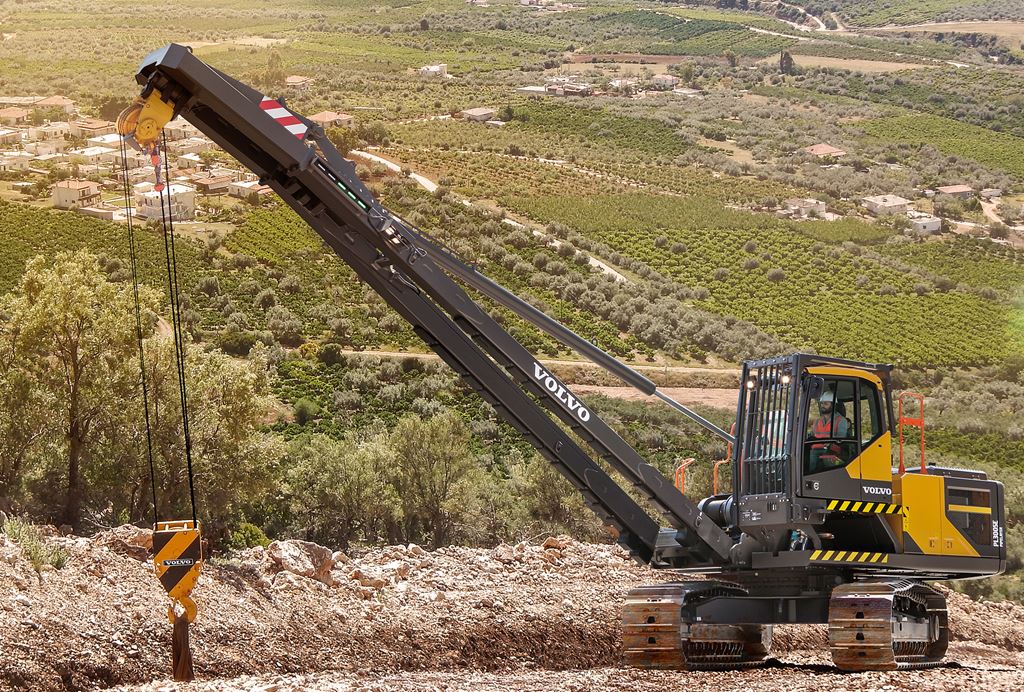

Volvo PL3005E Pipelayer - PRODUCTIVE, STABLE AND VERSATILE
ROPS safety cab
360 degree swing
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Torque | 913 lbf / ft (1238 Nm) |
| Aspiration | Turbocharged |
| Diesel Oxidation Catalyst | - |
| Selective Catalytic Reduction | Yes |
| Number Of Speeds - Forward | 2 |
| Steering Clutches & Brakes | - |
| Torque Rated Speed | 1,350 |
| Rated Speed | 1,800 |
| Exhaust Gas Recirculation | Yes |
| Engine Output - Net 1 | 240 hp (179 kW) |
| Charged Air Cooling | Intercooler |
| Engine Model | D 8 J |
| Diesel Particulate Filter | - |
| Raised Sprocket | No |
| Transmission Type | Hydrostatic |
| Track Shoe Width | 30 inches (750 mm) |
| Service Brake Type | - |
| Transmission Type | Hydraulic |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
DESCRIPTION
| Boom Type | Asymmetric |
| Platform | CareTrack |
| Security | Yes |
| Health Monitoring | Yes |
| Fleet Management | Yes |
| Telematics Available | Yes |
DIMENSIONS
| Cable Length - Hook Winch | 300 ft ft/in (92 m) |
| Overall Height - Boom Removed | 11 ft 3 in ft/in (3450 mm) |
| Overall Height | 11 ft 3 in ft/in (3450 mm) |
| Differential Steering | - |
| Boom Length | 24 ft 4 in ft/in (7400 mm) |
| Width - Weights Retracted | - |
| Overall Length | 40 ft 3 in ft/in (12260 mm) |
| Width - Weights Extended | - |
| Transport Width - Side Frames Removed | 11 ft ft/in (3352 mm) |
| Track Length On Ground | 13 ft ft/in (3970 mm) |
| Cable Size - Hook Winch | 1 inches (16 mm) |
| Ground Clearance | 23 inches (580 mm) |
WEIGHTS
| Operating Weight | 81,020 lbs (36750 kg) |
| Maximum Weight | 81,620 lbs (37020 kg) |
CAPACITIES
| After Treatment Fluid | - |
| Fuel Tank | 124 gallons (US) (470 ltr) |
PERFORMANCE
| Lift Capacity - Tipping | 120,000 lbs (55000 kg) |
| Maximum Operating Slope | - |
| Speed - Forward 1 | 3 mph (5.5 kph) |
| Load Capacity | 68,000 lbs (31000 kg) |
| Slew Speed | - |
| Ground Bearing Pressure | 8 PSI (55.6 kPa) |
